T1sl High-Performance Road
The lightest production titanium frame featuring highest stiffness-to-weight ratio of any titanium road-bike on the market.
Light makes right.
So say the climbers. The Billy goats. The grimpeurs. Where the air is thin, KOMs are your holy grail. If there’s one thing better than a buoyant ascent up a long climb, it’s being the first to attack the descent…solo.
There’s but one bike to take you to the top: the T1sl.
While the T1SL is Litespeed’s signature lightweight machine, it’s no one-trick pony. Adept at carving corners and holding speed on the flats, T1sl is a no-holds-barred race bike that happens to defy the scales, thanks to decades of our titanium expertise. And for the discerning cyclist, titanium still reigns supreme as the king of lightweight race bike capability. At 995 grams in size small, the T1sl remains the lightest production handmade titanium frame available on the market.
How we make a performance race bike this strong, this stiff, this comfortable and this light is what sets the T1sl apart from all others. It starts with an innovative top tube, handcrafted from a single sheet of aerospace-grade 6AL/4V titanium, shaped into a multi-faceted tapered tube that slashes weight while increasing torsional stiffness.

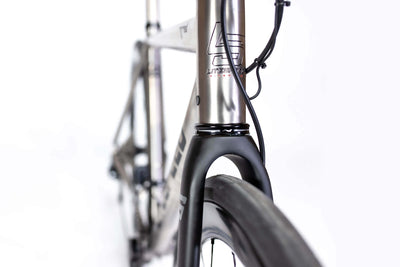

The bike stays race-day stiff with a pair of oversized, triple-butted asymmetric chainstays designed for unyielding power transfer. The downtube completes the package, oversized and bi-axially ovalized to provide optimal performance and stiffness. At the front, a beautifully engraved 44mm headtube delivers precision handling. With a PF30 bottom bracket, the S1ls compatible with nearly every crankset available. The T1sl accepts caliper brakes only.
To ensure every T1sl is built to precision tolerances that ensure the perfect ride in every size, each frame has size-specific tubesets, guaranteeing consistent performance, regardless if you’re a size XS or XL. We also use the highest-quality titanium available, with our cold-working making it even better. While our competition settles for softer, more easily-processed grades of titanium, we go above and beyond to deliver the most premium cycling-specific tubesets. That NASA comes to us for our materials choice advice is no mistake. And the result speaks for itself.
The finest lightweight race bike available is also fully customizable as well. Choose our standard decal presentation, our etched finish, even a custom paint upgrade. If you’re looking for a SRAM build, rack or fender mounts, or anything in between, we can accommodate nearly any request, whch may require additional costs and lead times. The options are endless; just call us to make the T1sl a true custom ride.
Curious how we stack up against other brands?
See Comparison Chart
Now offering Home.Delivery.Right delivery service!
See Shipping Options
*Bike will arrive with graphics that are chosen during the buying process.
-
The T1sl frame features semi-aggressive road geometry designed for riders who prefer a responsive race bike that also allows for an aerodynamic road position.
|
Size |
XS |
S |
M |
M/L |
L |
XL |
A |
Top Tube Length |
51.5 |
52.5 |
54.0 |
56.0 |
57.5 |
59.0 |
B |
Head Tube Angle |
72.0˚
|
72.5˚
|
73.0˚
|
73.0˚
|
73.0˚
|
73.0˚
|
C |
Seat Tube Angle |
74.5˚
|
74.0˚
|
73.5˚
|
73.0˚
|
73.0˚
|
73.0˚
|
D |
Seat Tube Length |
45.5 |
47.5 |
49.5 |
51.5 |
53.5 |
55.5 |
E |
Chainstay Length |
40.6 |
40.6 |
40.6 |
40.6 |
40.6 |
40.6 |
F |
BB Drop |
7.1 |
7.1 |
7.1 |
7.1 |
7.1 |
6.8 |
G |
Wheelbase |
96.1 |
96.6 |
97.0 |
98.6 |
99.8 |
101.6 |
H |
Front Center |
56.6 |
57.0 |
57.4 |
58.9 |
60.3 |
61.6 |
I |
Fork Rake |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
J |
Standover Height |
72.2 |
73.7 |
75.2 |
77.2 |
79.5 |
81.7 |
K |
Head Tube Length |
10.1 |
11.5 |
12.9 |
15.0 |
17.6 |
20.7 |
L |
Stack |
51.5 |
53.0 |
54.5 |
56.5 |
59.0 |
62.0 |
M |
Reach |
37.0 |
37.5 |
38.0 |
39.0 |
39.5 |
40.0 |
-
We pair each Litespeed frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce.
If you have any questions or would like to request custom component specifications, please contact us.
Ultegra 11 Spd
Headset |
Cane Creek 40 Series |
Stem |
FSA Energy |
Handlebar |
FSA Energy Compact |
Bar Tape |
Select Bar Tape Above |
Seatpost |
FSA SLK Carbon 20mm Offset |
Saddle |
Fizik Vento Argo R3 Kium |
Shifters |
Ultegra |
Front Derailleur |
Ultegra |
Rear Derailleur |
Ultegra |
Crankset |
Ultegra R8000 50/34 |
Cassette |
R7000 11-30 |
Chain |
Shimano HG701 |
Bottom Bracket |
Praxis |
Tires |
Continental Ultrasport3 25c Folding |
Wheelset |
Select Wheels Above |
Brakeset |
Ultegra |
Fork |
Litespeed Carbon Tapered Fork |
- |
|
- |
|
- |
|
Ultegra Di2 12 Spd
Headset |
Cane Creek 40 Series |
Stem |
FSA Energy |
Handlebar |
FSA Energy Compact |
Bar Tape |
Select Bar Tape Above |
Seatpost |
FSA SLK Carbon 20mm Offset |
Saddle |
Fizik Vento Argo R3 |
Shifters |
Ultegra Di2 8150 12 spd |
Front Derailleur |
Ultegra Di2 8150 12 spd |
Rear Derailleur |
Ultegra Di2 8150 12 spd |
Crankset |
Ultegra R8100 50/34 12 spd |
Cassette |
Ultegra R8100 11-30 12 spd |
Chain |
Shimano M8100 12 spd |
Bottom Bracket |
Praxis |
Tires |
Continental Ultrasport3 25c Folding |
Wheelset |
Select Wheels Above |
Brakeset |
Ultegra |
Fork |
Litespeed Carbon Tapered Fork |
- |
|
- |
|
- |
|
- |
|
-
There are no customer reviews yet.
-
Find answers to common questions about bike builds, custom component selections, and shipping. If you have any questions feel free to live-chat with us or contact us.
How long does it take to receive my bike?
Due to high demand, lead times vary per bike model, size, and build kit. For an accurate delivery estimate live-chat or contact us!
Can I make changes to the build kit?
Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!
Can I have a different length stem, crankarms, or different gearing?
We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Litespeed just live-chat or contact us and we'll get you started on a custom order.
Can you tell me more about the T47 BB Shell Option?
Click here to learn more about the T47 BB
How much does shipping cost?
UNITED STATES: Shipping for frame and frameset orders is $55 USD. For full bike orders shipping is $195 and includes professional assemble at our Litespeed factory and shipment in our Litespeed Pro Box so you don't have to assemble the bike when it arrives to your door. For technician delivery, check out our Home.Delivery.Right service. Click here for shipping options.
OUTSIDE OF USA: By going through the checkout process, you will be able to see the shipping charges associated with shipping to your country. We offer competitive shipping prices around the world, and even cover duty, VAT and import fees when shipping to Hong Kong, Singapore, Taiwan and Malaysia.
Does my bike arrive assembled?
For orders in the United States our bikes ship assembled in our Litespeed Pro Box. Adjust your bars then add the seatpost and front wheel and you're ready to ride. We also offer our technician delivery service, Home.Delivery.Right. Click here for shipping options.
Please note: all disc brake bikes are shipped with a leverless thru-axle. A 6mm allen wrench is needed for removal or installation of your front and rear wheels.
*Bikes ordered with custom geometry:
Our 30-day return policy does not apply to custom frame orders. If your order is cancelled for any reason, you will receive a 50% refund. Questions? Reach out to our team via LiveChat online or via email at info@litespeed.com and we'll be happy to help.
