Performance Gravel

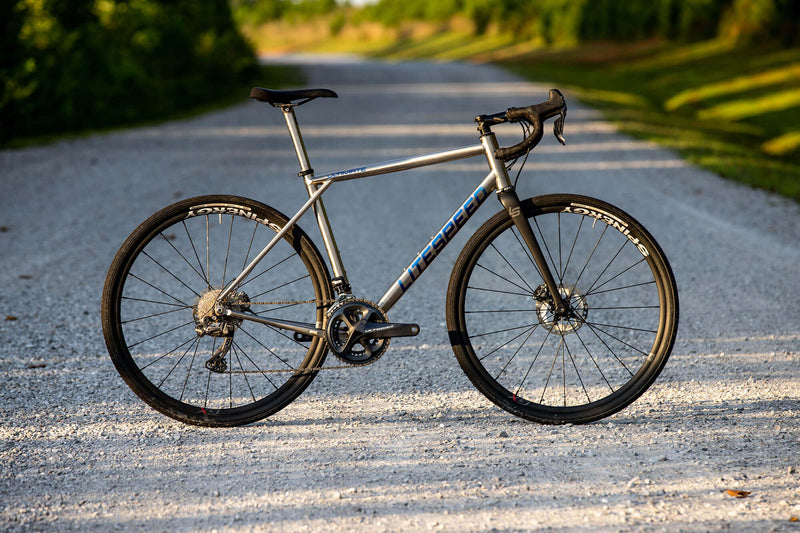

Ultimate G2 Frame

Read Reviews

Looking for the fastest, highest-performance machine for race day? This is it. More tire clearance. More handling perfection. More engineered performance advantage. This is the one that all others are measured against. Think fast—with the Ultimate G2.

$2,495

$3,095

Performance Gravel Design
Pro-Tier Aggressively-shaped 3AL/2.5v Titanium Tubing
Interlocked Dropped Seatstay
48mm Tire Clearance
Overview Features Geometry Gallery Reviews

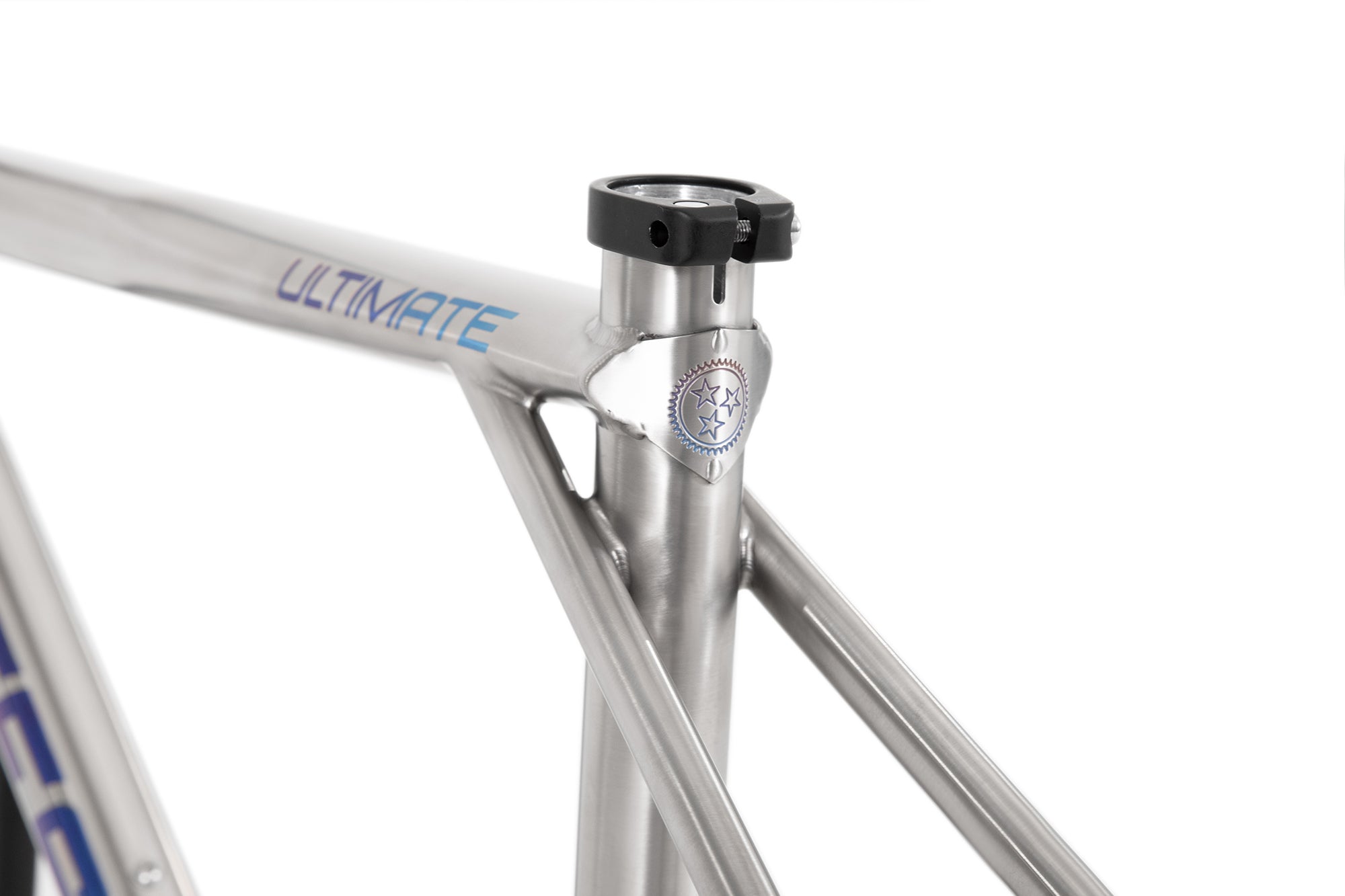

A Visual Signature: Interlock Dropped Seatstays


By vertically dropping and widening the stays—and extending them past the seat tube to the top tube—the Ultimate G2 has two independent stiffness-enhancing weld points, resulting in an infinitely more responsive rear triangle, with stiffer out-of-saddle acceleration. The design also makes for a shorter, more direct internal cable path while also providing increased tire clearance.

Pure Gravel Performance in Titanium


The Ultimate G2’s raison d’être is two-fold: performance advancement and increased tire size capability. In our quest for a bike that accelerated and climbed with the targeted stiffness found in premium carbon gravel bikes, we’ve pushed the bar higher than ever to ensure that we have hit those marks.

Meticulously Shaped 3AL/2.5V Titanium Frame


With performance-focused titanium manipulation capabilities unique to Litespeed, the G2 showcases our unique in-house tube manipulation capabilities on a level not seen in the industry. Creating these purposefully tailored, shaped, and formed tubes is a laborious process, but one that results in a ride experience that rivals that of any titanium gravel bike out there.

Second slide

The Ultimate G2 - Think Fast

Ultimate G2 Frame

$2,495.00 USD $3,095.00 USD
Size Guide

Ultimate G2 Frame

Features

All the details on frame geometry, wheelsets, components, & more.

  • The Ultimate G2 redefines performance titanium gravel, with geometry changes designed to improve handling at speed, with current tire clearance capability and internal cable routing options.

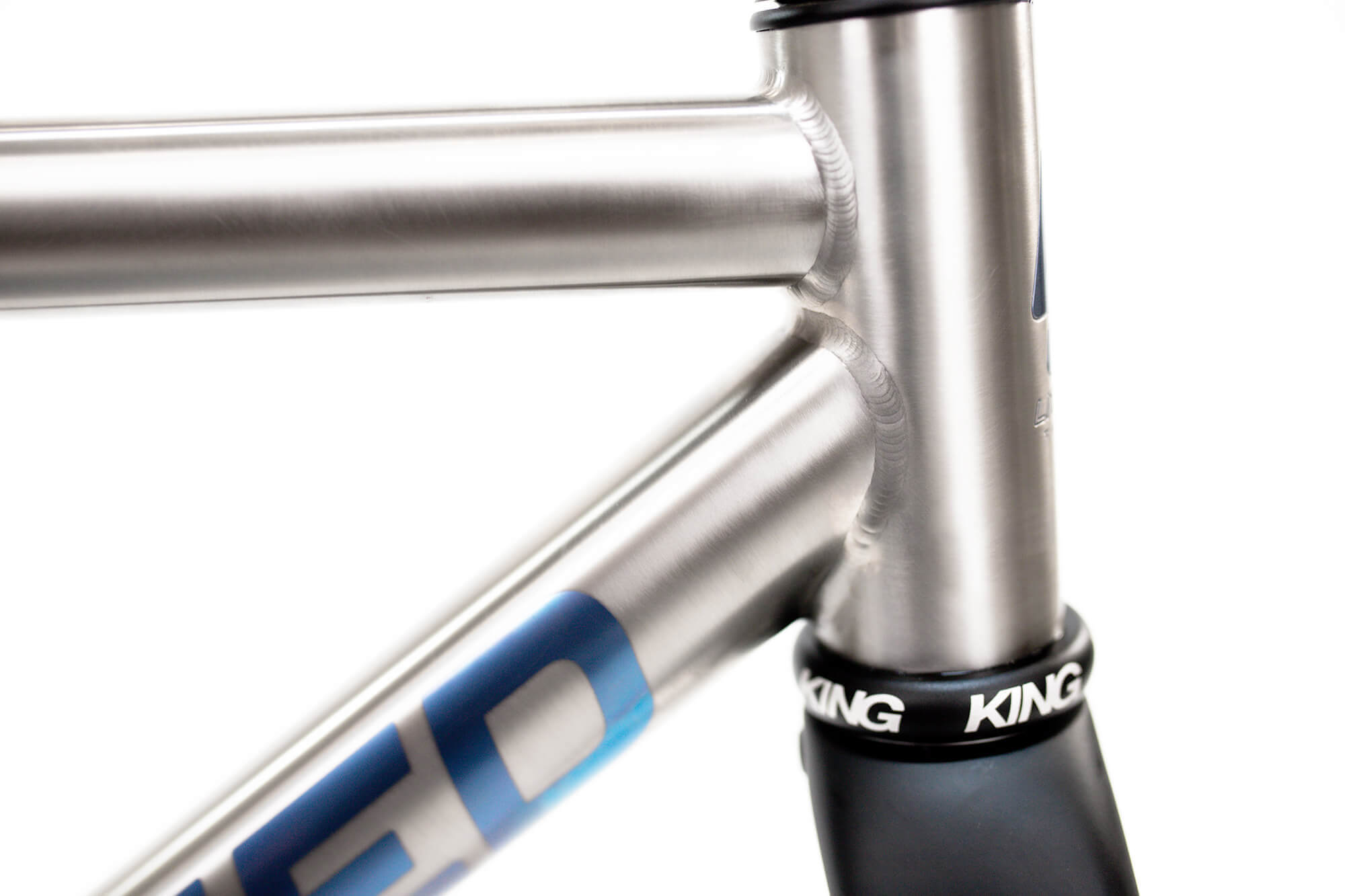

  • Meticulously shaped and cold-worked 3AL/2.5V titanium frame

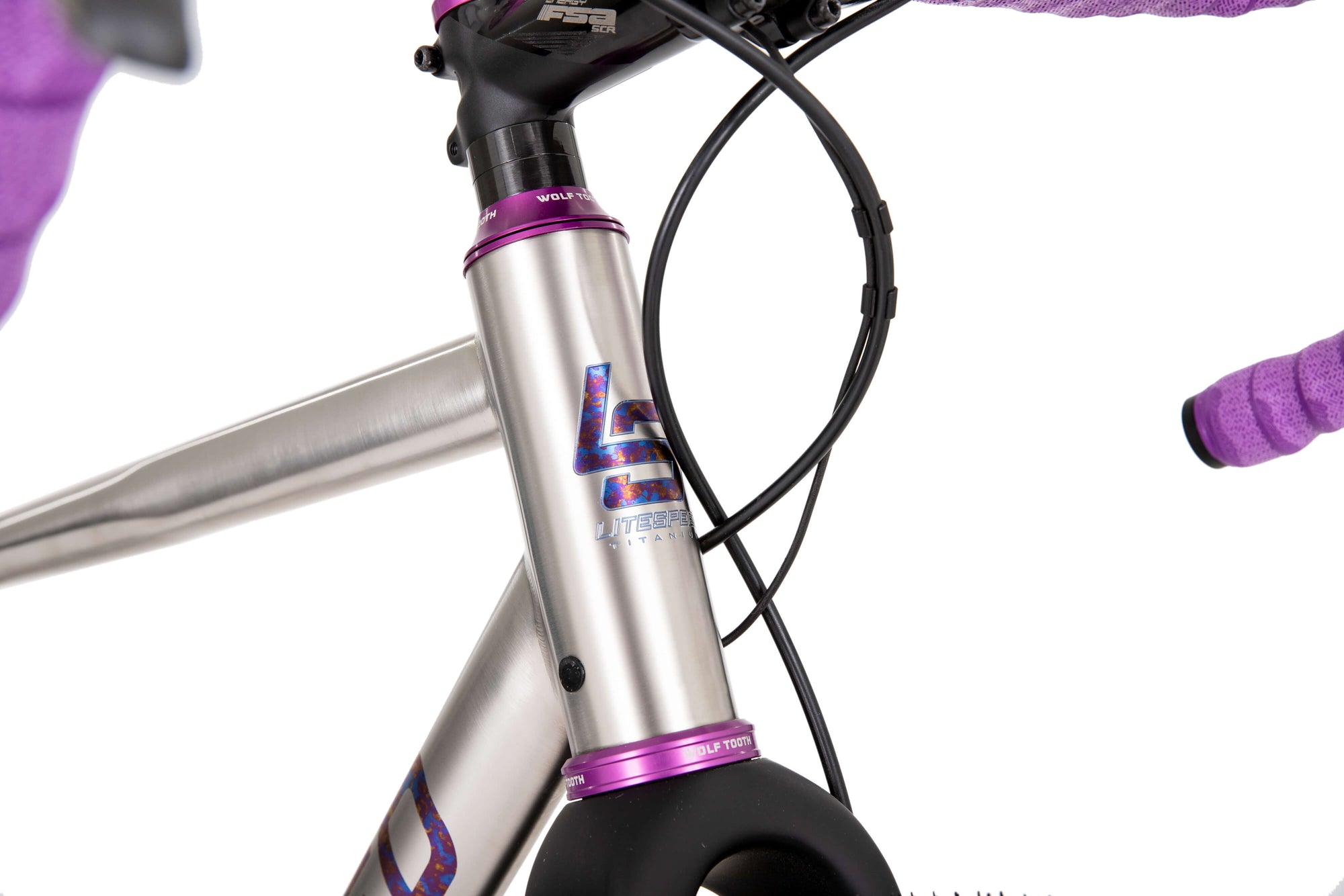

  • Litespeed-specific truncated airfoil downtube, and multi-directional top tube for stiffness and precision handling
  • Interlock Dropped Seatstays, delivering exceptional rear triangle performance and exceptional tire clearance
  • CNC-machined titanium yoke (on driveside chainstay), increasing chainring and tire clearance
  • Lightweight butted headtube and bottom bracket shell
  • Full internal cable routing for both electronic and 1x mechanical build options*
  • Tire clearance up to 48mm* on 700c wheels**
  • Litespeed vinyl logos provided standard, including black and up to eight color choices to select from
  • Bright Brushed frame finish with multiple decal color options available
  • Three bottle bosses (downtube, seattube and downtube underside) standard
  • TiDize color anodization upgrade available, including an additional anodized color-matched frame, headset and seat collar package options
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
  • Average weight for size medium frame: 1,410 grams
  • PF30 bottom bracket shell, with T47 threaded bottom bracket upgrade available
  • Top tube storage and or rack mount options add-ons available
  • *2x mechanical builds require external front derailleur cable routing

    **Varies based on tire brand, tread and wheel combination

Geometry

CM IN

The Litespeed Ultimate G2 geometry is designed to improve handling at speed, with up to 48mm tire clearance capability and internal cable routing options.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.4 70.0° 74.5° 16.9 16.7 3.1 39.7 23.5 2.0 28.2 3.6 21.1 14.6 80 -
S 20.9 71.0° 74.0° 17.5 16.7 3.1 39.7 23.5 2.0 28.6 3.5 21.1 15.0 80 -
M 21.9 71.5° 73.5° 18.5 16.7 2.9 40.3 24.0 2.0 29.8 4.6 22.0 15.4 90 -
ML 22.4 71.5° 73.5° 19.5 16.7 2.8 40.8 24.5 2.0 31.1 5.6 23.0 15.6 90 -
L 23.2 72.0° 73.0° 20.5 16.7 2.7 41.4 25.0 2.0 32.0 6.6 24.2 15.9 110 -
XL 24.0 72.0° 73.0° 21.7 16.7 2.7 42.2 25.9 2.0 33.3 8.1 25.2 16.3 110 -
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 51.7 70.0° 74.5° 43.0 42.5 7.8 100.8 59.6 5.0 71.7 9.2 53.5 37.0 80 -
S 53.2 71.0° 74.0° 44.5 42.5 7.8 100.9 59.6 5.0 72.7 8.8 53.5 38.0 80 -
M 55.5 71.5° 73.5° 47.0 42.5 7.4 102.4 61.0 5.0 75.7 11.6 56.0 39.0 90 -
ML 56.8 71.5° 73.5° 49.5 42.5 7.1 103.7 62.3 5.0 79.0 14.3 58.5 39.5 90 -
L 59.0 72.0° 73.0° 52.0 42.5 6.8 105.1 63.6 5.0 81.3 16.8 61.5 40.5 110 -
XL 61.0 72.0° 73.0° 55.0 42.5 6.8 107.3 65.7 5.0 84.5 20.5 64.0 41.5 110 -

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
