The Litespeed Ultimate G2

THE ULTIMATE GRAVEL ALL-ROUNDER

The benchmark for gravel performance with the ultimate blend of low weight, efficiency, comfort, and capability to handle any gravel adventure.

4 products

GRAVEL
- +1 more
ULTIMATE G2 FI
- Superform SL Titanium Tubeset
- Fully Integrated Cable Routing
- 50mm Tire Clearance
- 1,350 gram frame weight
$6,445.00
GRAVEL
- +1 more
ULTIMATE G2
- Superform SL Titanium Tubeset
- Standard Cable Routing
- 50mm Tire Clearance
- 1,410 gram frame weight
$5,150.00
GRAVEL
- +1 more
ULTIMATE G2 FI FRAME
- Superform SL Titanium Tubeset
- Fully Integrated Cable Routing
- 50mm Tire Clearance
- 1,350 gram frame weight
$3,549.00
GRAVEL
- +1 more
ULTIMATE G2 FRAME
- Superform SL Titanium Tubeset
- Standard Cable Routing
- 50mm Tire Clearance
- 1,410 gram frame weight
$3,299.00

THE ULTIMATE GRAVEL ALL-ROUNDER

The Ultimate is one of the most legendary names in Litespeed's history, so when we created our dream titanium gravel bike, we knew it deserved the 'Ultimate' moniker. Built using Litespeed's legendary Superform tubeset, the Ultimate G2 takes the classic titanium riding experience to the next level with lower weight and more off-road capability.

SUPERFORM SL

Lightweight and performance-focused Superform SL titanium tubeset

Learn more

CUSTOM-FORMED TUBING

Custom tubing with multi-dimensional shaping and variable wall thickness

Learn more

PROUDLY HANDCRAFTED

Built in Chattanooga, Tennessee, using globally sourced premium materials.

Learn more

THE ULTIMATE VISUAL SIGNATURE

The Ultimate G2’s defining feature is its Interlock Dropped Seatstays, which are dropped and extended past the seat tube to the top tube. With two independent stiffness-enhancing weld points, the rear triangle becomes more responsive during acceleration.

METICULOUSLY SHAPED TITANIUM

The Superform SL titanium tubeset is custom-formed using advanced titanium manipulation capabilities unique to Litespeed. With variable wall thickness and multi-dimensional shaping, the Ultimate G2 ride experience exceeds that of “regular” titanium gravel bikes.

SUSPENSION CORRECTED & UDH

Modern performance meets classic titanium. We designed a bike with targeted stiffness, without sacrificing titanium’s magical ride quality. With suspension-corrected geometry, clearance for 50mm wide tires, and UDH dropouts, the Ultimate G2 is ready to go fast, comfortably.

SUPERFORM SL TUBING

Our premium aerospace-grade Superform SL tubeset is custom-formed and cold-worked into 3D shapes with variable wall thickness to achieve precise flex characteristics and weight targets. Every tube is size-specific and fine-tuned to produce the perfect ride.

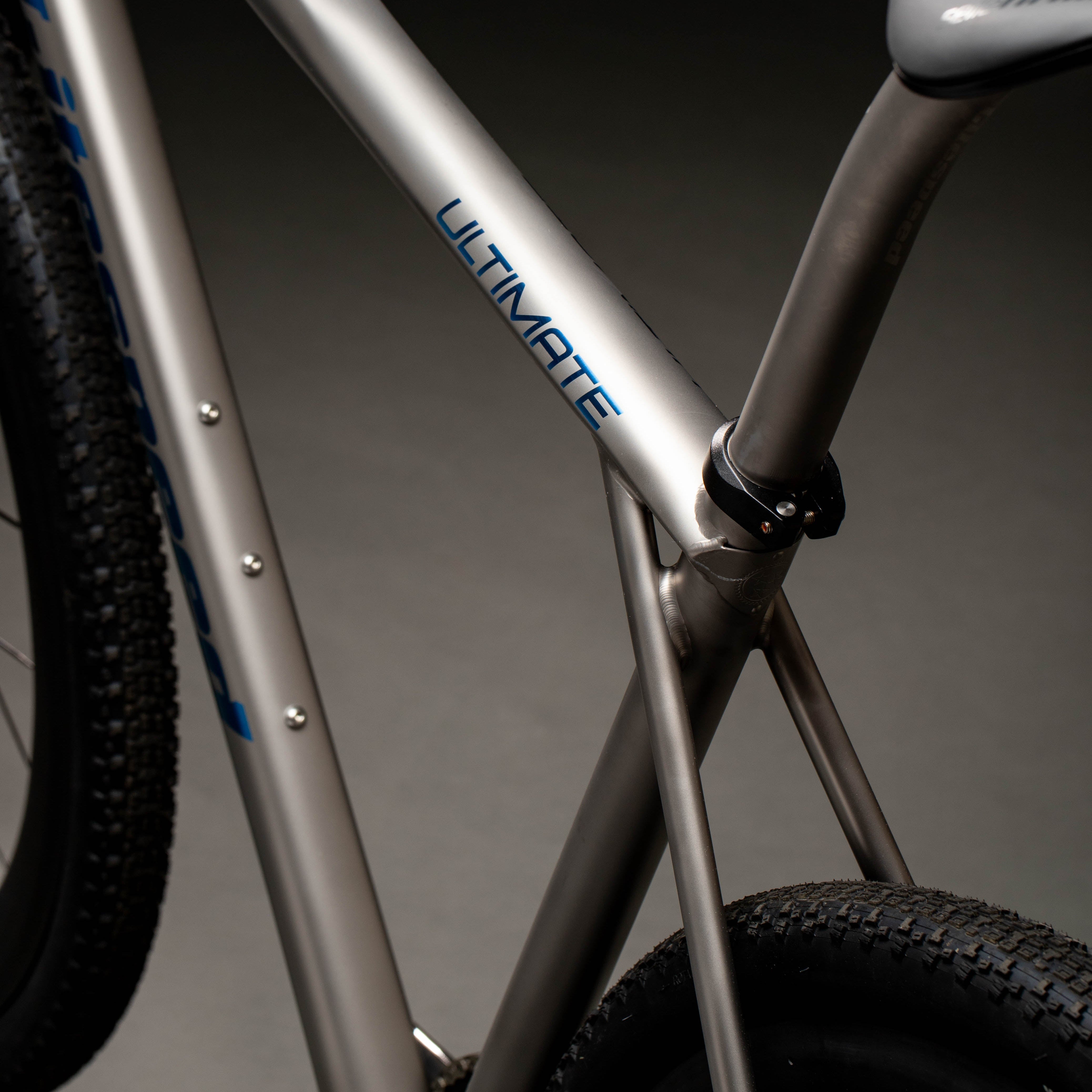

INTERLOCK DROPPED SEATSTAYS

Vertically dropping and widening the stays increases lateral stiffness and responsiveness without resorting to large-diameter tubing that would compromise ride quality. The design also provides a shorter, more direct internal cable path, plus increased tire clearance.

50MM TIRE CLEARANCE

Modern gravel racing demands modern tire clearance. The Ultimate will fit tires up to 50mm wide, giving you more options to choose a tire setup that will maximize comfort and minimize rolling resistance while opening up more roads for exploration.

SUSPENSION-CORRECTED GEOMETRY

The Ultimate G2’s handling is tuned to provide the perfect combination of agility and confidence for gravel racing. The geometry is also suspension corrected, giving riders the option to switch between a suspension fork or a rigid fork to suit their terrain.

MODERN INTEGRATION

For those who want the cleanest aero silhouette, the Ultimate G2 FI features fully integrated cables to keep everything neat and out of the wind. We understand that hidden cables aren’t for everyone, though, so a non-integrated Ultimate G2 is also available.

CNC-MACHINED TITANIUM

All of Litespeed’s titanium dropouts, brake mounts, and small parts are designed and CNC-machined in-house. Components like our machined dropout and two-piece disc brake mount are lighter and stronger than any 3D-printed titanium equivalent.

BUILT FOR YOU

Every Litespeed is built to order and delivered to your door in 3-4 weeks. Experience the advanced titanium technology, unmatched attention to detail, and custom component and finish options that have made Litespeed bikes legendary.

EXPLORE THE DETAILS

Frame & Fork Specs

Frame

Frame Material	Superform SL 3AL/2.5V Titanium Tubeset
Frame Weight	1,410g (Size M)
BB Standard	PF30 (T47 Optional Upgrade)
Seatpost Diameter	31.6mm
Derailleur Hanger	UDH
Front Derailleur Mount	34.9mm Clamp-on
Cable Routing	Semi-Integrated

Axle Specs

Front Spacing	12x100mm
Front Axle Spec	M12 x 1.5, 120-125mm
Rear Spacing	12x142mm
Rear Axle Spec	M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (1x)	46t
Max Chainring Size (2x)	48/31t

Brakes

Rotor Max Size (Front)	180mm*
Rotor Max Size (Rear)	160mm

Fork

Fork Offset	50mm
Rigid Fork Length	420mm

Tire Clearance

1x	50mm**
2x	50mm**

Mounts

Downtube Water Bottle Bolts	2
Seattube Water Bottle Bolts	2
Toptube Bag Mount	Optional Upgrade
Downtube Accessory Mount	Yes
Rack Mount	Optional Upgrade

* Spec may vary with choice of front suspension.

** Spec may vary based on choice of front derailleur.


Size	XS	S	M	M/L	L	XL
A - Stack	55.3	55.7	56	58.5	61.5	64
B - Reach	36.4	37.3	39	39.5	40.5	41.5
C - Standover Height (cm)	71.7	72.7	75.7	79	81.3	84.5
D - Top Tube Length (cm) virtual horizontal	51.7	53.2	55.5	56.8	59	61
E - Seat Tube Angle	74.5°	74.0°	73.5°	73.5°	73.0°	73.0°
F - Seat Tube Length (cm)	43	44.5	47	49.5	52	55
G - Head Tube Angle	70.0°	71.0°	71.5°	71.5°	72.0°	72.0°
H - Head Tube Length (cm)	9.2	9.2	9.7	12.4	14.9	18.6
I - BB Drop (cm)	7.8	7.8	7.4	7.1	6.8	6.8
J - Front Center (cm)	59.6	59.6	61	62.3	63.6	65.7
K - Chainstay Length (cm)	42.5	42.5	42.5	42.5	42.5	42.5
L - Wheelbase (cm)	100.8	100.9	102.4	103.7	105.1	107.3
M - Fork Offset (cm)	5	5	5	5	5	5
N - Trail (cm w/ 45mm tire)	7.8	7.1	6.8	6.8	6.4	6.4

XS

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

ML

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

XL

188cm 74 - 198cm 76

FREQUENTLY ASKED QUESTIONS

All Litespeed gravel bikes come from the factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

Fork choice will depend on your riding preferences and terrain.

A gravel suspension fork will add comfort and confidence on rough terrain, but it will weigh more than a rigid carbon fork, and it may feel less efficient (due to flex, weight, or pedal bob) on smooth terrain.

A rigid fork is lighter, and it also provides a bit more tire clearance and mounting options for extra gear and bags, but it will transmit more shock from impacts and vibration from rough roads.

For more information on gravel suspension forks, read our detailed thoughts on gravel suspension here.

The Ultimate G2 is a gravel bike designed for tackling gravel terrain at high speeds. It is ideal for gravel riders who want a light and fast titanium gravel bike for a mix of racing, exploring, and general gravel riding.

The Toscano has similar geometry and handling, but its titanium tubeset is lighter and stiffer to suit more race-focused gravel riding. The Flint has a more relaxed, adventure-oriented geometry, more tire clearance, and a different tubeset, which makes it slightly heavier but provides more robustness and affordability.

The Ultimate G2 has clearance to fit gravel tires up to 700c x 50mm wide with both 1x and 2x drivetrains.

1x maximum chainring size is 46t. 2x maximum chainring size is 48/31t.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Ultimate G2 is built with Litespeed's Superform SL tubeset. Superform SL is a superlight titanium tubeset that sets the benchmark for advanced titanium bicycle tubes. Superform SL is an aerospace-grade 3AL/2.5V titanium tubeset that is custom-formed and hand-crafted in-house, allowing us to employ multi-dimensional shaping and variable wall-thickness to minimize weight and maximize performance.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.
