THE ULTIMATE ROAD ALL-ROUNDER

THE LITESPEED ULTIMATE

The original benchmark for titanium road race bikes, built with our legendary Superform SL tubset for ultimate all-around comfort and performance.

4 products

Cyber Week Savings

LIGHTWEIGHT ROAD

ULTIMATE FI
- Superform SL Titanium Tubeset
- Fully Integrated Cable Routing
- 35mm Tire Clearance
- 1,240 gram frame weight
$4,996.00 Regular price $6,245.00
Cyber Week Savings

LIGHTWEIGHT ROAD

ULTIMATE
- Superform SL Titanium Tubeset
- Standard Cable Routing
- 35mm Tire Clearance
- 1,295 gram frame weight
$3,756.00 Regular price $4,695.00
Cyber Week Savings

LIGHTWEIGHT ROAD

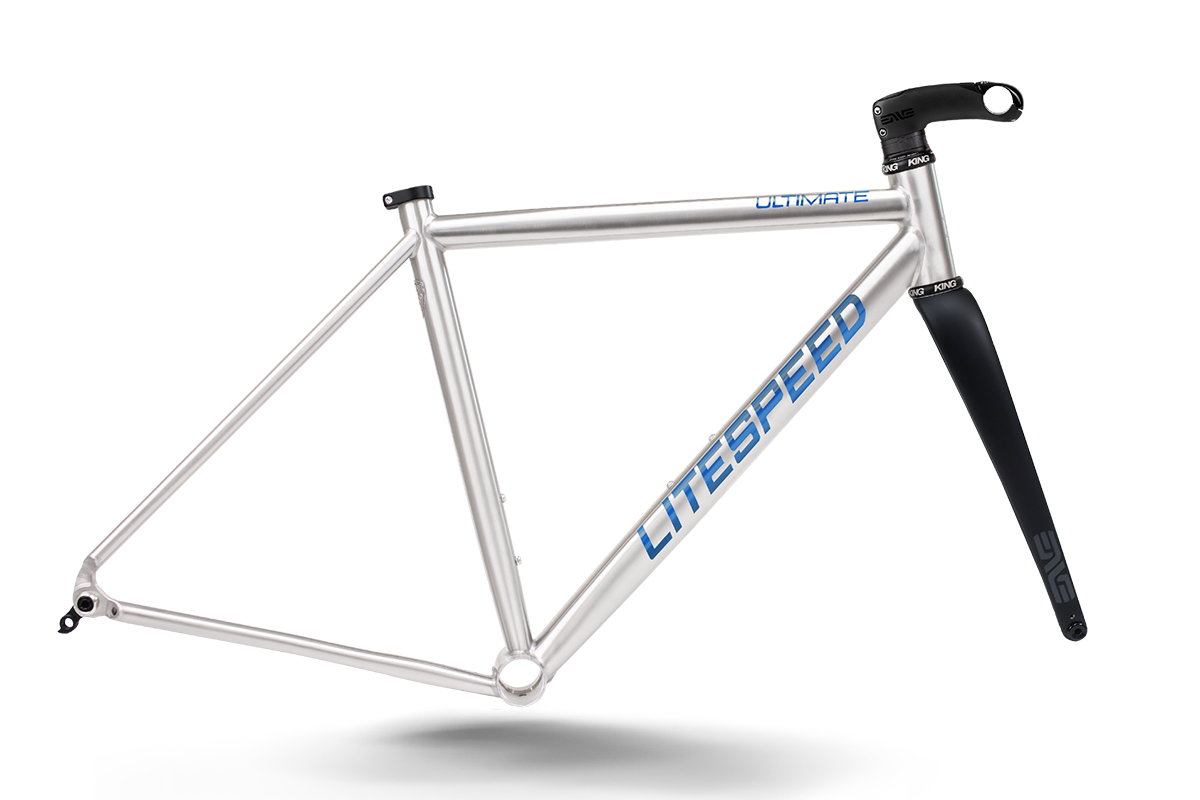

ULTIMATE FI FRAME
- Superform SL Titanium Tubeset
- Fully Integrated Cable Routing
- 35mm Tire Clearance
- 1,240 gram frame weight
$2,559.20 Regular price $3,199.00
Cyber Week Savings

LIGHTWEIGHT ROAD

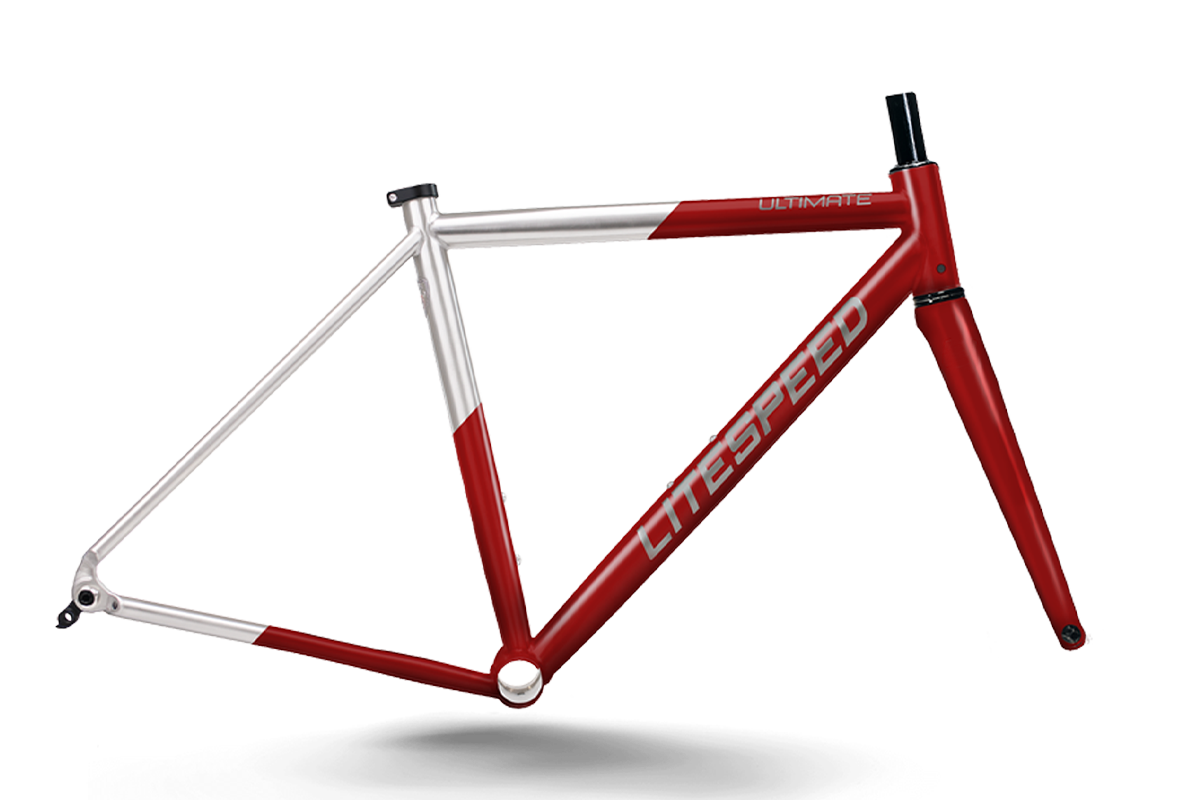

ULTIMATE FRAME
- Superform SL Titanium Tubeset
- Standard Cable Routing
- 35mm Tire Clearance
- 1,295 gram frame weight
$2,396.00 Regular price $2,995.00

THE ULTIMATE ROAD ALL-ROUNDER

The Ultimate is the longest-running model in the Litespeed line-up, and for good reason. Since its inception, it has been the performance benchmark against which all other titanium bikes are measured. The modern Ultimate is built using all of Litespeed's advanced titanium technology, taking the classic titanium riding experience to the next level with lower weight and fine-tuned stiffness.

SUPERFORM SL

Lightweight and performance-focused Superform SL titanium tubeset

Learn more

CUSTOM-FORMED TUBING

Custom tubing with multi-dimensional shaping and variable wall thickness

Learn more

PROUDLY HANDCRAFTED

Built in Chattanooga, Tennessee, using globally sourced premium materials.

Learn more

THE ULTIMATE BENCHMARK

When Litespeed introduced the Ultimate in 1987, it was the “ultimate” road bike, lusted after and raced by many of the sport’s most legendary riders. The Ultimate design has been refined over three decades, bringing the modern Ultimate even closer to perfection.

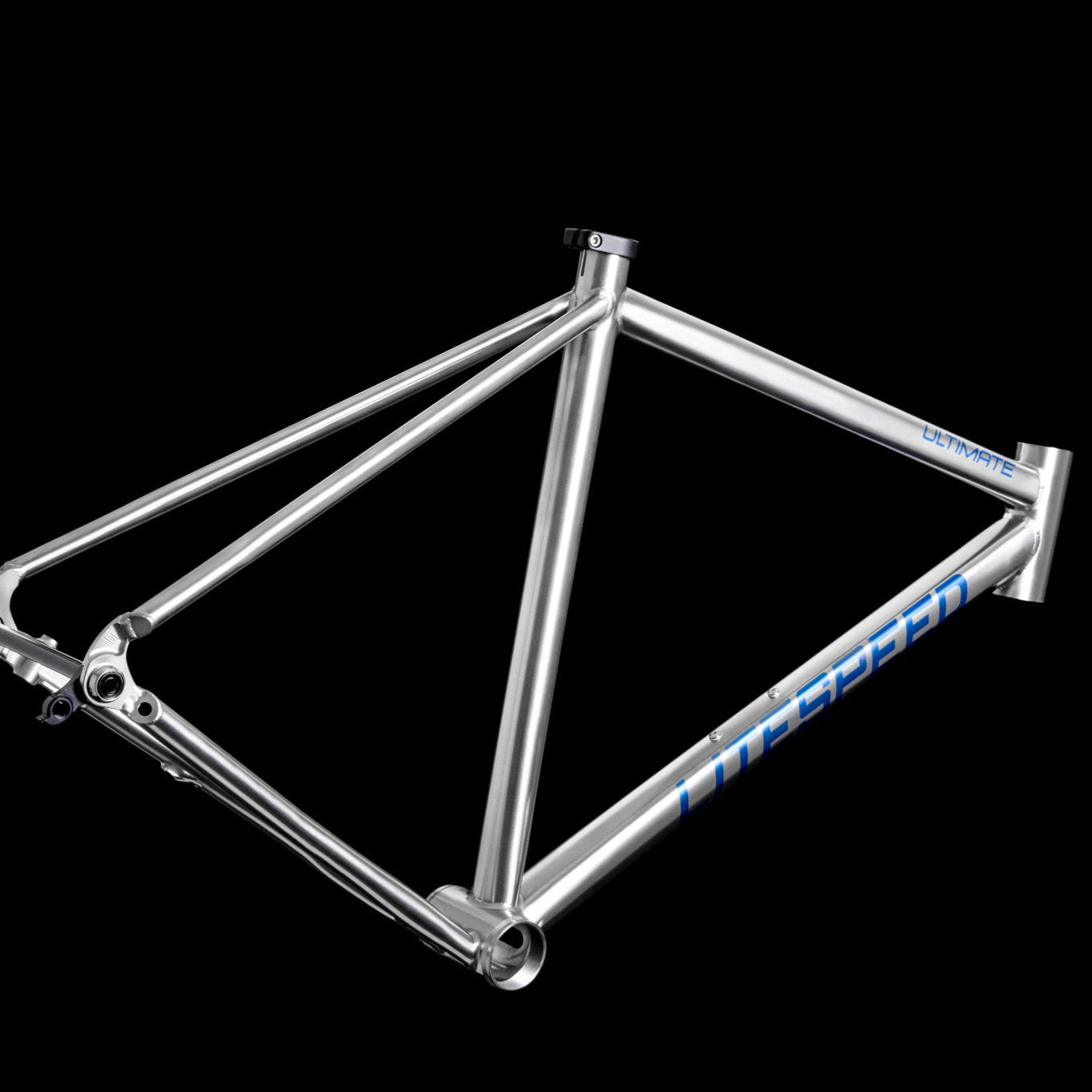

METICULOUSLY SHAPED TITANIUM

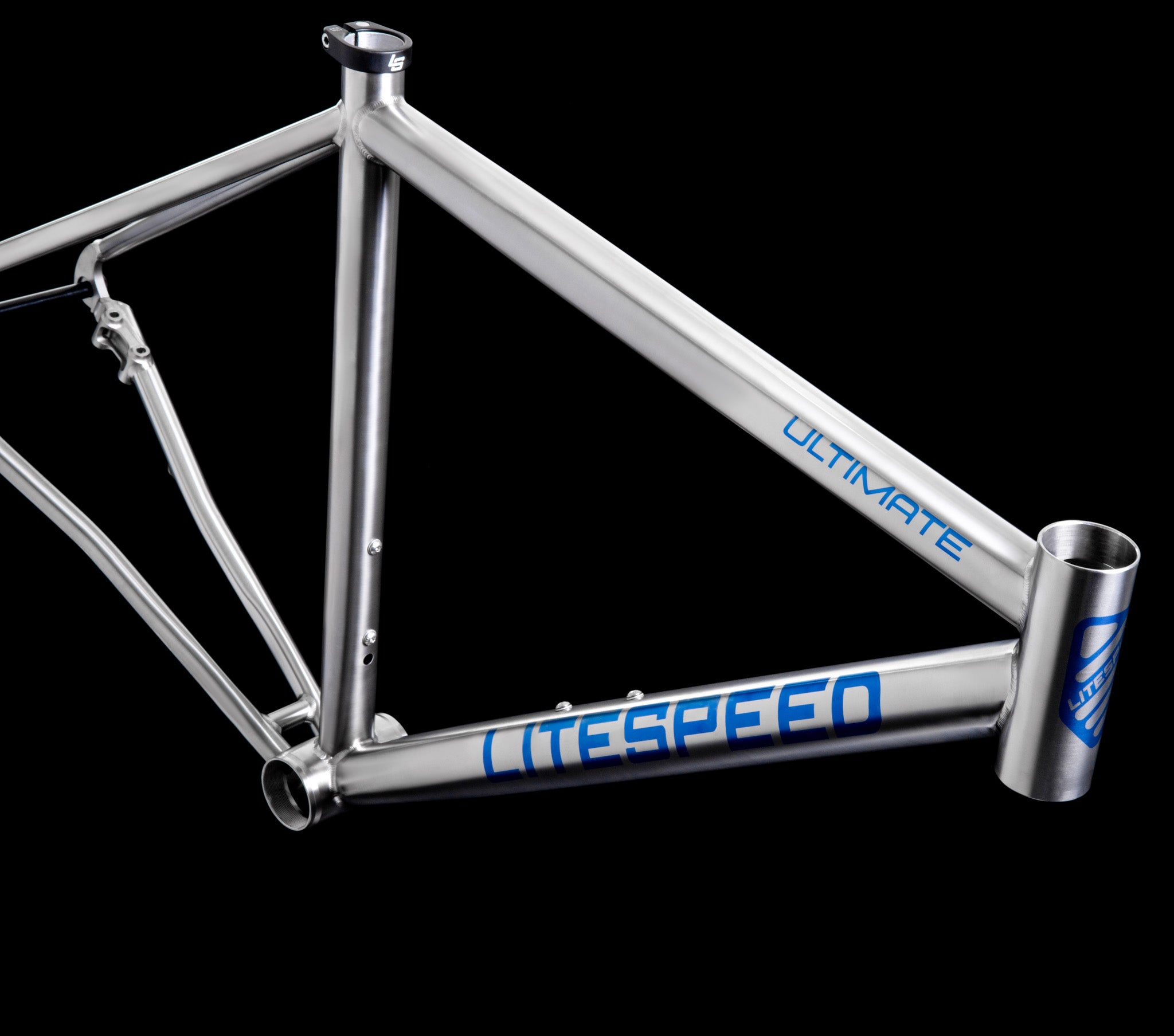

The Superform SL titanium tubeset is custom-formed using advanced titanium manipulation capabilities unique to Litespeed. With variable wall thickness and multi-dimensional shaping, the Ultimate ride experience exceeds that of any “regular” titanium road bike.

ULTIMATE ROAD PERFORMANCE

Modern performance meets classic titanium. We designed a bike with the targeted stiffness found in premium carbon road bikes, without sacrificing titanium’s magical ride quality. With 35mm tire clearance, the Ultimate is built to excel in every road riding scenario.

SUPERFORM SL TUBING

Our premium aerospace-grade Superform SL tubeset is custom-formed and cold-worked into 3D shapes with variable wall thickness to achieve precise flex characteristics and weight targets. Every tube is size-specific and fine-tuned to produce the perfect ride.

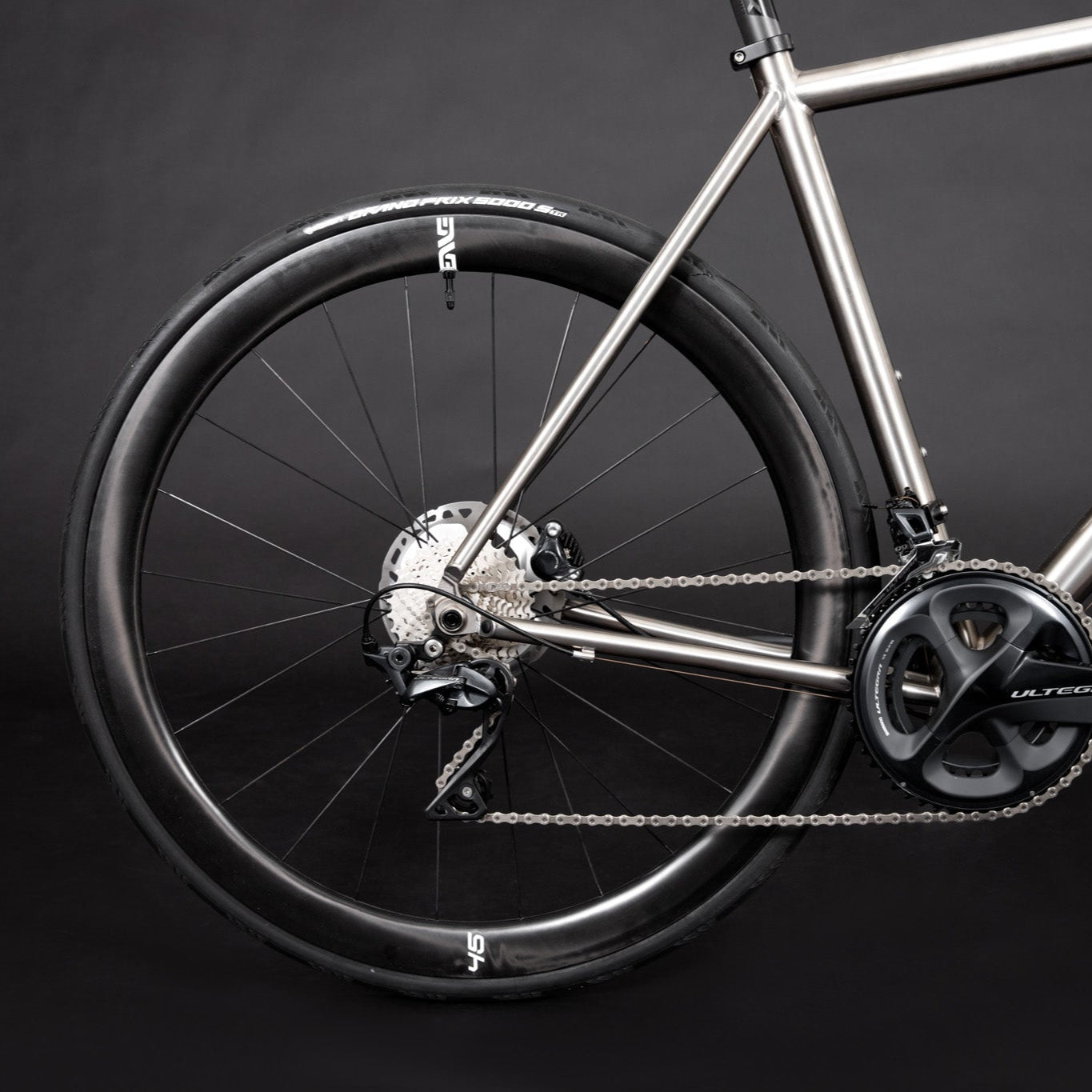

35MM TIRE CLEARANCE

Modern road racing demands modern tire clearance. The Ultimate will fit tires up to 35mm wide, giving you more options to choose a tire setup that will maximize comfort and minimize rolling resistance while opening up more roads for exploration.

PERFORMANCE GEOMETRY

Designed by a team that has built bikes for countless pro racers, World Champions, and Tour de France stage winners, the Ultimate geometry and handling represent decades of refinement and provide the perfect combination of agility and confidence.

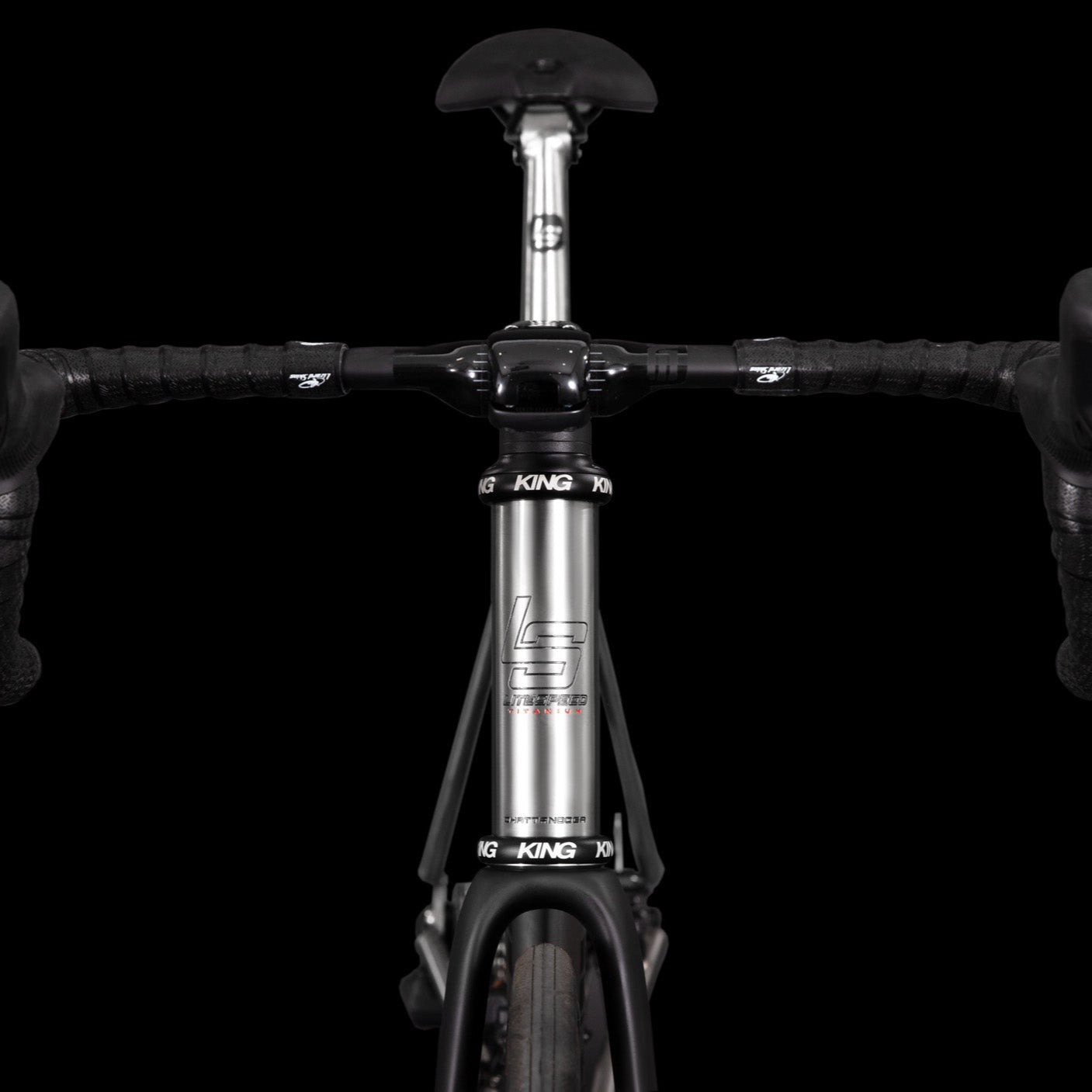

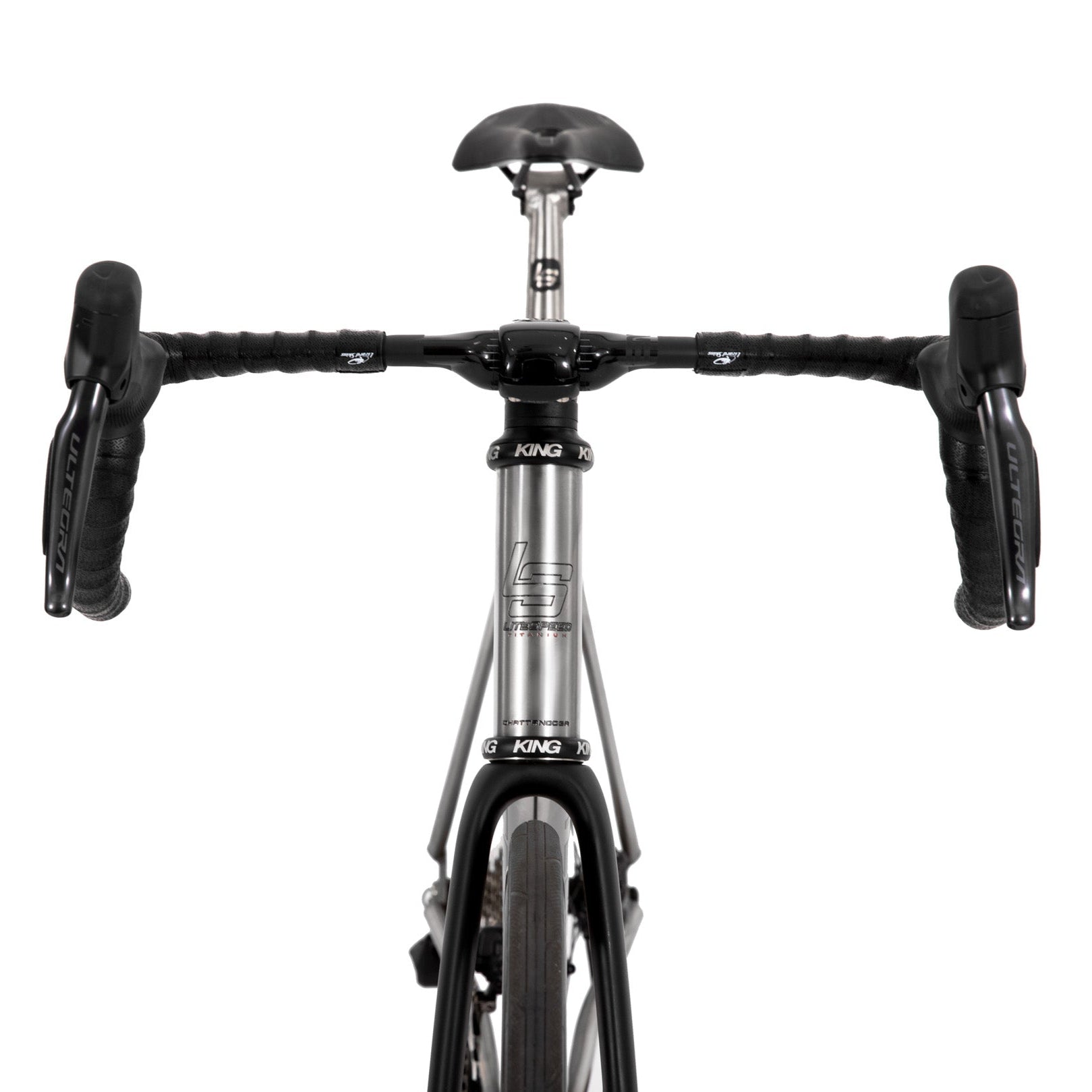

MODERN INTEGRATION

For those who want the cleanest aero silhouette, the Arenberg FI features fully integrated cables to keep everything neat and out of the wind. We understand that hidden cables aren’t for everyone, though, so a non-integrated Arenberg is also available.

EYEBROW

CNC-MACHINED TITANIUM

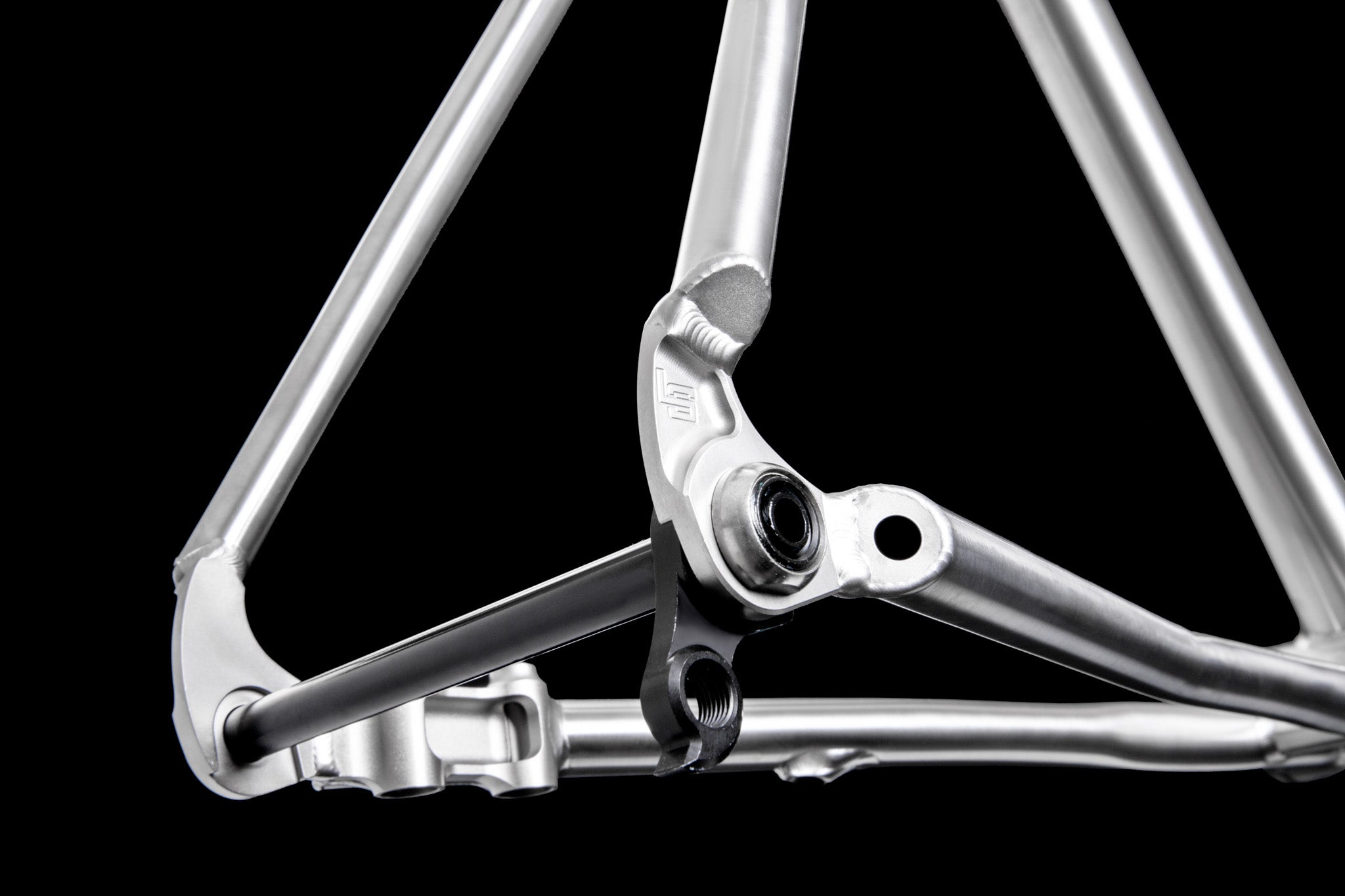

All of Litespeed’s titanium dropouts, brake mounts, and small parts are designed and CNC-machined in-house. Components like our machined dropout and two-piece disc brake mount are lighter and stronger than any 3D-printed titanium equivalent.

BUILT FOR YOU

Every Litespeed is built to order and delivered to your door in 3-4 weeks. Experience the advanced titanium technology, unmatched attention to detail, and custom component and finish options that have made Litespeed bikes legendary.

EXPLORE THE DETAILS

Litespeed introduced the Ultimate in 1987, and when it was released, it was our “ultimate” road bike. It’s been refined and perfected over decades and remains the benchmark that all other titanium bikes are measured against.

Frame weight: 1,295 grams (size medium)
Superform SL 3AL/2.5V titanium tubeset
Aeroform design with bladed seatstays and airfoil-shaped downtube
PF30 bottom bracket - threaded T47 upgrade available
Maximum tire size: 35mm*
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, and wheel combination.

	XS	S	M	M/L	L	XL
Top Tube Length	51.5	52.5	54	56	57.5	59
Head Tube Length	10.1	11.5	12.9	15	17.6	20.7
Seat Tube Angle	74.5°	74.0°	73.5°	73.0°	73.0°	73.0°
Head Tube Angle	72.0°	72.5°	73.0°	73.0°	73.0°	73.0°
BB Drop	7.1	7.1	7.1	7.1	7.1	6.8
Chainstay Length	41.5	41.5	41.5	41.5	41.5	41.5
Wheelbase	97.1	97.6	98.1	99.7	101	102.4
Front Center	56.6	57.1	57.6	59.2	60.5	61.9
Standover Height	71.6	73.4	75.2	77.2	79.5	82
Fork rake	4.5	4.5	4.5	4.5	4.5	4.5
Seat Tube Length	45.5	47.5	49.5	51.5	53.5	55.5
Reach	37	37.5	38	39	39.5	40
Stack	51.5	53	54.5	56.5	59	62
Stem Length	90	90	100	100	110	110
Crank Length	170	170	172.5	172.5	175	175

Xs

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

Ml

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

Xl

188cm 74 - 198cm 76

When you select tubeless-ready wheels and tires, the bike will come from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

If you want confirmation whether your specific wheel/tire selection will come tubeless, feel free to contact us via email or chat.

2x maximum chainring size is 54/40t (Shimano) or 56/43t (SRAM). 1x maximum chainring size is 46t.

The Spezia is designed around 700c x 28mm-32mm tires. It has clearance to fit road tires up to 35mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Ultimate Disc is a road racing bike designed for road racing, crits, and general high-performance road riding.

The Spezia and Ultimate Disc have very similar race-oriented geometry and handling, but the Ultimate frame is slightly more compliant and a bit heavier, making it slightly more comfortable. The Arenberg has more upright, endurance-oriented geometry. The Arenberg is heavier, but provides even more comfort and compliance.

The Ultimate Disc is built with Litespeed's Superform SL tubeset. Superform SL is a superlight titanium tubeset that sets the benchmark for advanced titanium bicycle tubes. Superform SL is an aerospace-grade 3AL/2.5V titanium tubeset that is custom-formed and hand-crafted in-house, allowing us to employ multi-dimensional shaping and variable wall-thickness to minimize weight and maximize performance.
