Flint

4.83 ( 12   )
The toughest and most capable gravel bike we’ve ever designed, with tire clearance and geometry designed to conquer the roughest terrain.
Looking for Frameset? Click here.

These components are required:

Your total:
Your total:
USD

YOUR BUILD HIGHLIGHTS

READY FOR YOUR NEXT GRAVEL ADVENTURE

Add loads of accessory options from rack mounts to nutrition and extra hydration/storage mounts, and you’re fully packed for your wildest long adventures. Stable without sacrificing agility, the Flint moves with ease where you want—when you want.

DELIVERS OPTIMAL STRENGTH-TO-WEIGHT

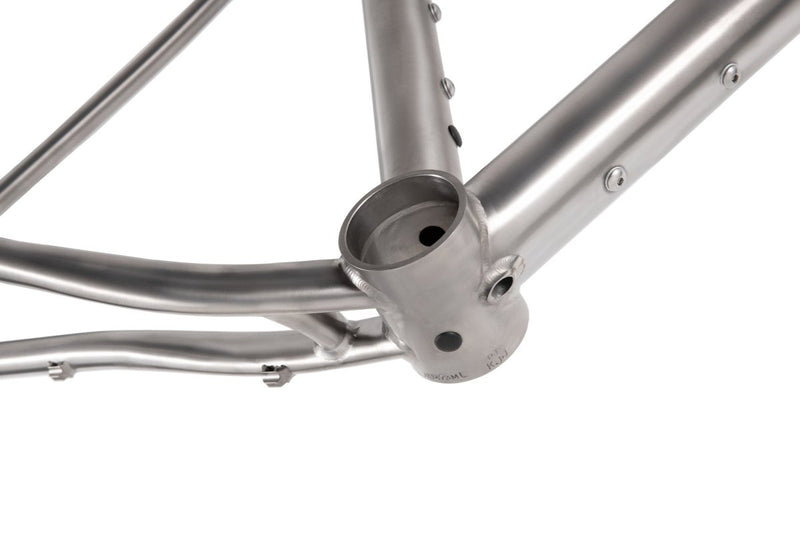

The Flint includes titanium dropouts, disc brake mount, headtube, and bottom bracket all designed and CNC machined in-house at Litespeed to deliver optimal strength-to-weight.

CLIMB AND SPRINT WITH PURE ENERGY

The Flint features 3AL/2.5V titanium, fabricated at our factory in Chattanooga, Tenn. using globally sourced materials. With a clean braceless seatstay design for full mud-shedding clearance, super clean cable routing, tons of tire clearance for sure footing, and more, take it all on—no matter the trail.

EXPLORE THE DETAILS

The Flint is engineered for versatility with increased stability, a relaxed riding position, and big tire clearance, delivering more comfort during long days in the saddle and more capability on rough terrain.

Frame & Fork Specs

Frame

Frame Material Superform SL 3AL/2.5V Titanium Tubeset
Frame Weight 1,410g (Size M)
BB Standard PF30 (T47 Optional Upgrade)
Seatpost Diameter 31.6mm
Derailleur Hanger UDH
Front Derailleur Mount 34.9mm Clamp-on
Cable Routing Semi-Integrated

Axle Specs

Front Spacing 12x100mm
Front Axle Spec M12 x 1.5, 120-125mm
Rear Spacing 12x142mm
Rear Axle Spec M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (1x) 46t
Max Chainring Size (2x) 48/31t

Brakes

Rotor Max Size (Front) 180mm*
Rotor Max Size (Rear) 160mm

Fork

Fork Offset 50mm
Rigid Fork Length 420mm

Tire Clearance

1x 50mm**
2x 50mm**

Mounts

Downtube Water Bottle Bolts 2
Seattube Water Bottle Bolts 2
Toptube Bag Mount Optional Upgrade
Downtube Accessory Mount Yes
Rack Mount Optional Upgrade

* Spec may vary with choice of front suspension.

** Spec may vary based on choice of front derailleur.

Select a build kit:

GROUPSET Shimano GRX 810 2X 11 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA Adventure Compact Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA Gossamer Alloy 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS GRX RX810 11Spd
ROTORS Shimano RT70 160mm
FRONT DERAILLEUR GRX RX810 11 Spd
REAR DERAILLEUR GRX RX810 11Spd
CRANKSET GRX RX810 48/31
CASSETTE Ultegra HG800 11-34 11 Spd
CHAIN Shimano LG500 11Spd
BOTTOM BRACKET Praxis Pressfit upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET GRX RX810
FORK Select Option in Builder
GROUPSET Shimano GRX 820 1X 12 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA A-Wing AGX Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS GRX RX820 12 Spd
ROTORS Shimano CL800 160mm
FRONT DERAILLEUR N/A
REAR DERAILLEUR GRX RX822 12 Spd
CRANKSET GRX RX820 40T
CASSETTE XT M8100 10-51 12 Spd
CHAIN Shimano M8100 12 Spd
BOTTOM BRACKET Praxis Pressfit upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET GRX RX820
FORK Select Option in Builder
GROUPSET Shimano GRX 820 2X 12 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA A-Wing AGX Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS GRX RX820 12 Spd
ROTORS Shimano CL800 160mm
FRONT DERAILLEUR GRX RX820 12 Spd
REAR DERAILLEUR GRX RX820 12 Spd
CRANKSET GRX RX820 48/31
CASSETTE Ultegra R8100 11-34 12 Spd
CHAIN Shimano M8100 12 Spd
BOTTOM BRACKET Praxis Pressfit upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET GRX RX820
FORK Select Option in Builder
GROUPSET Shimano GRX 825 Di2 2x 12 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA A-Wing AGX Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS GRX RX825 Di2 12 Spd
ROTORS Shimano CL800 160mm
FRONT DERAILLEUR GRX RX825 Di2 12 Spd
REAR DERAILLEUR GRX RX825 Di2
CRANKSET GRX RX820 48/31
CASSETTE Ultegra R8100 11-34 12 Spd
CHAIN Shimano M8100 12 Spd
BOTTOM BRACKET Praxis Pressfit upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET GRX RX820
FORK Select Option in Builder
GROUPSET Shimano GRX 827 Di2 1x 12 Spd
HEADSET Select Option in Builder
HANDLEBAR Select Option in Builder
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS GRX RX825 Di2 12 Spd
ROTORS Shimano CL800 160mm
FRONT DERAILLEUR N/A
REAR DERAILLEUR GRX RX827 Di2 12 Spd
CRANKSET GRX RX820 40T
CASSETTE Shimano XT M8200 10-51 12 spd
CHAIN Shimano M8100 12 spd
BOTTOM BRACKET Praxis T47 I.B.
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET GRX RX820 Hydraulic
FORK Select in Builder
GROUPSET SRAM Rival XPLR AXS E1 13 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA Adventure Compact Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA Gossamer Alloy 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS SRAM Rival AXS E1 13 Spd
ROTORS SRAM Paceline 160mm
FRONT DERAILLEUR N/A
REAR DERAILLEUR SRAM Rival XPLR AXS E1 13Spd
CRANKSET SRAM Rival XPLR AXS E1 40T
CASSETTE SRAM Rival XPLR XG1351 10-46 13 Spd
CHAIN SRAM Rival Flattop
BOTTOM BRACKET SRAM Pressfit Upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET SRAM Rival
FORK Select Option in Builder
GROUPSET SRAM Force XPLR AXS E1 13 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA A-Wing AGX Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS SRAM Force AXS E1 13 Spd
ROTORS SRAM Paceline 160mm
FRONT DERAILLEUR N/A
REAR DERAILLEUR SRAM Force XPLR AXS E1 13Spd
CRANKSET SRAM Force XPLR AXS E1 42T Power Meter
CASSETTE SRAM Force XPLR XG1371 10-46 13 Spd
CHAIN SRAM Force Flattop
BOTTOM BRACKET SRAM Pressfit Upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET SRAM Force
FORK Select Option in Builder
GROUPSET SRAM RED XPLR AXS E1 13 Spd
HEADSET Select Option in Builder
HANDLEBAR FSA A-Wing AGX Alloy
BAR TAPE Lizard Skin DSP
SEATPOST FSA SLK Carbon 20mm Offset or Upgrade to Litespeed Titanium
SADDLE Select Option in Builder
SHIFTERS SRAM RED AXS E1 13 Spd
ROTORS SRAM Paceline 160mm
FRONT DERAILLEUR N/A
REAR DERAILLEUR SRAM RED XPLR AXS E1 13Spd
CRANKSET SRAM RED XPLR AXS E1 42T Power Meter
CASSETTE SRAM RED XPLR XG1391 10-46 13 Spd
CHAIN SRAM RED Flattop
BOTTOM BRACKET SRAM Pressfit Upgradable to T47
TIRES Select Option in Builder
WHEELSET Select Option in Builder
BRAKESET SRAM RED
FORK Select Option in Builder
SIZE XS S M M/L L XL
A - STACK 54.9 55 57.5 60 62.5 65
B - REACH 35.5 37 38 39 39.5 40
C - STANDOVER HEIGHT (CM) 71.4 73 75.8 78.4 81.2 83.8
D - TOP TUBE LENGTH (CM) VIRTUAL HORIZONTAL 50.3 52.3 54.5 56.8 58 60
E - SEAT TUBE ANGLE 75.0° 74.5° 74.0° 73.5° 73.5° 73.0°
F - SEAT TUBE LENGTH (CM) 43 44.5 47 49.5 52 55
G - HEAD TUBE ANGLE 69.0° 69.5° 70.0° 70.5° 71.0° 71.5°
H - HEAD TUBE LENGTH (CM) 9.2 9.2 11.7 14.2 16.8 19.2
I - BB DROP (CM) 7.8 7.8 7.6 7.6 7.4 7.4
J - FRONT CENTER (CM) 59.4 60.5 62 63.3 64.2 64.9
K - CHAINSTAY LENGTH (CM) 43.7 43.7 43.7 43.7 43.7 43.7
L - WHEELBASE (CM) 101.9 103 104.5 105.9 106.8 107.5
M - FORK OFFSET (CM) 5 5 5 5 5 5
XS
147cm 58 - 157cm 62
S
157cm 62 - 165cm 66
M
165cm 66 - 175cm 69
ML
173cm 68 - 180cm 71
L
178cm 71 - 188cm 74
XL
188cm 74 - 198cm 76

All Litespeed gravel bikes come from the factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

Fork choice will depend on your riding preferences and terrain.

A gravel suspension fork will add comfort and confidence on rough terrain, but it will weigh more than a rigid carbon fork, and it may feel less efficient (due to flex, weight, or pedal bob) on smooth terrain.

A rigid fork is lighter, and it also provides a bit more tire clearance and mounting options for extra gear and bags, but it will transmit more shock from impacts and vibration from rough roads.

For more information on gravel suspension forks, read our detailed thoughts on gravel suspension here.

The Flint is our most adventure-oriented gravel bike, with relaxed geometry, more tire clearance, and our most robust and affordable tubeset. It's ideal for gravel riders who want a do-it-all gravel bike for everything from bikepacking to racing.

The Toscano and Ultimate G2 have slightly more race-oriented construction, geometry, and handling, and they are built with a lighter and stiffer titanium tubeset, which increases cost.

1x maximum chainring size is 42t. 2x maximum chainring size is 48/31t.

The Flint has clearance to fit gravel tires up to 700c x 54mm wide with a 1x drivetrain.

With a 2x drivetrain, tire clearance is reduced to 700c x 50mm due to the front derailleur.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Flint is built with Litespeed's Pure LW tubeset. Pure LW is a lightweight titanium tubeset made from aerospace-grade 3AL/2.5V titanium. It is formed, butted, and bent in-house just like our Superform tubes, but omits the multi-dimensional shaping and variable wall-thickness to reduce cost. Pure LW is the ideal choice for bikes that prioritize comfort and durability, while remaining competitively lightweight.

The maximum recommended load of 3 kg (6.6 lbs) per leg when attaching items to the accessory mounts on the Litespeed Rigid Carbon Gravel Fork with Accessory Mounts.
