Fully Integrated Road Ride For All

Arenberg FI

Read Reviews

The Arenberg maintains a rich heritage in the road range as one of the most iconic models in our history; a true road performer. And now, it’s back—reimagined for every rider, and better than ever. Now with full integration of brakes and wires internally for a clean, aero presentation.

30-Day Returns Lifetime Warranty Financing

$5,090

Endurance Road Design
Standard-Tier Shaped 3AL/2.5V Titanium Tubing
Cable-Free Cockpit Design
T47i BB - Internal Routed System
Overview Features Components Geometry Gallery Reviews

Fully Controlled Tubesets

We maintain the strictest standards to ensure the best ride. That’s why we go to the effort of not only using size-specific tubesets on the Arenberg to ensure a consistent ride experience, every tubeset is tuned and adjusted to meet our strict wall thickness standards. All the performance, with zero excess weight.

Endurance Geometry

A relaxed riding position, matched with modern features like wide tire clearance allows you to go longer while maintaining the performance edge every Litespeed is known for.

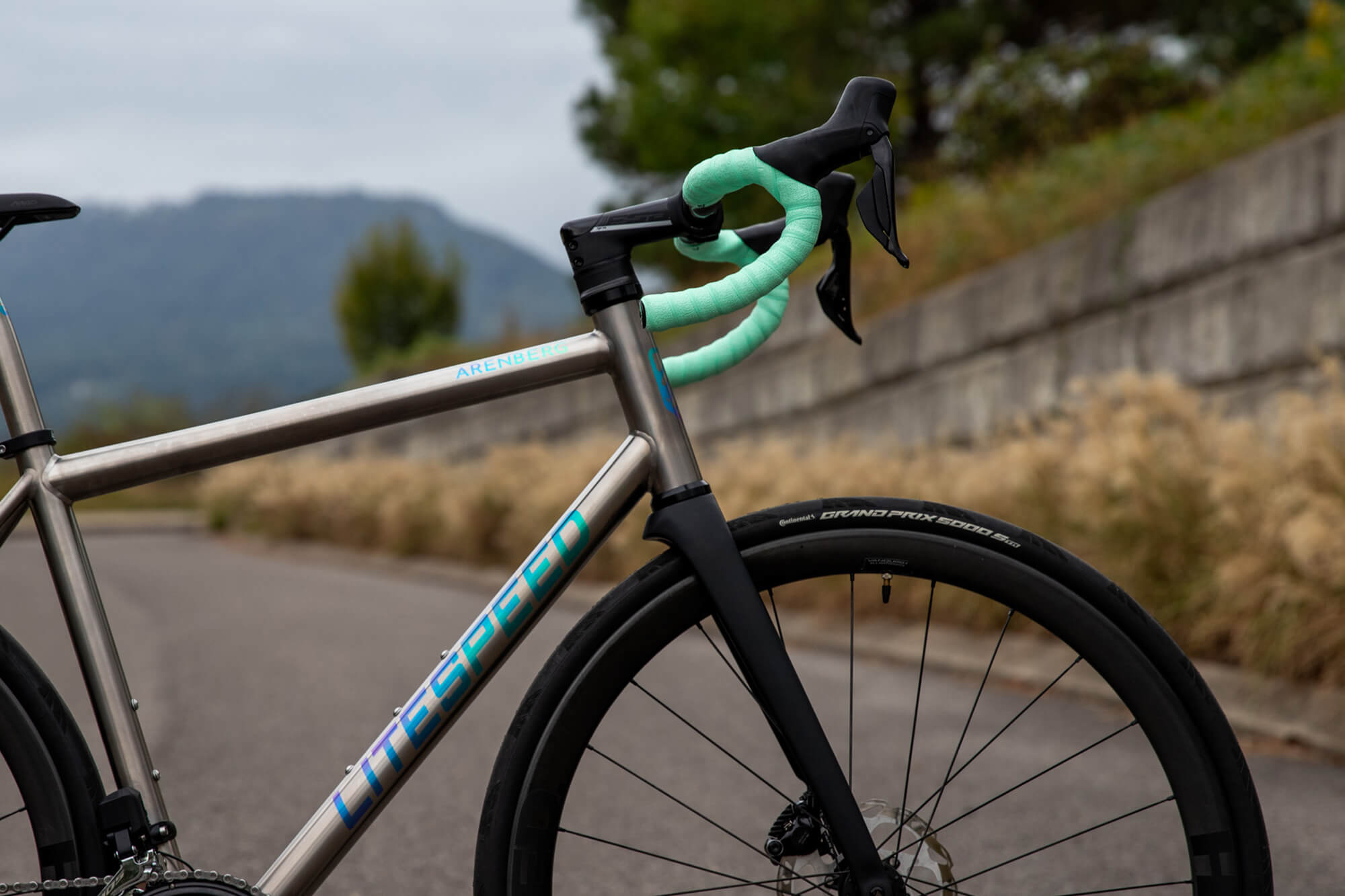

Fully Integrated

The Arenberg FI also incorporates full housing and wire integration. With a selection of cockpits, fork and bottom bracket options, all cables and housing are neatly tucked within the confines of the bar, fork, and frame, and out of the wind. For those demanding a clean, full aero and fully functional cockpit option, there’s no better value in titanium road.

Enter To Win An Fi Frameset

Choose between the Arenberg FI road bike frame or the Flint FI gravel frame. Enter now to win!

enter to win
Second slide

The Road Ride For All - Meet the Arenberg

Want To Know More?

Learn more about the arenberg
Arenberg Fi Bike with Skye Anodized Graphics

Arenberg FI

$5,090.00 USD
Size Guide

Arenberg FI

More details

Features

All the details on frame geometry, wheelsets, components, & more.

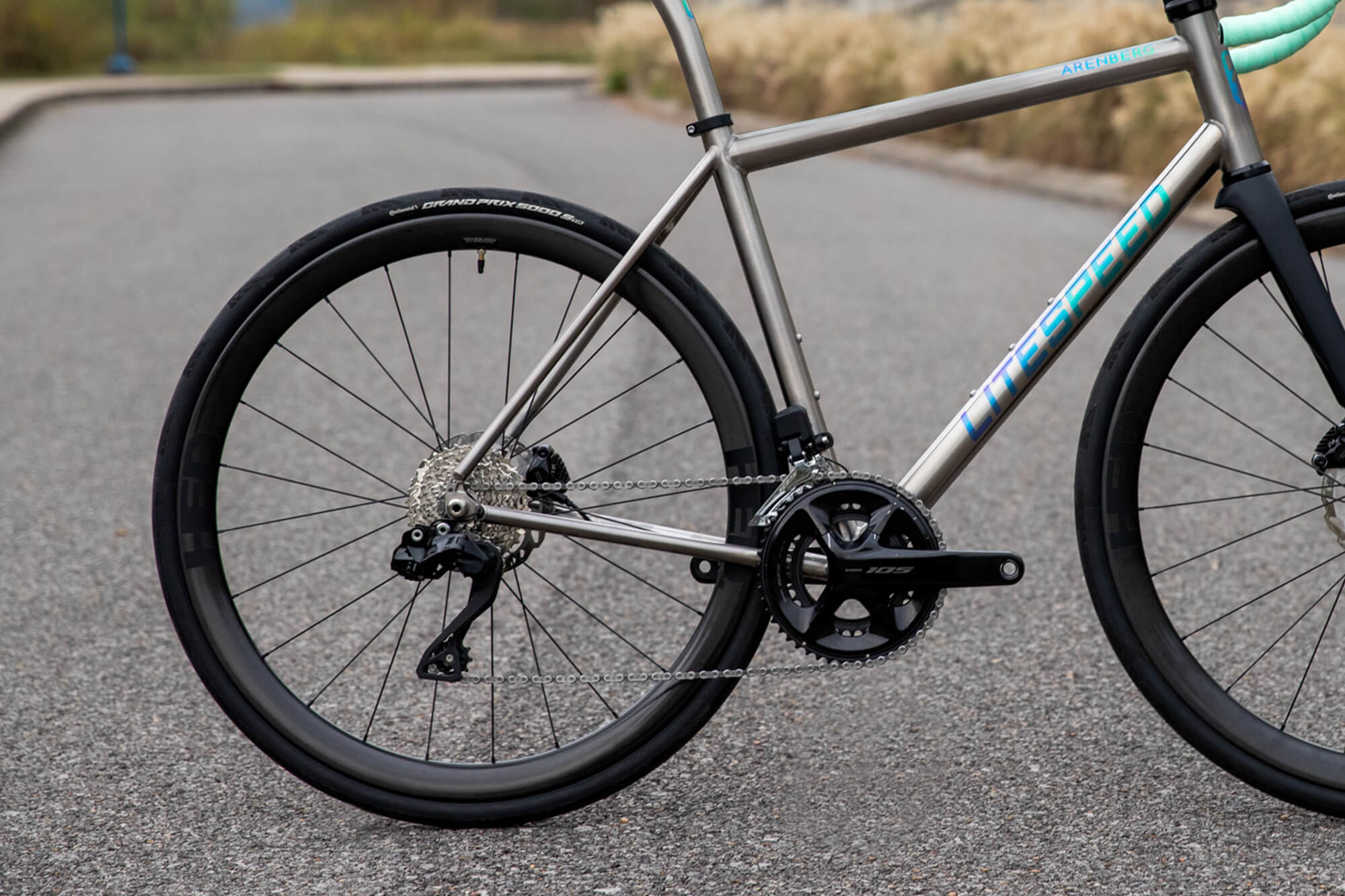

  • 3AL/2.5V titanium with size-specific tubesets, each with wall thickness controlled, drawn and tuned per size
  • Full Integration (FI) hides the brake housing and wiring within the integrated handlebar, stem, fork, and bottom bracket, tucking them cleanly out of the wind.

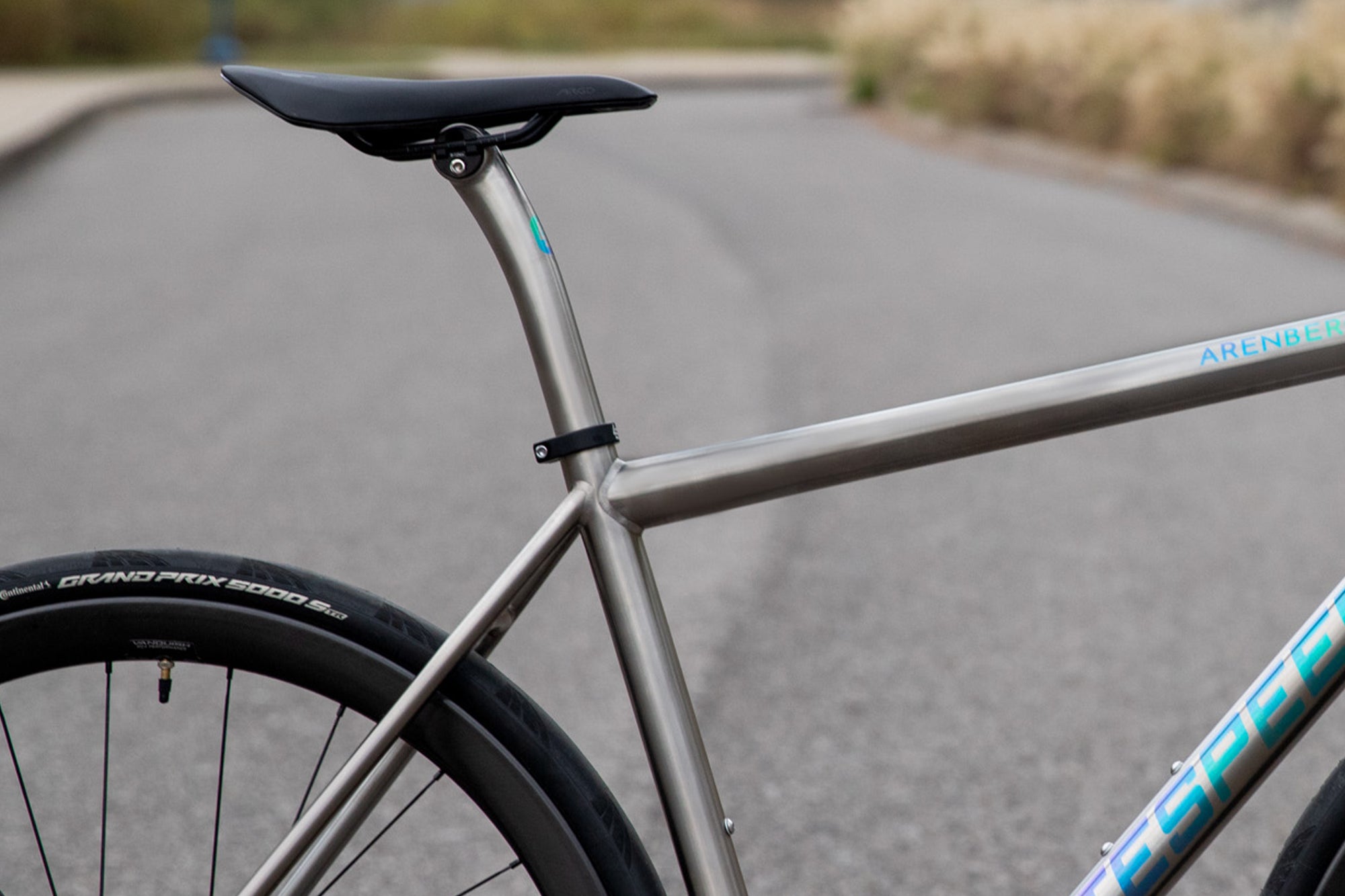

  • Clean and classic fastback seatstay design
  • Optimized for 28c to 35c road tires
  • Shift cable routing: mechanical external or electronic internal
  • Threaded T47i bottom bracket standard keeps cables hidden within the bottom bracket shell
  • Titanium dropouts, disc brake mount, headtube and bottom bracket designed and CNC machined in house at Litespeed to deliver optimal strength-to-weight
  • Bright Brushed frame finish provided standard
  • TiDize color anodization upgrade available
  • Threaded T47i bottom bracket standard keeps cables hidden within the bottom bracket shell
  • Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
  • Average weight for size medium frame: 1,430 grams
  • Litespeed vinyl graphics provided standard, with up to nine color choices
  • Frame sizes: XS, S, M, ML, L, XL and custom

Component Kits

Every Litespeed is fully customizable and offeres multiple build kits, so you can meet your ride needs. If you seek more modifications, chat with our team to see how we can further customize your bike. Select a groupset...

Headset Select in Builder
Stem Select in Builder
Handlebar Select in Builder
Bar Tape Select in Builder
Seatpost FSA SLK Carbon 20mm Offset
Saddle Fizik Vento Argo R5 S-Alloy 140 Black
Shifters Ultegra Di2 8170 12 spd
Rotors Shimano MT8100 CL 160mm
Front Derailleur Ultegra Di2 8150 12 spd
Rear Derailleur Ultegra Di2 8150 12 spd
Crankset Ultegra R8100 50/34 12 spd
Cassette Ultegra R8100 11-30 12 spd
Chain Shimano M8100 12 spd
Bottom Bracket Praxis T47 I.B.
Tires Continental Ultrasport3 28c Folding
Wheelset Select in Builder
Brakeset Ultegra 8170
Fork Select in Builder
Headset Select in Builder
Stem Select in Builder
Handlebar Select in Builder
Bar Tape Select in Builder
Seatpost Litespeed Titanium
Saddle Fizik Vento Argo R5 S-Alloy 140 Black
Shifters Dura-Ace Di2 R9270 Di2 spd
Rotors Shimano MT900 CL 160mm
Front Derailleur Dura-Ace Di2 R9250 12 spd
Rear Derailleur Dura-Ace Di2 R9250 12 spd
Crankset Dura-Ace R9200 50/34 12 spd
Cassette Dura-Ace R9200 11-30 12 spd
Chain Shimano M9100 12 spd
Bottom Bracket Praxis T47 I.B.
Tires Continental GP5000 30c
Wheelset Select in Builder
Brakeset Dura-Ace 9270
Fork Select in Builder
Headset Select in Builder
Stem Select in Builder
Handlebar Select in Builder
Bar Tape Select in Builder
Seatpost FSA Gossamer Alloy 20mm Offset
Saddle WTB Volt Steel
Shifters Shimano 105 R7170 Di2 12 spd
Rotors Shimano RT54 160mm Centerlock
Front Derailleur Shimano 105 R7150 Di2 12 spd
Rear Derailleur Shimano 105 R7150 Di2 12 spd
Crankset Shimano 105 R7100 50/34 12 spd
Cassette Shimano 105 R7100 11-34 12 spd
Chain Shimano M7100 12 spd
Bottom Bracket Praxis T47 I.B.
Tires Continental Ultrasport3 28c
Wheelset Select in Builder
Brakeset Shimano 105 R7170
Fork Select in Builder

Geometry

CM IN

Engineered with a slightly less-aggressive riding position than other models in the Litespeed line with the Arenberg per prepared to take on pitchy climbs, carve swooping descents with brilliant handling, and go for the town sprint.

Select Size
XS S M ML L XL
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.0 70.0° 74.5° 16.9 16.5 3.1 38.9 22.8 1.8 27.4 4.2 20.5 14.4 90 170
S 20.6 70.5° 74.0° 17.7 16.5 3.1 39.1 23.0 1.8 28.1 4.7 21.1 14.6 90 170
M 21.3 72.0° 73.5° 18.9 16.5 3.0 39.1 23.1 1.8 29.3 5.8 22.2 14.8 100 172.5
ML 21.9 72.5° 73.5° 20.1 16.5 3.0 39.4 23.4 1.8 30.4 6.8 23.2 15.0 100 172.5
L 22.5 72.5° 73.25° 21.3 16.5 2.9 40.1 24.0 1.8 31.7 8.1 24.4 15.2 110 175
XL 23.3 72.5° 73.0° 22.4 16.5 2.8 40.7 24.6 1.8 32.8 9.0 25.2 15.6 110 175
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 50.9 70.0° 74.5° 43.0 42.0 7.8 98.7 57.9 4.5 69.5 10.6 52.0 36.5 90 170
S 52.3 70.5° 74.0° 45.0 42.0 7.8 99.3 58.5 4.5 71.3 12.0 53.5 37.0 90 170
M 54.2 72.0° 73.5° 48.0 42.0 7.6 99.4 58.6 4.5 74.5 14.8 56.5 37.5 100 172.5
ML 55.5 72.5° 73.5° 51.0 42.0 7.6 100.2 59.4 4.5 77.2 17.2 59.0 38.0 100 172.5
L 57.2 72.5° 73.25° 54.0 42.0 7.4 101.8 60.9 4.5 80.4 20.6 62.0 38.5 110 175
XL 59.1 72.5° 73.0° 57.0 42.0 7.2 103.5 62.5 4.5 83.2 22.8 64.0 39.5 110 175

Arenberg Up Close

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
