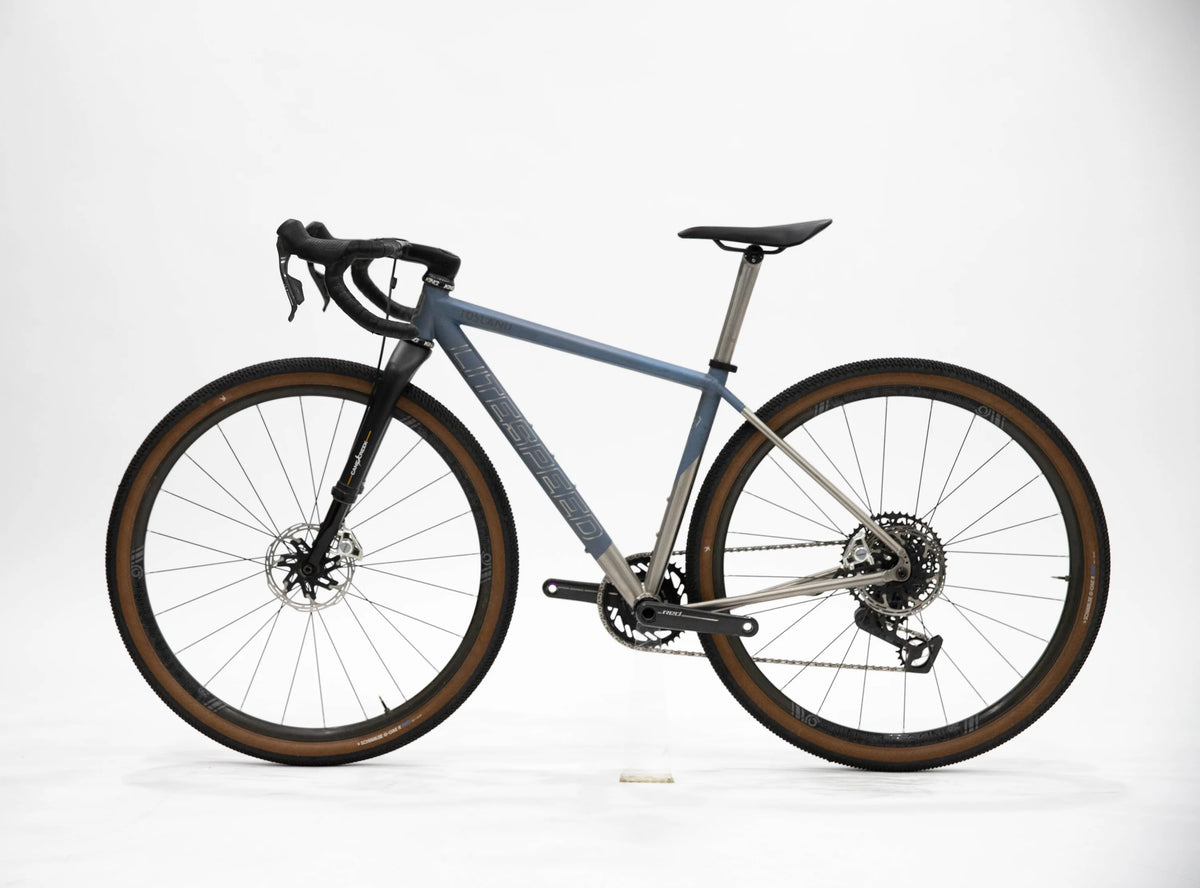

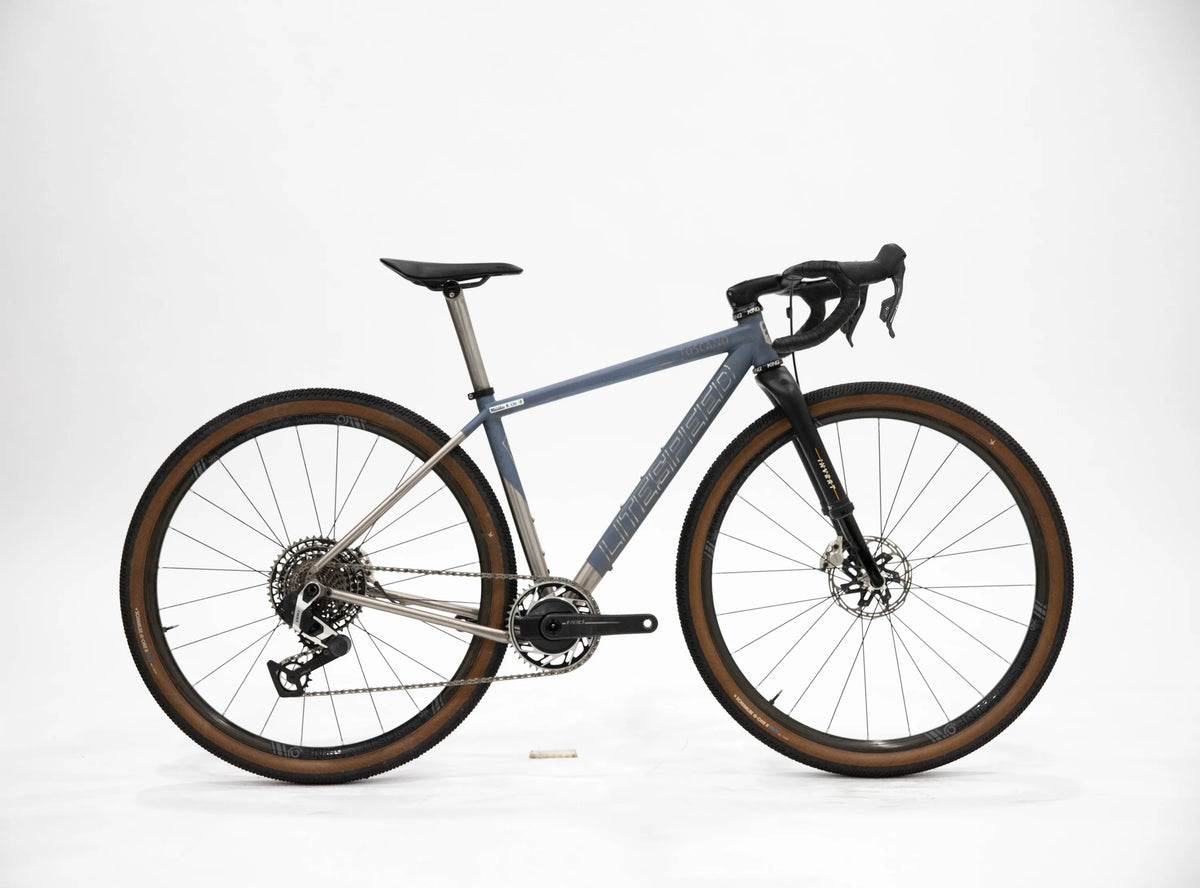

TOSCANO FI RED | SIZE SM

Only One Available
$8,999.00 USD Regular price $8,999.00 MSRP Regular price $13,499.00

[LS-273] Toscano FI (Small, Anodized Audrey, SRAM RED XPLR E1, Industry Nine Carbon Wheels, Continental Terra Hardpack, Cane Creek Invert Suspension Fork, Jet Black, Chris King Aeroset 3 - Matte Black, WTB Volt Medium Cromoly Black, Tech Badge, No Upgrade, Ti Seatpost - 0mm Offset - 300mm Length, Chris King Threadfit T47 30i DUB - Matte Black, ENVE Gravel IN-Route Handlebar, 40cm, ENVE Aero, 110mm, 170mm)

Note: Demo Bikes do not come with Bottle Cages or Pedals

In stock Out of stock

EXPLORE THE DETAILS

Frame & Fork Specs

Frame

Frame Material Superform SL 6/4 Titanium Tubeset (3AL/2.5V + 6AL/4V Top Tube)
Frame Weight 1,285g (Size M)
BB Standard PF30 (T47 Optional Upgrade)
Seatpost Diameter 31.6mm
Derailleur Hanger UDH
Front Derailleur Mount 34.9mm Clamp-on
Cable Routing Fully-Integrated

Axle Specs

Front Spacing 12x100mm
Front Axle Spec M12 x 1.5, 120-125mm
Rear Spacing 12x142mm
Rear Axle Spec M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (1x) 46t
Max Chainring Size (2x) 48/31t

Brakes

Rotor Max Size (Front) 180mm*
Rotor Max Size (Rear) 160mm

Fork

Fork Offset 50mm
Rigid Fork Length 420mm

Tire Clearance

1x 50mm**
2x 48mm**

Mounts

Downtube Water Bottle Bolts 2
Seattube Water Bottle Bolts 2
Toptube Bag Mount Optional Upgrade
Downtube Accessory Mount Yes
Rack Mount Optional Upgrade

* Spec may vary with choice of front suspension.

** Spec may vary based on choice of front derailleur.

Size XS S M M/L L XL
A - Stack 55.3cm 55.7cm 56cm 58.5cm 61.5cm 64cm
B - Reach 36.4cm 37.3cm 39cm 39.5cm 40.5cm 41.5cm
C - Standover Height 71.7cm 72.7cm 75.7cm 79cm 81.3cm 84.5cm
D - Top Tube Length (Virtual Horizontal) 51.7cm 53.2cm 55.5cm 56.8cm 59cm 61cm
E - Seat Tube Angle 74.5° 74.0° 73.5° 73.5° 73.0° 73.0°
F - Seat Tube Length 43cm 44.5cm 47cm 49.5cm 52cm 55cm
G - Head Tube Angle 70.0° 71.0° 71.5° 71.5° 72.0° 72.0°
H - Head Tube Length 9.2cm 9.2cm 9.7cm 12.4cm 14.9cm 18.6cm
I - BB Drop 7.8cm 7.8cm 7.4cm 7.4cm 6.8cm 6.8cm
J - Front Center 59.6cm 59.6cm 61cm 62.3cm 63.6cm 65.7cm
K - Chainstay Length 43.5cm 43.5cm 43.5cm 43.5cm 43.5cm 43.5cm
L - Wheelbase 101.9cm 101.9cm 103.4cm 104.7cm 106.2cm 108.3cm
M - Fork Offset 5cm 5cm 5cm 5cm 5cm 5cm
N - Trail (w/ 45mm tire) 7.8cm 7.1cm 6.8cm 6.8cm 6.4cm 6.4cm
XS
147cm 58 - 157cm 62
S
157cm 62 - 165cm 66
M
165cm 66 - 175cm 69
ML
173cm 68 - 180cm 71
L
178cm 71 - 188cm 74
XL
188cm 74 - 198cm 76

Fork choice will depend on your riding preferences and terrain.

A gravel suspension fork will add comfort and confidence on rough terrain, but it will weigh more than a rigid carbon fork, and it may feel less efficient (due to flex, weight, or pedal bob) on smooth terrain.

A rigid fork is lighter, and it also provides a bit more tire clearance and mounting options for extra gear and bags, but it will transmit more shock from impacts and vibration from rough roads.

For more information on gravel suspension forks, read our detailed thoughts on gravel suspension here.

All Litespeed gravel bikes come from the factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

The Toscano is a gravel bike designed for gravel racing and high-speed gravel riding. It is ideal for gravel riders and racers who want the lightest and fastest titanium gravel bike possible.

The Ultimate G2 has similar geometry and handling, but its titanium tubeset is slightly more compliant for more all-around use. The Flint has a more relaxed, adventure-oriented geometry, more tire clearance, and a different tubeset, which makes it slightly heavier but provides more robustness and affordability.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

1x maximum chainring size is 46t. 2x maximum chainring size is 48/31t.

The Toscano has clearance to fit gravel tires up to 700c x 50mm wide with a 1x drivetrain.

With a 2x drivetrain, tire clearance is reduced to 700c x 48mm due to the front derailleur.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Toscano is built with Litespeed's Superform SL 6/4 tubeset. Superform SL 6/4 is a superlight titanium tubeset that combines our 3AL/2.5V titanium Superform SL tubeset with a sheet-formed titanium top tube hand-crafted from a single ultra-thin sheet of 6AL/4V titanium. This is significantly lighter than a standard 3AL/2.5V top tube, while providing greater tensile strength and lateral stiffness for racing applications.
