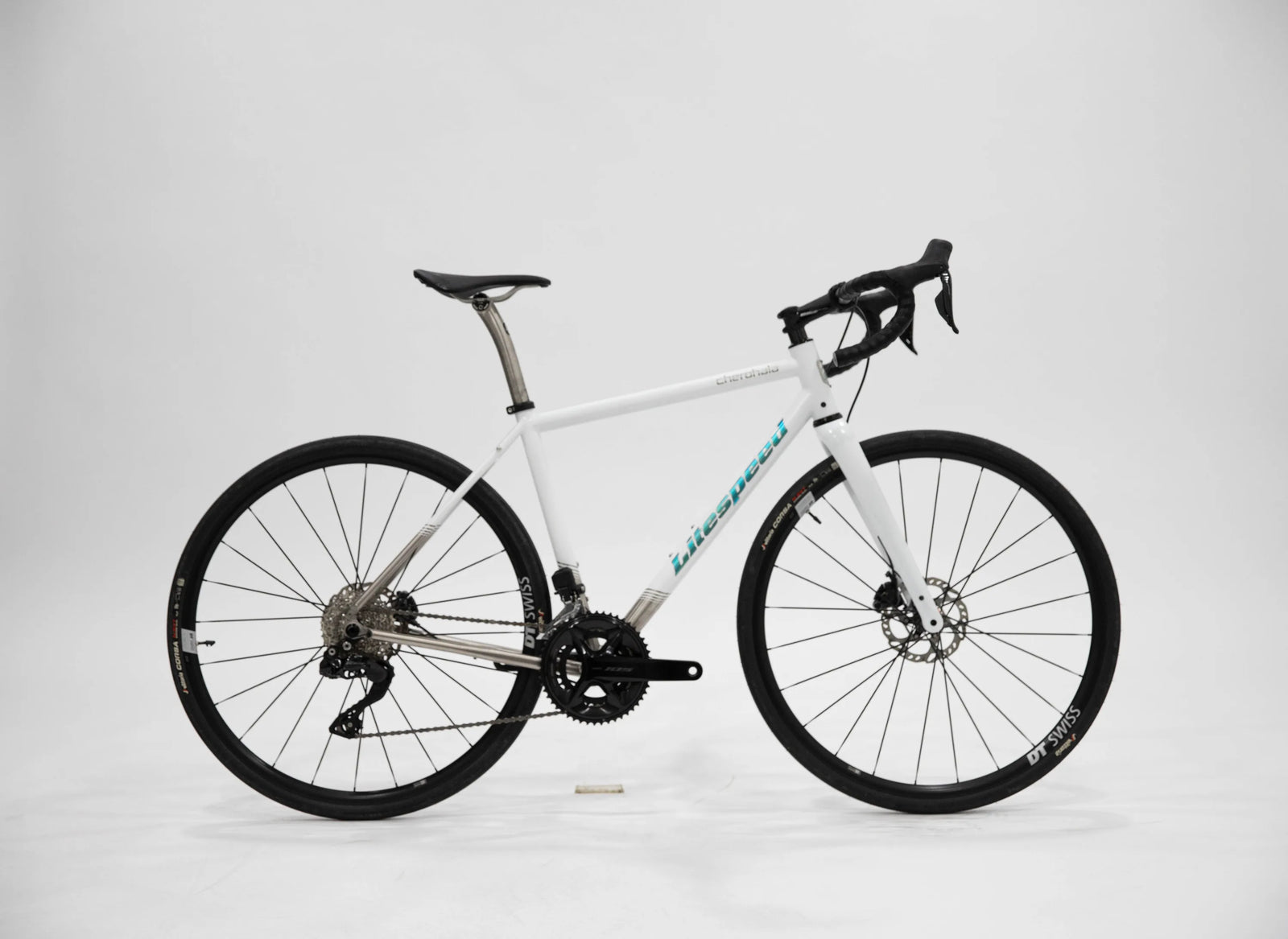

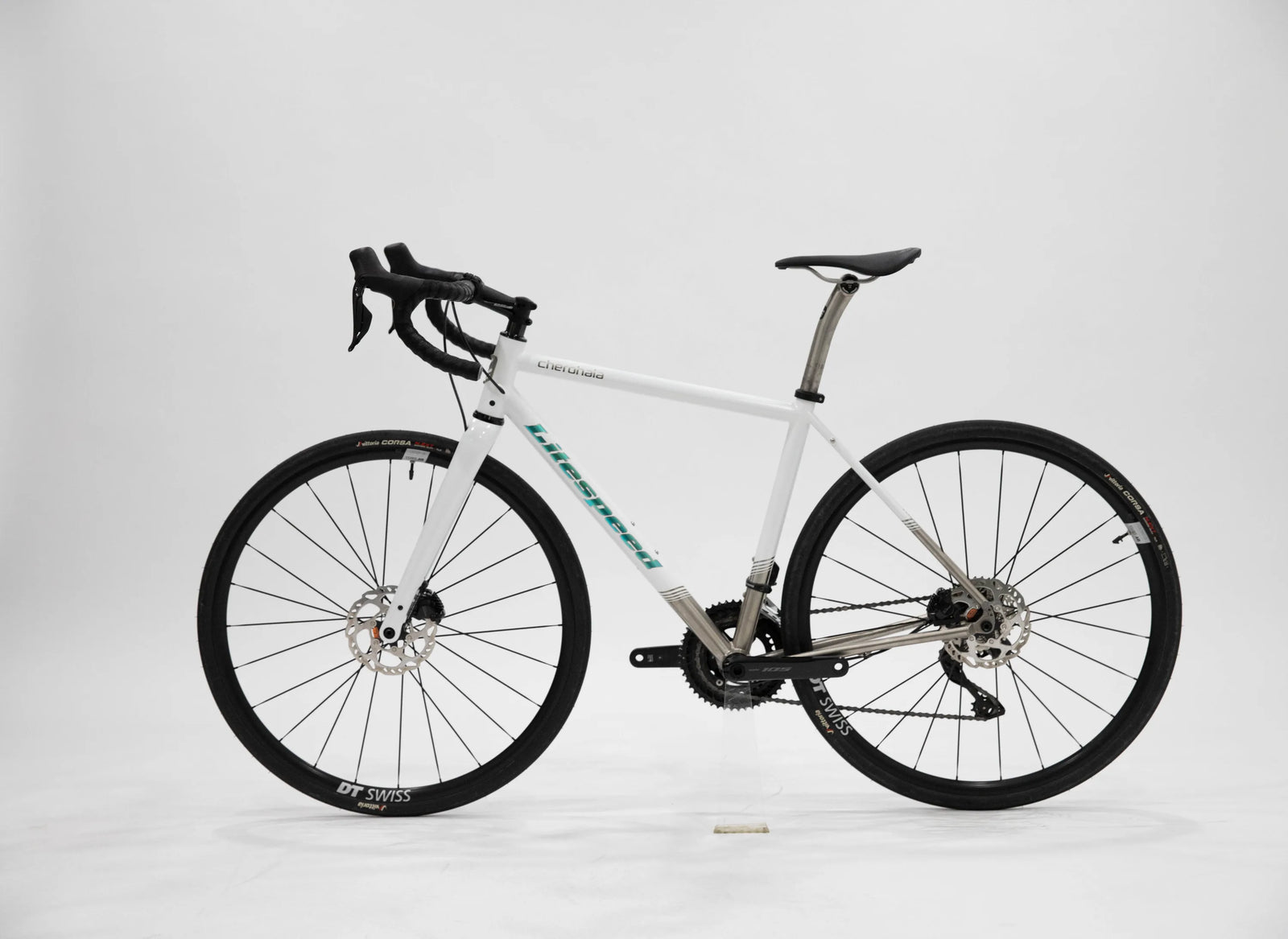

CHEROHALA 105 DI2 | SIZE M

Name: Cherohala 105 Di2 | Size M
Brand: Litespeed Bicycles
Price: 4499.0 USD
Availability: InStock

Only One Available

$4,499.00 USD $4,499.00 MSRP $6,398.00

[LS-289] Cherohala (M, White Cerakote/ Green Ano, Shimano 105 Di2 12 Spd, DT Swiss E 1800 Spline Disc, Jet Black, Cane Creek 50 Series, Selle Italia Novus Boost Evo Superflow, Rack Mounts, Ti Seatpost - 20mm Offset - 300mm Length, Pressfit System, No Upgrade)

Note: Demo Bikes do not come with Bottle Cages or Pedals

In stock Out of stock

EXPLORE THE DETAILS

Frame & Fork Specs

Frame

Frame Material	Superform FW 3AL/2.5V Titanium Tubeset
Frame Weight	948-1,049g* (Size M)
Recommended Rider Weight Limit	85 kg / 187 lb
BB Standard	T47 (BSA Optional Upgrade)
Seatpost Diameter	31.6mm
Derailleur Hanger	UDH (SL Ti Optional Upgrade)
Front Derailleur Mount	34.9mm Clamp-on
Cable Routing	Fully-Integrated

Axle Specs

Front Spacing	12x100mm
Front Axle Spec	M12 x 1.5, 120-125mm
Rear Spacing	12x142mm
Rear Axle Spec	M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (2x - Shimano)	54/40t
Max Chainring Size (2x - SRAM)	56/43t
Max Chainring Size (1x)	46t

Brakes

Rotor Max Size (Front)	160mm
Rotor Max Size (Rear)	160mm

Fork

Fork Offset	47mm
Rigid Fork Length	381mm

Tire Clearance

Max Tire Size	700 x 35mm

Mounts

Downtube Water Bottle Bolts	2
Seattube Water Bottle Bolts	2
Rack Mount	No

* Lightest configuration uses BSA bottom bracket, Litespeed SL Ti dropouts, and anodized headbadge graphic.


Size	XS	S	M	ML	L	XL
A - Stack	50cm	52cm	54cm	56cm	59cm	62cm
B - Reach	37.5cm	38cm	38.5cm	39cm	39.5cm	40cm
C - Standover Height	67.6cm	70.3cm	73.1cm	76.1cm	79.5cm	83.4cm
D - Top Tube Length (Virtual Horizontal)	51.4cm	52.9cm	54.5cm	55.6cm	57cm	59cm
E - Seat Tube Angle	74.5°	74°	73.5°	73.5°	73.5°	73°
F - Seat Tube Length	40cm	43cm	46cm	49.5cm	53cm	57cm
G - Head Tube Angle	71°	72°	73°	73°	73°	73°
H - Head Tube Length	8.5cm	10.2cm	12.1cm	14.2cm	17.3cm	20.7cm
I - BB Drop	7.4cm	7.4cm	7.1cm	7.1cm	7.1cm	6.8cm
J - Front Center	57.9cm	58.2cm	57.8cm	58.9cm	60.3cm	61.8cm
K - Chainstay Length	41.5cm	41.5cm	41.5cm	41.5cm	41.5cm	41.5cm
L - Wheelbase	98.3cm	98.6cm	98.2cm	99.3cm	100.8cm	102.3cm
M - Fork Offset	5cm	5cm	4.3cm	4.3cm	4.3cm	4.3cm
N - Trail (w/ 28mm tire)	6.5cm	5.9cm	6cm	6cm	6cm	6cm

147cm 58 - 157cm 62

157cm 62 - 165cm 66

165cm 66 - 175cm 69

173cm 68 - 180cm 71

178cm 71 - 188cm 74

188cm 74 - 198cm 76

The Coll del Reis comes from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

2x maximum chainring size is 54/40t (Shimano) or 56/43t (SRAM). 1x maximum chainring size is 46t.

The Coll dels Reis is designed around 700c x 28mm-32mm tires. It has clearance to fit road tires up to 35mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Coll dels Reis features extensive titanium tube manipulation to achieve its incredibly low weight. The titanium wall thicknesses are precisely controlled along the full length of each tube to bring down weight. For optimal performance and handling, these tubes must be designed around riders of a certain weight.

Riders heavier than the 85kg/187lb weight limit may experience excessive frame flex, which will lead to a suboptimal riding experience. If you're over the Coll dels Reis' weight limit, we suggest trying our Spezia, which is nearly as light, significantly stiffer, and has no rider weight limit.

The Coll dels Reis is built with Litespeed's Superform FW tubeset. Superform FW is a premier featherweight titanium tubeset used exclusively on the world’s lightest titanium bikes: the Coll dels Reis and the Ghisallo. Superform FW is an aerospace-grade 3AL/2.5V titanium tubeset featuring extreme multi-dimensional shaping and wall-thickness reduction to maximize both ride quality and weight reduction.
