Spezia Frame

Read Reviews

A whirlwind of machinery and physics that makes every element of the ride an unmitigated joy. We’ve created a new hallmark in all-around high-performance road riding: the Spezia.

$4,295

Lightest Weight Performance Road Design
Elite-Tier Shaped 6AL/4V Multiform Top Tube
Lightweight Butted Headtube & BB
25-35mm Tire Clearance

The Technology


The Spezia brings aerospace-grade titanium road bike construction to its absolute performance zenith. Our lightest disc brake road model—over 200 grams lighter than any other titanium disc brake road bike made today. All Spezia tubesets have wall thicknesses adjusted in-house to meet exacting size-specific parameters and precise weight standards

Advantage of Modern Performance


Every advantage that the Spezia represents is on full display; from the externally butted headtube to shaping. It’s all there for you to behold. The Spezia is finished with true modern performance geometry, a tire clearance of 35mm, and lowered chainstays

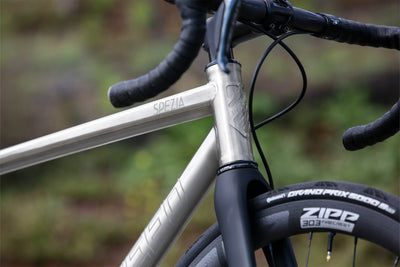

6AL/4V Handcrafted Toptube


The centerpiece of the Spezia is a true Litespeed exclusive technology: our 6AL/4V sheet-multiformed titanium top tube. Handcrafted from a flat sheet into a tubeset, our 6AL/4V sheet top tube is lighter than a standard tube yet delivers greater tensile strength and lateral stiffness. The result is increased rigidity when climbing and sprinting, allowing for confident control on descents.

Second slide

Every Ride Amplified — Meet The Spezia

Spezia Frame

$4,295.00 USD
Size Guide

Spezia Frame

Features

All the details on frame geometry, wheelsets, components, & more.

  • 6AL/4V top tube and 3AL/2.5V titanium frame with size-specific tubesets, each with targeted wall thickness controlled, drawn and tuned per size to attain accurate weight savings and ensure consistent performance
  • Lightest production titanium disc brake road frame—1,120 grams (size medium)
  • Multiform top tube: a high-tensile 6AL/2.5V sheet-formed tube, delivering unmatched stiffness and unparalleled handling advantage
  • Triaxially ovalized downtube shaped to deliver performance benefit, along with drag reduction advantage
  • Butted headtube and bottom bracket for weight savings
  • Functionally ovalized shaped seatstays
  • Titanium dropouts, shelled two-piece disc brake mount, headtube and bottom bracket designed and CNC machined in-house to deliver optimal strength-to-weight performance
  • Optimized for 25mm to 35mm tires
  • Shimano Di2 or SRAM eTap AXS specific design
  • PF30 bottom bracket shell, with T47 threaded bottom bracket upgrade available
  • Bright Brushed frame finish provided standard
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Average weight for size medium frame: 1,120 grams

Geometry

CM IN

The Spezia is finished in a true modern performance geometry with tire clearance to 35mm, lowered chainstays, a minimally elevated stack for proper ride height, and a snug rear triangle for sweet-spot balance, whether climbing or descending.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.2 72.0° 74.5° 16.9 16.3 2.8 38.3 22.4 1.8 27.4 4.2 20.5 14.6 90 -
S 20.8 72.5° 74.0° 17.7 16.3 2.8 38.5 22.6 1.8 28.1 4.7 21.1 14.8 90 -
M 21.4 73.0° 73.5° 18.9 16.3 2.8 38.7 22.8 1.8 29.5 5.5 21.9 15.0 100 -
ML 22.1 73.0° 73.5° 20.1 16.3 2.8 39.4 23.5 1.8 30.3 6.5 22.8 15.4 100 -
L 22.8 73.0° 73.25° 21.3 16.3 2.8 40.0 24.1 1.8 31.5 7.7 24.0 15.6 110 -
XL 23.5 73.0° 73.0° 22.4 16.3 2.7 40.6 24.5 1.8 32.9 9.1 25.2 15.7 110 -
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 51.4 72.0° 74.5° 43.0 41.5 7.1 97.2 56.8 4.5 69.6 10.6 52.0 37.0 90 -
S 52.8 72.5° 74.0° 45.0 41.5 7.1 97.7 57.3 4.5 71.5 11.9 53.5 37.5 90 -
M 54.4 73.0° 73.5° 48.0 41.5 7.1 98.4 57.9 4.5 75.0 13.9 55.5 38.0 100 -
ML 56.2 73.0° 73.5° 51.0 41.5 7.1 100.2 59.7 4.5 77.0 16.5 58.0 39.0 100 -
L 57.9 73.0° 73.25° 54.0 41.5 7.1 101.6 61.1 4.5 80.0 19.6 61.0 39.5 110 -
XL 59.6 73.0° 73.0° 57.0 41.5 6.8 103.1 62.2 4.5 83.5 23.1 64.0 40.0 110 -

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
