Name: Cherohala Frame
Brand: Litespeed Bicycles
SKU: CHEROHALA-FRAME
Price: 2599.0 USD
Availability: InStock

Cyber Week Savings

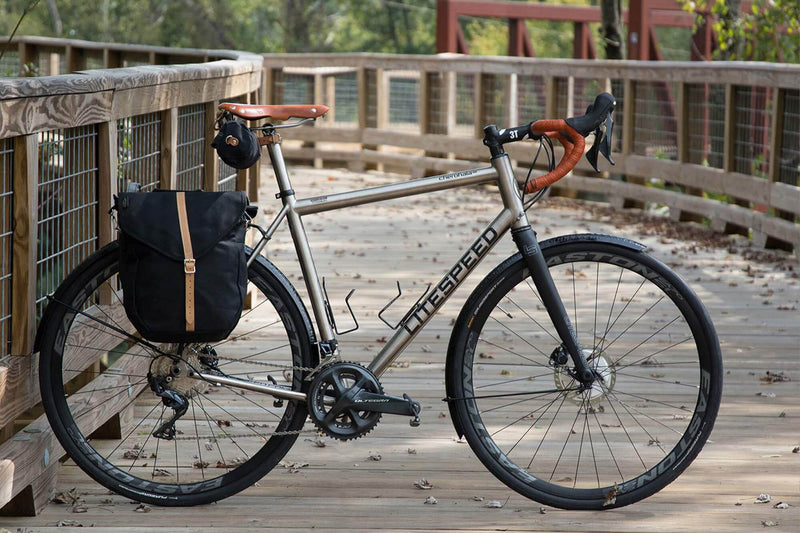

Cherohala Frame

See the Cherohala Frame overview

Component requests

Note any additional requests here

Your total:

YOUR BUILD HIGHLIGHTS

LIFETIME WARRANTY

Ride with peace of mind knowing that your Litespeed bike is covered for life by our rider-first warranty.

Learn more

EASY FINANCING

Turn your dream bike into reality with easy financing, quick approvals, and low monthly payments that fit your budget.

Learn more

EXPERT HELP

Have questions? Our team of experts is ready and waiting to help. Simply call, email, or chat with us and get the answers you seek.

Learn more

TRULY MADE YOURS

From our etched finish upgrade to bottle boss and fuel storage placement. Prefer a 1x configuration, or a custom paint treatment to set your Cherohala apart? How about option for bigger tires or different gearing? Our team of craftsmen in Tennessee are ready to make your bike truly yours, with fully customizable options available.

ALL ROAD CAPABILITY

Whether it’s loading up for a weekend of bikepacking or a big multi-state traverse, getting lost is what the Cherohala was made for (but we recommend bringing your GPS just in case). In the same breath, it’s very much a road-ready ride that climbs and accelerates well, and handles fast, sweeping descents with aplomb.

TUBESET WALL THICKNESS

With a slightly more relaxed geometry, yet a lively titanium ride that’s poised to play, we’ve achieved day-long ride nirvana in our all-road Cherohala. Sourcing our top-shelf 3Al/2.5V titanium tubing, our team adjusted the tubeset wall thickness, strategically allowing for thin walls wherever possible.

EXPLORE THE DETAILS

The Cherohala is an all-road bike built for long, adventurous rides. It blends the efficiency and comfort of an endurance bike with the tire clearance of a gravel bike to handle the widest mix of terrain.

Frame weight: 1,467 grams (size medium)
Pure LW 3AL/2.5V titanium tubeset
Fork includes built-in fender mounts with rack mounts available as an add-on
PF30 bottom bracket - threaded T47 upgrade available
Maximum tire size: 38mm*
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, wheel, and fork combination.

	XS	S	M	M/L	L	XL
Top Tube Length	n/a	52.3	53.4	55.2	57	58.9
Head Tube Length	n/a	10.6	13.2	16.2	18.6	21.7
Seat Tube Angle	n/a	74.5°	74.5°	74.0°	73.5°	73.0°
Head Tube Angle	n/a	71.0°	71.0°	71.5°	72.0°	72.0°
BB Drop	n/a	7.6	7.1	7.1	7.1	6.6
Chainstay Length	n/a	43	43	43	43	43
Wheelbase	n/a	100.9	102.4	103.4	104.2	105.7
Front Center	n/a	59.1	60.4	61.4	62.2	63.6
Standover Height	n/a	73.4	76.9	79.7	82.5	85.8
Fork rake	n/a	5	5	5	5	5
Seat Tube Length	n/a	46	49	52	55	58
Reach	n/a	37	37.5	38	38.5	39
Stack	n/a	55	57.5	60	62.5	65
Stem Length	n/a	90	100	100	110	110
Crank Length	n/a	170	172.5	172.5	175	175

Xs

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

Ml

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

Xl

188cm 74 - 198cm 76

When you select tubeless-ready wheels and tires, the bike will come from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

If you want confirmation whether your specific wheel/tire selection will come tubeless, feel free to contact us via email or chat.

2x maximum chainring size is 50/34t. 1x maximum chainring size is 50t.

The Cherohala is designed around 700c x 35mm-38mm tires. It has clearance to fit road and gravel tires up to 38mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Arenberg is an endurance bike designed for long-distance riding, riding on rough roads, and general all-around road riding.

The Cherohala is an all-road bike designed for long-distance riding and riding a mix of paved and unpaved surfaces.

The Arenberg and Cherohala titanium frames are very similar in terms of weight, construction, and compliance. The main difference is that the Arenberg's geometry and handling are designed around 28-35mm road tires, while the Cherohala's geometry and handling are designed around 35-38mm road and gravel tires. The ideal frame will depend on your preferred tire size and riding terrain.

The Cherohala is built with Litespeed's Pure LW tubeset. Pure LW is a lightweight titanium tubeset made from aerospace-grade 3AL/2.5V titanium. It is formed, butted, and bent in-house just like our Superform tubes, but omits the multi-dimensional shaping and variable wall-thickness to reduce cost. Pure LW is the ideal choice for bikes that prioritize comfort and durability, while remaining competitively lightweight.
