Capable Endurance Road

Cherohala

Read Reviews

Find that thing that reaches into your soul, the thing on two wheels that makes you happy. On road—or off—it’s just around the bend… on the Cherohala.

30-Day Returns Lifetime Warranty Financing
LIMITED TIME: GET 20% OFF!

AS LOW AS $3,036!

Endurance Road/ Light Gravel Versatility
Standard-Tier Shaped 3AL/2.5V Titanium Tubing

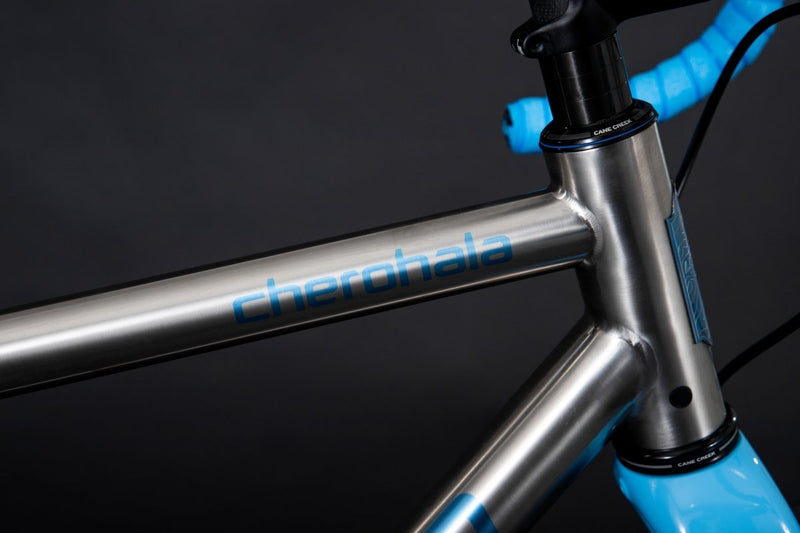

CNC-machined Headtube & BB
38mm Tire Clearance
Overview Features Components Geometry Gallery Reviews

Tubeset Wall Thickness

With a slightly more relaxed geometry, yet a lively titanium ride that’s poised to play, we’ve achieved day-long ride nirvana in our all-road Cherohala. Sourcing our top-shelf 3Al/2.5V titanium tubing, our team adjusted the tubeset wall thickness, strategically allowing for thin walls wherever possible.

All Road Capability

Whether it’s loading up for a weekend of bikepacking or a big multi-state traverse, getting lost is what the Cherohala was made for (but we recommend bringing your GPS just in case). In the same breath, it’s very much a road-ready ride that climbs and accelerates well, and handles fast, sweeping descents with aplomb.

Truly Made Yours

From our etched finish upgrade to bottle boss and fuel storage placement. Prefer a 1x configuration, or a custom paint treatment to set your Cherohala apart? How about option for bigger tires or different gearing? Our team of craftsmen in Tennessee are ready to make your bike truly yours, with fully customizable options available.

Second slide

Litespeed Cherohala

Cherohala Bike with Skye Anodized Graphics

Cherohala

$3,795.00 USD
$3,036.00 $3,795.00
Size Guide

Cherohala

More details

Features

All the details on frame geometry, wheelsets, components, & more.

  • Precision-fabricated, cold-worked, tapered, shaped and oversize 3AL/2.5V titanium
  • Compatible with 700c wheels with clearance up to 38mm
  • Fork includes built-in fender mounts with rack mounts available as an add-on
  • 160mm rotors front and rear
  • Shift cable routing: mechanical external or electronic internal
  • Di2-compatible, with Di2-specific build available upon request
  • Flat mount disc brake-specific frame design
  • Compact 50/34 crankset
  • PF30 bottom bracket shell, with T47 bottom bracket upgrade available
  • Internal rear brake cable routing
  • Replaceable derailleur hanger
  • Frame sizes: S, M, ML, L, XL and custom
  • Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
  • Average weight for a size medium frame: 1,467 grams
  • 12 x 100 front thru axle, 142 x 12mm rear thru axle

Component Kits

Every Litespeed is fully customizable and offeres multiple build kits, so you can meet your ride needs. If you seek more modifications, chat with our team to see how we can further customize your bike. Select a groupset...

Headset Cane Creek 40 Series
Stem FSA Gossamer
Handlebar FSA Gossamer Wing Compact
Bar Tape Select in Builder
Seatpost FSA Gossamer Alloy 20mm Offset
Saddle Fizik Vento Argo R5 S-Alloy
Shifters Shimano 105 R7120
Rotors Shimano RT54 160mm Centerlock
Front Derailleur Shimano 105 R7100
Rear Derailleur Shimano 105 R7100
Crankset 105 R7100 50/34
Cassette 105 R7101 11-34 12Spd
Chain Shimano HG701
Bottom Bracket Praxis
Tires Vittoria Corsa N.EXT TLR 32c BLK
Wheelset Select in Builder
Brakeset Shimano 105 R7170
Fork Litespeed Carbon with Fender Mounts
Headset Cane Creek 40 Series
Stem FSA Gossamer
Handlebar FSA Gossamer Wing Compact
Bar Tape Select in Builder
Seatpost FSA Gossamer Alloy 20mm Offset
Saddle Fizik Vento Argo R5 S-Alloy
Shifters Shimano 105 R7170 Di2 12 spd
Rotors Shimano RT54 160mm Centerlock
Front Derailleur Shimano 105 R7150 Di2 12 spd
Rear Derailleur Shimano 105 R7150 Di2 12 spd
Crankset Shimano 105 R7100 50/34 12 spd
Cassette Shimano 105 R7100 11-34 12 spd
Chain Shimano M7100 12 spd
Bottom Bracket Praxis
Tires Vittoria Corsa N.EXT TLR 32c BLK
Wheelset Select in Builder
Brakeset Shimano 105 R7170
Fork Litespeed Carbon
Headset Cane Creek 40 Series
Stem FSA Gossamer
Handlebar FSA Gossamer Wing Compact
Bar Tape Select in Builder
Seatpost Select in Builder
Saddle Fizik Vento Argo R5
Shifters SRAM Rival eTap AXS
Rotors SRAM Centerline X 160mm
Front Derailleur SRAM Rival eTap AXS 12spd
Rear Derailleur SRAM Rival eTap AXS 12spd
Crankset SRAM Rival 2x 46-33 12spd
Cassette SRAM Rival 10-36 12spd
Chain SRAM Rival 12spd
Bottom Bracket SRAM T47 DUB External
Tires Continental Ultrasport3 28c Folding
Wheelset Select in Builder
Brakeset SRAM Rival eTap AXS HRD
Fork Litespeed Carbon
Headset Cane Creek 40 Series
Stem FSA Energy
Handlebar FSA Energy Compact
Bar Tape Select in Builder
Seatpost FSA SLK Carbon 20mm offset
Saddle WTB Volt Medium Cromoly
Shifters Ultegra Di2 8170 12 spd
Rotors Shimano CL800 160mm
Front Derailleur Ultegra Di2 8150 12 spd
Rear Derailleur Ultegra Di2 8150 12 spd
Crankset Ultegra R8100 50/34 12 spd
Cassette Ultegra R8100 11-34 12 spd
Chain Shimano M8100 12 spd
Bottom Bracket Praxis
Tires Vittoria Corsa N.EXT TLR 32c BLK
Wheelset Select in Builder
Brakeset Ultegra 8170
Fork Litespeed Carbon with Fender Mounts

Geometry

CM IN

The Litespeed Cherohala sports a geometry that makes for a light, agile and responsive bike that’s dialed for the road—but fully gravel capable.

Select Size
S M ML L XL
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
S 20.6 71.0° 74.5° 18.1 16.9 3.0 39.7 23.3 2.0 28.9 4.2 21.7 14.6 90 170
M 21.0 71.0° 74.5° 19.3 16.9 2.8 40.3 23.8 2.0 30.3 5.2 22.6 14.8 100 172.5
ML 21.7 71.5° 74.0° 20.5 16.9 2.8 40.7 24.2 2.0 31.4 6.4 23.6 15.0 100 172.5
L 22.4 72.0° 73.5° 21.7 16.9 2.8 41.0 24.5 2.0 32.5 7.3 24.6 15.2 110 175
XL 23.2 72.0° 73.0° 22.8 16.9 2.6 41.6 25.0 2.0 33.8 8.5 25.6 15.4 110 175
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
S 52.3 71.0° 74.5° 46.0 43.0 7.6 100.9 59.1 5.0 73.4 10.6 55.0 37.0 90 170
M 53.4 71.0° 74.5° 49.0 43.0 7.1 102.4 60.4 5.0 76.9 13.2 57.5 37.5 100 172.5
ML 55.2 71.5° 74.0° 52.0 43.0 7.1 103.4 61.4 5.0 79.7 16.2 60.0 38.0 100 172.5
L 57.0 72.0° 73.5° 55.0 43.0 7.1 104.2 62.2 5.0 82.5 18.6 62.5 38.5 110 175
XL 58.9 72.0° 73.0° 58.0 43.0 6.6 105.7 63.6 5.0 85.8 21.7 65.0 39.0 110 175

Cherohala Up Close

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
