Hardtail Trail

Pinhoti III

Read Reviews

Go Big. Big miles. Big Adventure. Big smiles. From marathon race to weekend trail-slaying with friends, the Pinhoti III is poised to work… or play.

$4,825

Hardtail Trail & Adventure
Pro-Tier Aggressively-shaped 3AL/2.5V Titanium Tubing
120mm to 140mm Travel
CNC-Machined Headtube & BB

Tube Shaping Designed For Trail Smashing


The Pinhoti III gains a whole new range of tube shaping. From curves of the downtube and seattube, to the subtle shaping along the stays, all tubesets have been updated in the interest of performance gains, namely greater vibration damping capacity.

Designed And Built For The Next Trail


To accommodate for a wide range of tire and chainring clearance, the Pinhoti III employs an asymmetric dropped chainstay receiving a striking new CNC-machined titanium chainstay yoke.

More Confidence, More Agility, More Comfort, More Fun


We’ve updated the geometry from the original Pinhoti to deliver confidence that allows you to go with open, reckless abandon. Tubeset shaping enhances comfort for the long ride. As trail riding has evolved, our engineers got more creative, and did a complete makeover, modernizing our signature trail model.

Second slide

A Legacy Hardtail

Pinhoti III

$4,825.00 USD
Size Guide

Pinhoti III

Features

All the details on frame geometry, wheelsets, components, & more.

  • 3AL/2.5V tubeset, with all new cold-worked shaping for tuned compliance and performance
  • Oversized 3AL/2.5V downtime

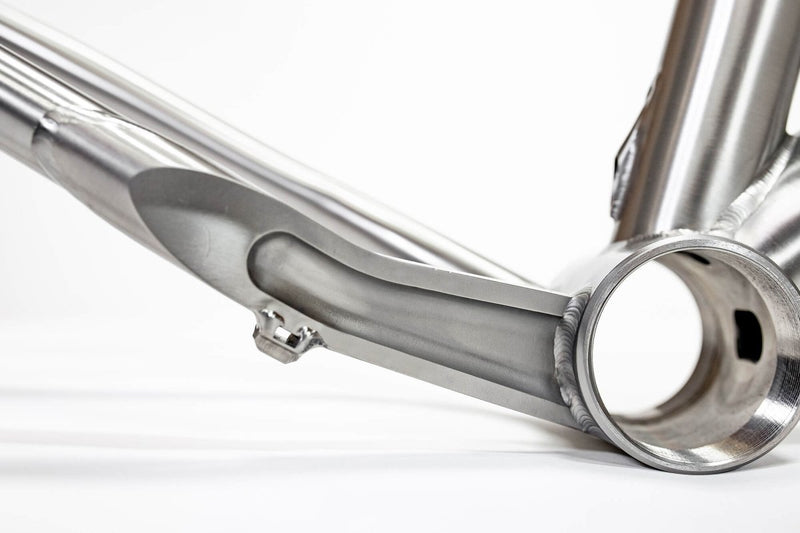

  • Asymmetric and dropped drive-side chainstay
  • CNC-Machined titanium chainstay yoke
  • Updated dropper cable integration port
  • Two-tone finish upgrade option
  • Updated geometry
  • Internally butted and oversized head tube
  • Boost spacing, with 12 x 148mm rear thru axle

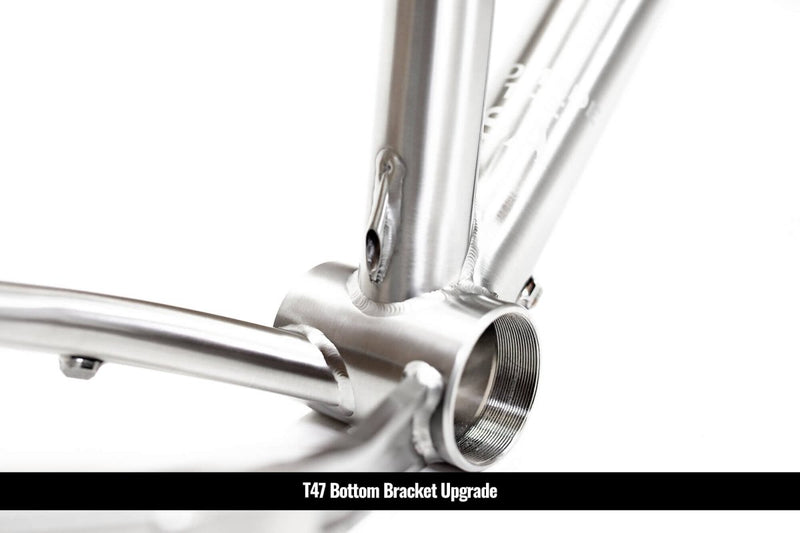

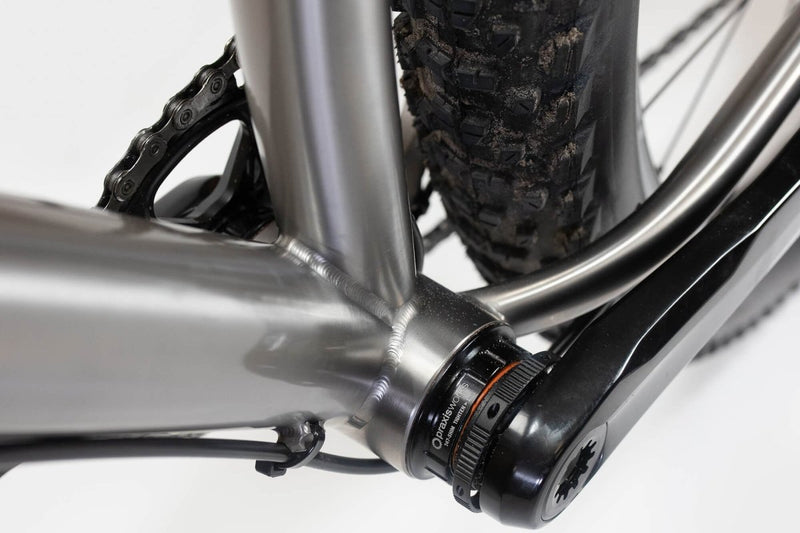

  • PF30 bottom bracket shell, with T47 threadedbottom bracket upgrade available
  • Available in sizes XS, S, M, L, XL and custom
  • 29” wheel up to 29 x 2.5 tire
  • 27.5+” wheel up to 27.5 x 3.0 tire
  • Optimized for 120mm to 140mm fork travel
  • Average weight for size medium frame: 1,649 grams
  • Sizes L and XL include seatube bottle mounts

Component Kits

Every Litespeed is fully customizable and offeres multiple build kits, so you can meet your ride needs. If you seek more modifications, chat with our team to see how we can further customize your bike. Select a groupset...

Headset Cane Creek 40 Series Tapered
Stem Race Face Aeffect 35 70mm
Handlebar Race Face Aeffect R35 780/20mm rise
Grips ESI Chunky
Seatpost Race Face Aeffect Dropper 125mm
Saddle WTB Volt Medium Steel
Shifters SLX M7100 12 Speed
Rotors SLX RT700 180mm
Rear Derailleur SLX M7100 12 Speed
Crankset SLX 7120 32T
Cassette SLX M7100 10-51 12 Speed
Chain SLX M7100 12 Speed
Bottom Bracket Praxis
Front Tire Maxxis Rekon 29X2.6 Tubeless
Rear Tire Maxxis Rekon 29X2.4 Tubeless
Wheelset Select in Builder
Brakeset SLX M7120
Fork Select in Builder
Headset Cane Creek 40 Series Tapered
Stem Race Face Aeffect 35 70mm
Handlebar Race Face Aeffect R35 780/20mm rise
Grips ESI Chunky
Seatpost Race Face Aeffect Dropper 125mm
Saddle WTB Volt Medium Cromoly
Shifters XT M8100 12 speed
Rotors XT MT800 180mm
Rear Derailleur XT M8100 12 speed
Crankset XT M8120 32T
Cassette XT M8100 10-51T 12 speed
Chain XT M8100 12 speed
Bottom Bracket Praxis M30
Front Tire Maxxis Rekon 29X2.6 Tubeless
Rear Tire Maxxis Rekon 29X2.4 Tubeless
Wheelset Select in Builder
Brakeset XT M8120
Fork Cane Creek Helm MKII Air 130mm
Headset Cane Creek 110 ZS44/EC44
Stem Race Face Turbine 35.0 70mm
Handlebar Race Face Next R 35 Carbon: 35.0 x 800 with 20mm rise
Grips ESI Chunky
Seatpost Fox Transfer Performance 125mm
Saddle WTB Volt Medium Titanium
Shifters XTR M9100 12 speed
Rotors XTR MT900 180mm
Rear Derailleur XTR M9100 12 speed
Crankset XTR M9120 32T
Cassette XTR M9100 10-51T 12 speed
Chain XTR M9100 12 speed
Bottom Bracket Praxis
Front Tire Maxxis Rekon 29X2.6 Tubeless
Rear Tire Maxxis Rekon 29X2.4 Tubeless
Wheelset Select in Builder
Brakeset XTR M9120
Fork Cane Creek Helm MKII Air 130mm

Geometry

CM IN

The Pinhoti hardtail has amazing vertical compliance with exceptional torsional rigidity. It’s geometry results in an agile platform for quick, responsive handling.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 22.3 67.0° 74.5° 14.0 16.9 2.2 43.3 26.8 1.7 27.5 4.0 23.6 15.7 70 170
S 23.1 67.0° 74.5° 14.0 16.9 2.2 44.5 27.8 1.7 28.1 4.1 25.0 16.1 70 170
M 24.4 67.5° 74.0° 16.0 16.9 2.2 45.3 28.6 1.7 29.8 4.2 25.2 17.1 70 170
L 25.5 67.5° 74.0° 18.0 16.9 2.2 46.5 29.7 1.7 31.5 4.7 25.6 18.1 70 175
XL 26.8 67.5° 73.5° 20.0 16.9 2.2 47.6 30.9 1.7 33.1 5.1 26.0 19.1 70 175
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 56.6 67.0° 74.5° 35.6 42.9 5.71 110 68.1 4.4 69.9 10.1 60.0 40.0 70 170
S 58.7 67.0° 74.5° 35.6 42.9 5.71 113 70.6 4.4 71.4 10.4 63.5 41.0 70 170
M 62.0 67.5° 74.0° 40.6 42.9 5.71 115 72.6 4.4 75.7 10.7 64.0 43.5 70 170
L 64.8 67.5° 74.0° 45.7 42.9 5.71 118 75.4 4.4 80.0 11.9 65.0 46.0 70 175
XL 68.1 67.5° 73.5° 50.8 42.9 5.71 121 78.5 4.4 84.1 13.0 66.0 48.5 70 175

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
