The Road Ride For All

Arenberg

Read Reviews

The Arenberg maintains a rich heritage in the road range as one of the most iconic models in our history; a true road performer. And now, it’s back—reimagined for every rider, and better than ever.

$3,495

Endurance Road Design
Standard-Tier Shaped 3AL/2.5v Titanium Tubing
CNC-machined Headtube & BB
28-35mm Tire Clearance

Endurance Geometry


A relaxed riding position, matched with modern features like wide tire clearance allows you to go longer while maintaining the performance edge every Litespeed is known for.

Fully Controlled Tubesets


We maintain the strictest standards to ensure the best ride. That’s why we go to the effort of not only using size-specific tubesets on the Arenberg to ensure a consistent ride experience, every tubeset is tuned and adjusted to meet our strict wall thickness standards. All the performance, with zero excess weight.

Any Road, Every Road


With tire clearance up to 35mm, take it all on. From smooth tarmac to bone-shaking chip-seal pavement on rural roads, wide tires paired with the supple Arenberg titanium frame make for a Cloud 9 ride—one that’s more comfortable than any other out there.

Second slide

The Road Ride For All - Meet the Arenberg

Arenberg

$3,495.00 USD
Size Guide

Arenberg

Features

All the details on frame geometry, wheelsets, components, & more.

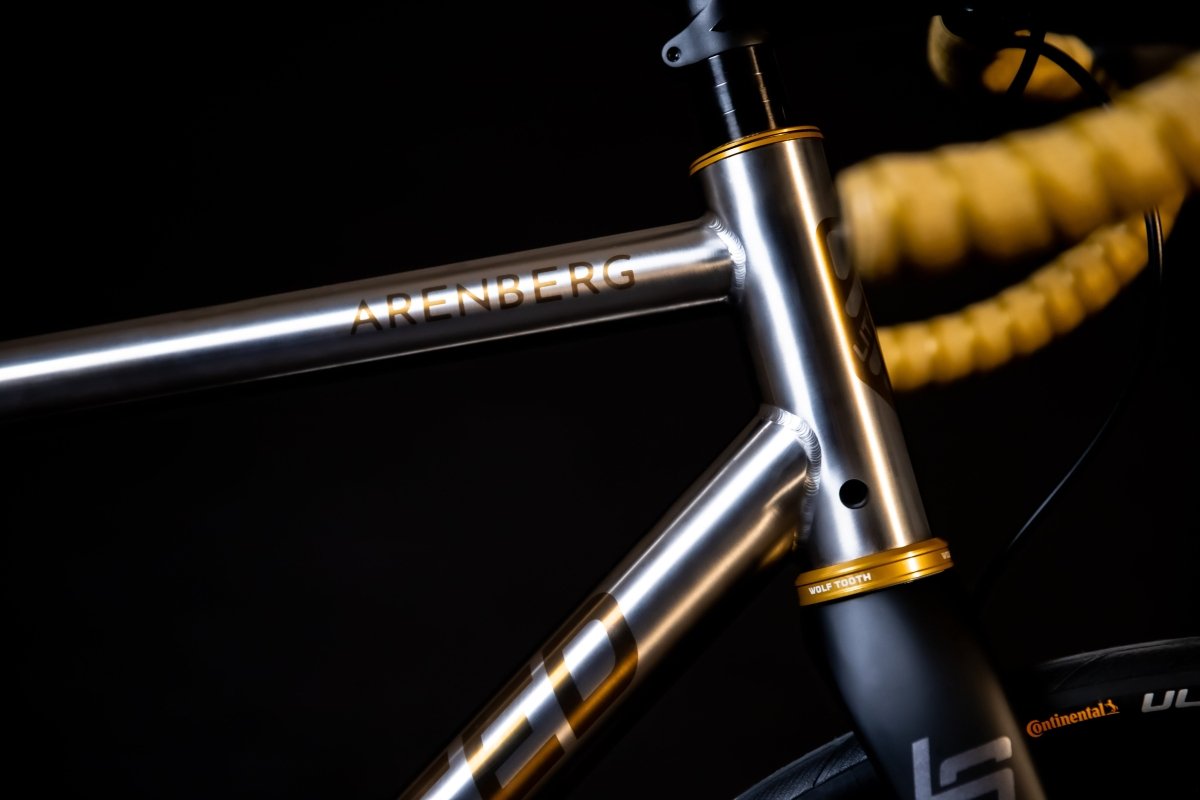

  • 3AL/2.5V titanium with size-specific tubesets, each with wall thickness controlled, drawn and tuned per size
  • Titanium dropouts, disc brake mount, headtube and bottom bracket designed and CNC machined in house at Litespeed to deliver optimal strength-to-weight
  • Clean and classic fastback seatstay design
  • Optimized for 28c to 35c tires
  • Shift cable routing: mechanical external or electronic internal
  • PF30 bottom bracket shell, with T47 threaded bottom bracket upgrade available
  • Bright Brushed frame finish provided standard
  • TiDize color anodization upgrade available
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
  • Average weight for size medium frame: 1,490 grams
  • Litespeed vinyl graphics provided standard, with up to nine color choices

Component Kits

Every Litespeed is fully customizable and offeres multiple build kits, so you can meet your ride needs. If you seek more modifications, chat with our team to see how we can further customize your bike. Select a groupset...

Headset Select in Builder
Stem FSA Gossamer
Handlebar FSA Gossamer Wing Compact
Bar Tape Select in Builder
Seatpost FSA Gossamer Alloy 20mm Offset
Saddle WTB Volt Steel
Shifters Shimano 105 R7000
Rotors Shimano RT70 160mm Centerlock
Front Derailleur Shimano 105 R7000
Rear Derailleur Shimano 105 R7000
Crankset Shimano 105 50/34
Cassette Shimano 105 R7000 11-30
Chain Shimano HG601
Bottom Bracket Praxis
Tires Continental Ultrasport3 28c
Wheelset Select in Builder
Brakeset Shimano 105 R7000
Fork Litespeed Carbon
Headset Select in Builder
Stem FSA Energy
Handlebar FSA Energy Compact
Bar Tape Select in Builder
Seatpost FSA SLK Carbon 20mm Offset
Saddle Fizik Vento Argo R5 S-Alloy 140 Black
Shifters Ultegra
Rotors Shimano RT800 160mm
Front Derailleur Ultegra
Rear Derailleur Ultegra
Crankset Ultegra R8000 50/34
Cassette R7000 11-30
Chain Shimano HG701
Bottom Bracket Praxis
Tires Continental Ultrasport3 28c Folding
Wheelset Select in Builder
Brakeset Ultegra
Fork Litespeed Carbon
Headset Select in Builder
Stem FSA Gossamer
Handlebar FSA Gossamer Wing Compact
Bar Tape Select in Builder
Seatpost FSA Gossamer Alloy 20mm Offset
Saddle WTB Volt Steel
Shifters Shimano 105 R7170 Di2 12 spd
Rotors Shimano RT70 160mm Centerlock
Front Derailleur Shimano 105 R7150 Di2 12 spd
Rear Derailleur Shimano 105 R7150 Di2 12 spd
Crankset Shimano 105 R7100 50/34 12 spd
Cassette Shimano 105 R7100 11-34 12 spd
Chain Shimano M7100 12 spd
Bottom Bracket Praxis
Tires Continental Ultrasport3 28c
Wheelset Select in Builder
Brakeset Shimano 105 R7170
Fork Litespeed Carbon
Headset Cane Creek 40 Series
Stem FSA Energy
Handlebar FSA Energy Compact
Bar Tape Select in Builder
Seatpost FSA SLK Carbon 20mm Offset
Saddle Fizik Vento Argo R5 S-Alloy 140 Black
Shifters Ultegra Di2 8170 12 spd
Rotors Shimano MT8100 CL 160mm
Front Derailleur Ultegra Di2 8150 12 spd
Rear Derailleur Ultegra Di2 8150 12 spd
Crankset Ultegra R8100 50/34 12 spd
Cassette Ultegra R8100 11-30 12 spd
Chain Shimano M8100 12 spd
Bottom Bracket Praxis
Tires Continental Ultrasport3 28c Folding
Wheelset Select in Builder
Brakeset Ultegra 8170
Fork Litespeed Carbon

Geometry

CM IN

Engineered with a slightly less-aggressive riding position than other models in the Litespeed line with the Arenberg per prepared to take on pitchy climbs, carve swooping descents with brilliant handling, and go for the town sprint.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.0 70.0° 74.5° 16.9 16.5 3.1 38.9 22.8 1.8 27.4 4.2 20.5 14.4 90 170
S 20.6 70.5° 74.0° 17.7 16.5 3.1 39.1 23.0 1.8 28.1 4.7 21.1 14.6 90 170
M 21.3 72.0° 73.5° 18.9 16.5 3.0 39.1 23.1 1.8 29.3 5.8 22.2 14.8 100 172.5
ML 21.9 72.5° 73.5° 20.1 16.5 3.0 39.4 23.4 1.8 30.4 6.8 23.2 15.0 100 172.5
L 22.5 72.5° 73.25° 21.3 16.5 2.9 40.1 24.0 1.8 31.7 8.1 24.4 15.2 110 175
XL 23.3 72.5° 73.0° 22.4 16.5 2.8 40.7 24.6 1.8 32.8 9.0 25.2 15.6 110 175
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 50.9 70.0° 74.5° 43.0 42.0 7.8 98.7 57.9 4.5 69.5 10.6 52.0 36.5 90 170
S 52.3 70.5° 74.0° 45.0 42.0 7.8 99.3 58.5 4.5 71.3 12.0 53.5 37.0 90 170
M 54.2 72.0° 73.5° 48.0 42.0 7.6 99.4 58.6 4.5 74.5 14.8 56.5 37.5 100 172.5
ML 55.5 72.5° 73.5° 51.0 42.0 7.6 100.2 59.4 4.5 77.2 17.2 59.0 38.0 100 172.5
L 57.2 72.5° 73.25° 54.0 42.0 7.4 101.8 60.9 4.5 80.4 20.6 62.0 38.5 110 175
XL 59.1 72.5° 73.0° 57.0 42.0 7.2 103.5 62.5 4.5 83.2 22.8 64.0 39.5 110 175

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
