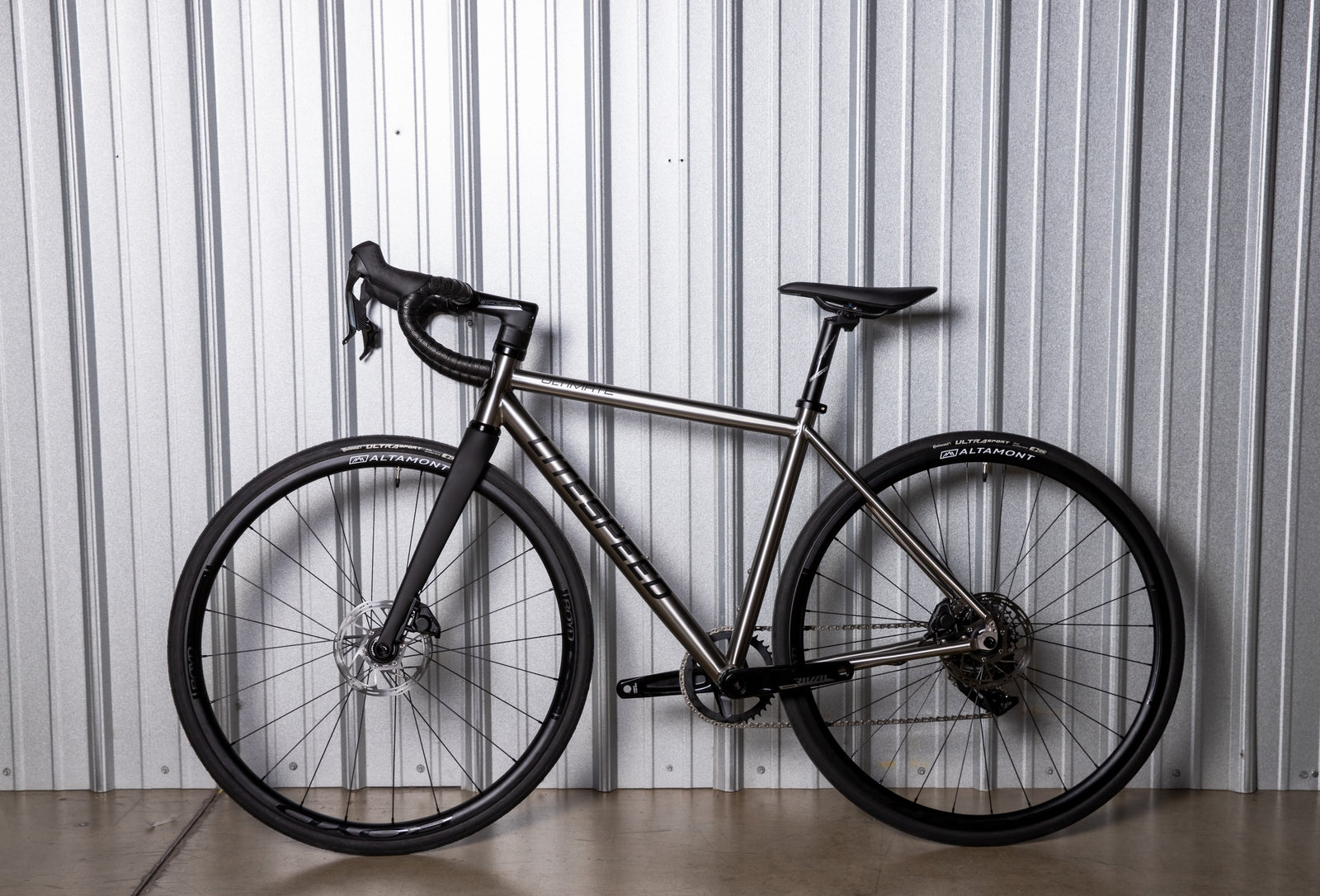

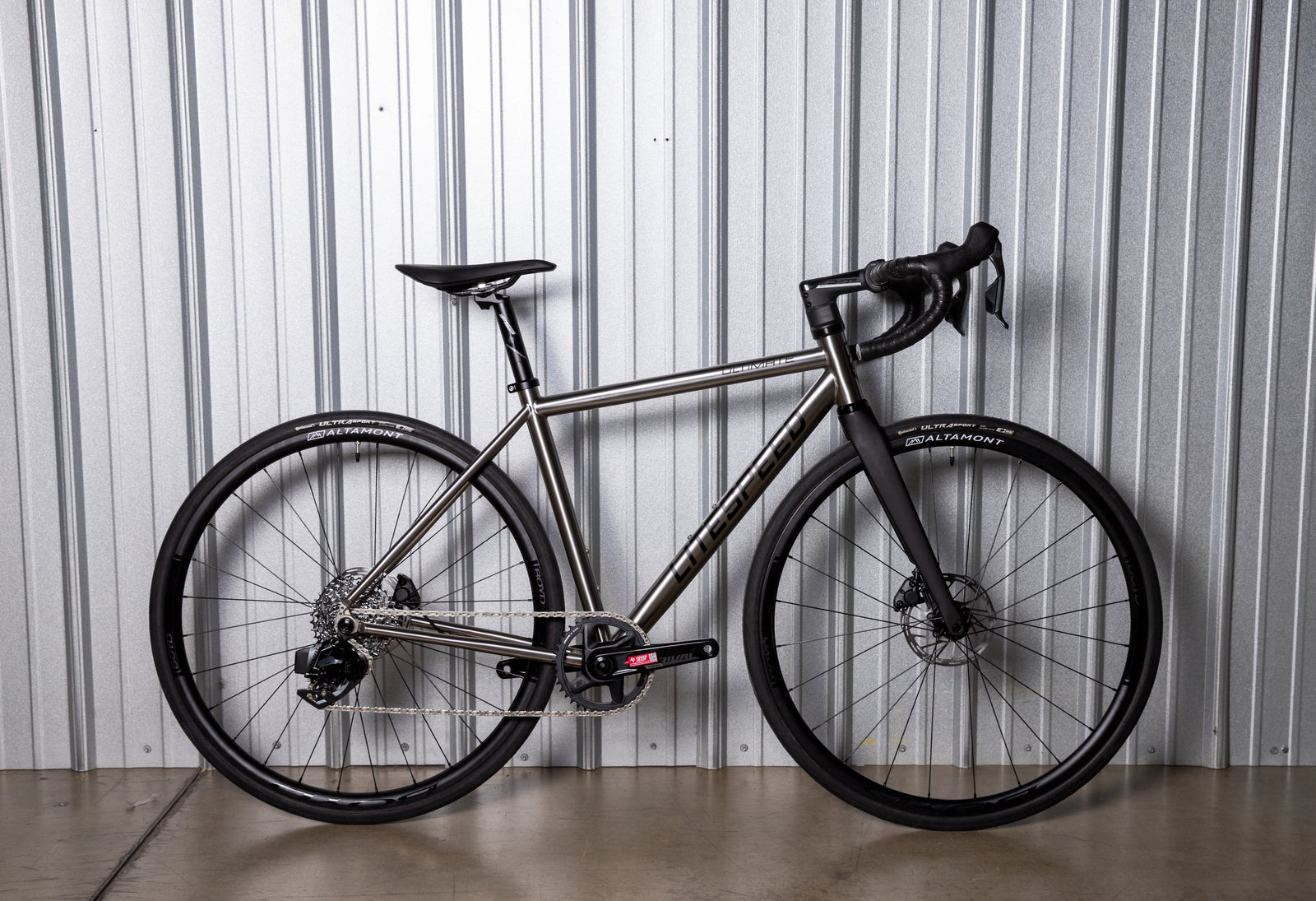

Ultimate Disc FI SRAM Rival E1 1x | Size SM

ULTIMATE DISC FI SRAM RIVAL E1 1X | SIZE SM

Name: Ultimate Disc FI SRAM Rival E1 1x | Size SM
Brand: Litespeed Bicycles
SKU: LS-283
Price: 4599.0 USD
Availability: InStock

$4,599.00 USD $4,599.00 MSRP $6,245.00

Ultimate Disc FI SRAM Rival E1 1x Road, Boyd Altamont, Litespeed FI Road, T47i BB Shell, Matte Black Graphics size Small

In stock Out of stock

EXPLORE THE DETAILS

Litespeed introduced the Ultimate in 1987, and when it was released, it was our “ultimate” road bike. It’s been refined and perfected over decades and remains the benchmark that all other titanium bikes are measured against.

Frame weight: 1,295 grams (size medium)
Superform SL 3AL/2.5V titanium tubeset
Aeroform design with bladed seatstays and airfoil-shaped downtube
PF30 bottom bracket - threaded T47 upgrade available
Maximum tire size: 35mm*
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, and wheel combination.

	XS	S	M	M/L	L	XL
Top Tube Length	51.5	52.5	54	56	57.5	59
Head Tube Length	10.1	11.5	12.9	15	17.6	20.7
Seat Tube Angle	74.5°	74.0°	73.5°	73.0°	73.0°	73.0°
Head Tube Angle	72.0°	72.5°	73.0°	73.0°	73.0°	73.0°
BB Drop	7.1	7.1	7.1	7.1	7.1	6.8
Chainstay Length	41.5	41.5	41.5	41.5	41.5	41.5
Wheelbase	97.1	97.6	98.1	99.7	101	102.4
Front Center	56.6	57.1	57.6	59.2	60.5	61.9
Standover Height	71.6	73.4	75.2	77.2	79.5	82
Fork rake	4.5	4.5	4.5	4.5	4.5	4.5
Seat Tube Length	45.5	47.5	49.5	51.5	53.5	55.5
Reach	37	37.5	38	39	39.5	40
Stack	51.5	53	54.5	56.5	59	62
Stem Length	90	90	100	100	110	110
Crank Length	170	170	172.5	172.5	175	175

Xs

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

Ml

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

Xl

188cm 74 - 198cm 76

When you select tubeless-ready wheels and tires, the bike will come from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

If you want confirmation whether your specific wheel/tire selection will come tubeless, feel free to contact us via email or chat.

2x maximum chainring size is 54/40t (Shimano) or 56/43t (SRAM). 1x maximum chainring size is 46t.

The Spezia is designed around 700c x 28mm-32mm tires. It has clearance to fit road tires up to 35mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Ultimate Disc is a road racing bike designed for road racing, crits, and general high-performance road riding.

The Spezia and Ultimate Disc have very similar race-oriented geometry and handling, but the Ultimate frame is slightly more compliant and a bit heavier, making it slightly more comfortable. The Arenberg has more upright, endurance-oriented geometry. The Arenberg is heavier, but provides even more comfort and compliance.

The Ultimate Disc is built with Litespeed's Superform SL tubeset. Superform SL is a superlight titanium tubeset that sets the benchmark for advanced titanium bicycle tubes. Superform SL is an aerospace-grade 3AL/2.5V titanium tubeset that is custom-formed and hand-crafted in-house, allowing us to employ multi-dimensional shaping and variable wall-thickness to minimize weight and maximize performance.
