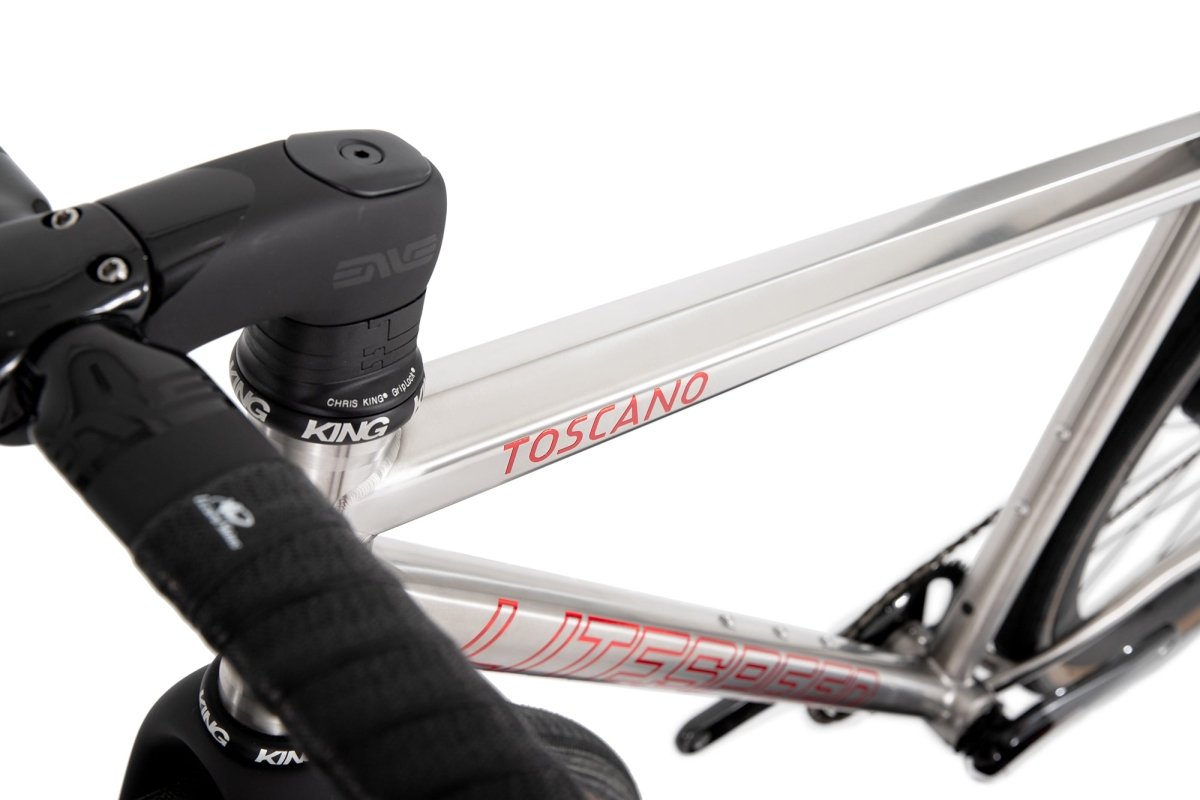

Toscano FI Frame

Read Reviews

The finest titanium gravel experience has arrived. A new frontier in riding pleasure and performance, engineered to push the envelope, every time. Only this time with the cleanest cable presentations in gravel.

$4,550

Lightest Weight Performance Gravel Design
Elite-Tier 6AL/4V Multiform Titanium Top Tube
Cable-Free Cockpit Design
T47i BB - Internal Routed System
Overview Features Geometry Gallery Reviews

Progressive Geometry


The Toscano is a purebred racer, through and through. That means a progressively longer reach paired with a shorter stem across the size range for a contemporary performance gravel experience. With tire clearance of 48mm, there’s plenty of clearance for tire volumes allowing you to go fast and far with pure traction and total comfort.

6AL/4V Grade Titanium Handcrafted Toptube


With the DNA of our premium-tier Spezia road bike, we amalgamate all the performance aspects that are uniquely Litespeed into the Toscano, and our unique sheet-formed top tube is the star. A 6AL/4V flat titanium sheet is handcrafted into a tube, delivering greater tensile strength and lateral stiffness than a standard drawn tube, yet is much lighter.

Full Integration (FI)


The Toscano features one of the cleanest cable presentations in gravel in its standard option. And for those that want the cleanest most aero set up, we offer our “FI” version—with all brake and shift wire routed within the handlebar, stem, headset, fork and kept out in the wind. All brake housing and wires being run cleanly within the frame and around a T47i BB system, we present two incredible Full Integration (FI) options.

Second slide

Exceptional. Every Time. Everywhere.

Toscano FI Frame

$4,550.00 USD
Size Guide

Toscano FI Frame

Features

All the details on frame geometry, wheelsets, components, & more.

  • The Toscano represents Litespeed’s flagship gravel experience, with a geometry and responsive handling that performs exceptionally at speed, with plenty of tire clearance and clean internal cable routing options
  • Lightest production non-integrated titanium disc brake gravel bike—1,285 grams (size medium)*
  • Litespeed’s hallmark sheet-formed 6AL/4V top tube, delivers unmatched stiffness, weight savings, and unparalleled handling advantage
  • Triaxially ovalized downtube shaped to deliver performance benefit, along with drag reduction advantage
  • Butted headtube and bottom bracket for weight savings
  • Dropped drive-side chainstay for increased chainring and tire clearance
  • Functionally ovalized-shaped seatstays
  • Titanium dropouts, head tube, and bottom bracket designed and machined in-house to deliver optimized strength-to-weight performance
  • Universal Derailleur Hanger (UDH) design standard
  • Tire volume capacity between 45-50mm**
  • Shimano Di2 or SRAM eTap AXS-specific design
  • Toptube storage and or rack mount options add-ons available
  • Three bottle boss locations, including under downtube provided standard
  • Threaded T47i bottom bracket standard keeps cables hidden within the bottom bracket shell
  • Bright Brushed frame finish provided standard, with multiple decal color options available
  • TiDize color anodization or etched graphic upgrade available
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Proudly handcrafted in Chattanooga, TN using globally sourced premium materials
  • **Varies based on tire brand, tread, wheel, and fork combination.

Geometry

CM IN

The Toscano is Litespeed's flagship gravel experience with a geometry and responsive handling that performs exceptionally at speed, with plenty of tire clearance and clean internal cable routing.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.4 70.0° 74.5° 16.9 16.7 3.1 39.7 23.5 2.0 28.2 3.5 21.1 14.6 90 170
S 20.9 71.0° 74.0° 17.5 16.7 3.1 39.7 23.5 2.0 28.6 3.5 21.1 15.0 90 170
M 21.9 71.5° 73.5° 18.5 16.7 2.9 40.3 24.0 2.0 29.8 4.6 22.0 15.4 100 172.5
ML 22.4 71.5° 73.5° 19.5 16.7 2.8 40.8 24.5 2.0 31.1 5.6 23.0 15.6 100 172.5
L 23.2 72.0° 73.0° 20.5 16.7 2.7 41.4 25.0 2.0 32.0 6.6 24.2 15.9 110 175
XL 24.0 72.0° 73.0° 21.7 16.7 2.7 42.2 25.9 2.0 33.3 8.1 25.2 16.3 110 175
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 51.7 70.0° 74.5° 43.0 42.5 7.8 100.8 59.6 5.0 71.7 8.8 53.5 37.0 90 170
S 53.2 71.0° 74.0° 44.5 42.5 7.8 100.9 59.6 5.0 72.7 8.8 53.5 38.0 90 170
M 55.5 71.5° 73.5° 47.0 42.5 7.4 102.4 61.0 5.0 75.7 11.6 56.0 39.0 100 172.5
ML 56.8 71.5° 73.5° 49.5 42.5 7.1 103.7 62.3 5.0 79.0 14.3 58.5 39.5 100 172.5
L 59.0 72.0° 73.0° 52.0 42.5 6.8 105.1 63.6 5.0 81.3 16.8 61.5 40.5 110 175
XL 61.0 72.0° 73.0° 55.0 42.5 6.8 107.3 65.7 5.0 84.5 20.5 64.0 41.5 110 175

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
