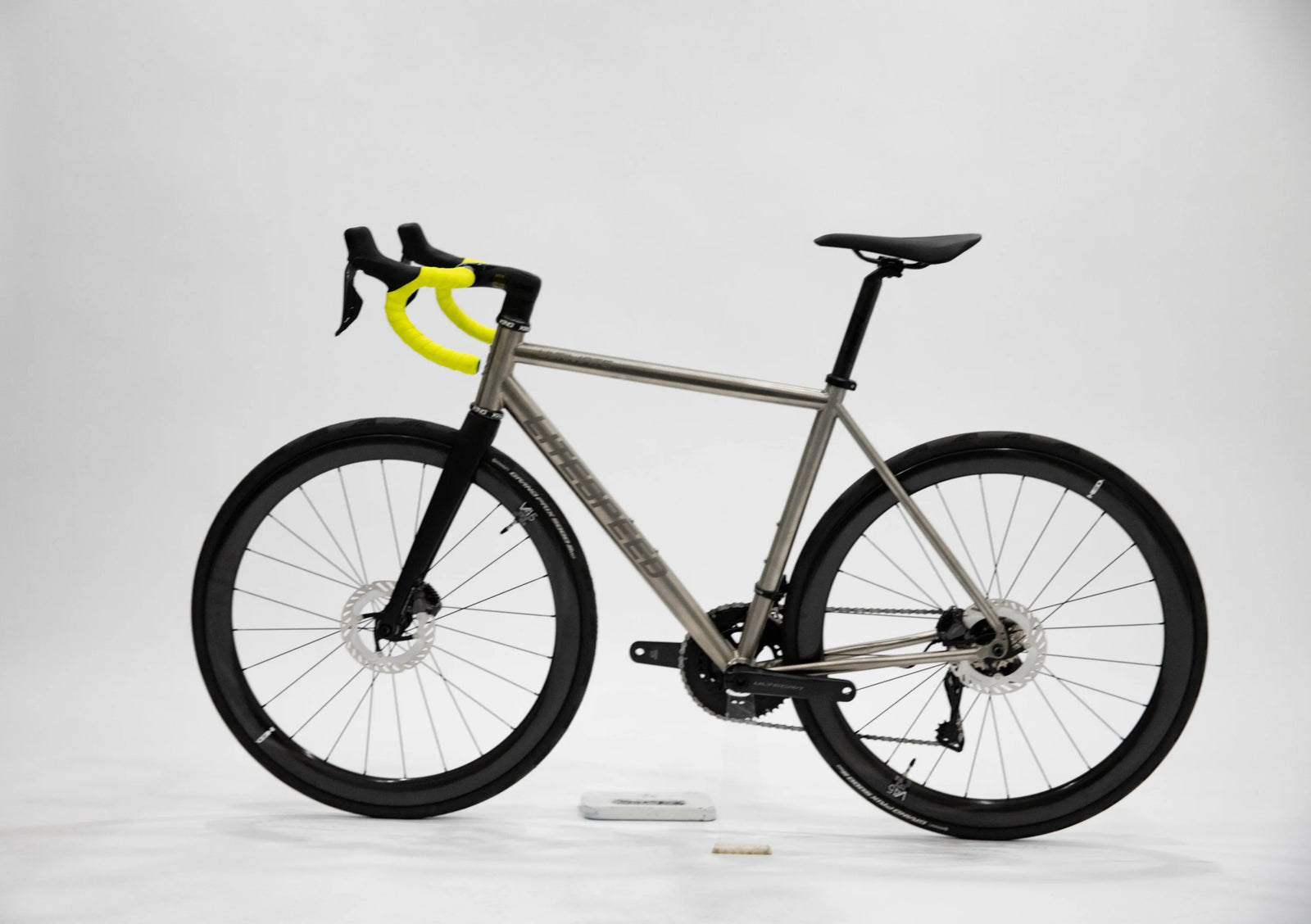

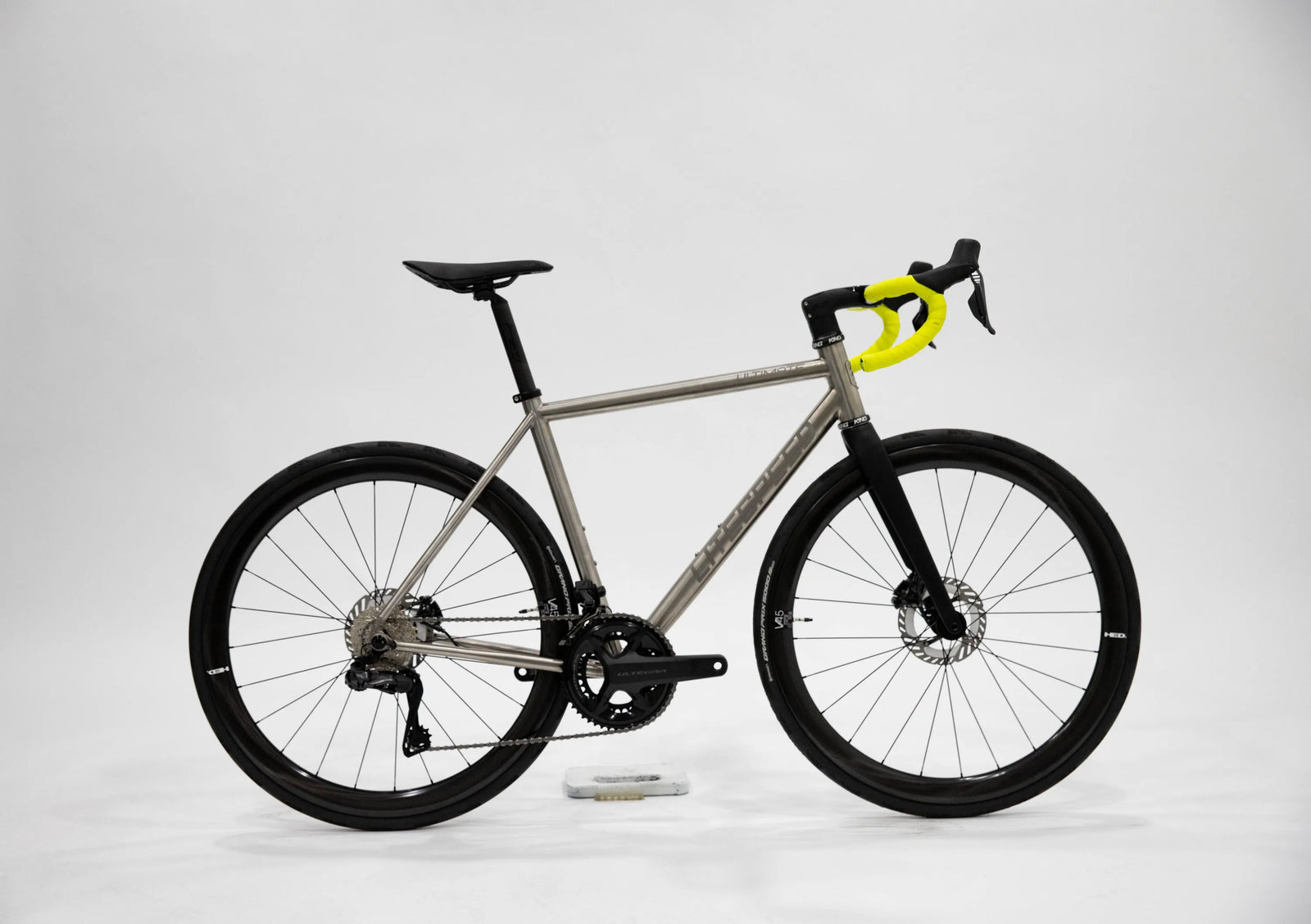

ULTIMATE FI ULTEGRA DI2 12 SPD| SIZE ML

Name: Ultimate Fi Ultegra Di2 12 Spd| Size ML
Brand: Litespeed Bicycles
Price: 6599.0 USD
Availability: InStock

Only One Available

$6,599.00 USD $6,599.00 MSRP $9,448.00

Ultimate Disc FI. (ML, Etched Finish, Ultegra Di2 12 Spd, HED Vanquish V45, Litespeed FI Road, Neon Yellow, Chris King Aeroset 3 - Matte Black, Chris King Threadfit T47 24i - Matte Black, Fizik Vento Argo R5 S-Alloy 140 Black, ENVE Aero Stem, Chris King Threadfit T47 24i - Matte Black)

In stock Out of stock

EXPLORE THE DETAILS

Frame & Fork Specs

Frame

Frame Material	Superform SL 3AL/2.5V Titanium Tubeset
Frame Weight	1,295g (Size M)
BB Standard	PF30 (T47 Optional Upgrade)
Seatpost Diameter	31.6mm
Derailleur Hanger	UDH
Front Derailleur Mount	34.9mm Clamp-on
Cable Routing	Semi-Integrated

Axle Specs

Front Spacing	12x100mm
Front Axle Spec	M12 x 1.5, 120-125mm
Rear Spacing	12x142mm
Rear Axle Spec	M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (2x - Shimano)	54/40t
Max Chainring Size (2x - SRAM)	56/43t
Max Chainring Size (1x)	46t

Brakes

Rotor Max Size (Front)	160mm
Rotor Max Size (Rear)	160mm

Fork

Fork Offset	47mm
Rigid Fork Length	381mm

Tire Clearance

Max Tire Size	700 x 35mm

Mounts

Downtube Water Bottle Bolts	2
Seattube Water Bottle Bolts	2
Rack Mount	No


Size	XS	S	M	M/L	L	XL
A - Stack	51.5	53	54.5	56.5	59	62
B - Reach	37	37.5	38	39	39.5	40
C - Standover Height (cm)	71.6	73.4	75.2	77.2	79.5	82
D - Top Tube Length (cm) virtual horizontal	51.5	52.5	54	56	57.5	59
E - Seat Tube Angle	74.5°	74.0°	73.5°	73.0°	73.0°	73.0°
F - Seat Tube Length (cm)	45.5	47.5	49.5	51.5	53.5	55.5
G - Head Tube Angle	72.0°	72.5°	73.0°	73.0°	73.0°	73.0°
H - Head Tube Length (cm)	10.1	11.5	12.9	15	17.6	20.7
I - BB Drop (cm)	7.1	7.1	7.1	7.1	7.1	6.8
J - Front Center (cm)	56.8	57.3	57.8	59.4	60.7	62.1
K - Chainstay Length (cm)	41.5	41.5	41.5	41.5	41.5	41.5
L - Wheelbase (cm)	97.3	97.8	98.3	99.9	101.2	102.6
M - Fork Offset (cm)	4.7	4.7	4.7	4.7	4.7	4.7
N - Trail (cm w/ 30mm tire)	6.3	5.9	5.6	5.6	5.6	5.6

147cm 58 - 157cm 62

157cm 62 - 165cm 66

165cm 66 - 175cm 69

173cm 68 - 180cm 71

178cm 71 - 188cm 74

188cm 74 - 198cm 76

When you select tubeless-ready wheels and tires, the bike will come from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

If you want confirmation whether your specific wheel/tire selection will come tubeless, feel free to contact us via email or chat.

2x maximum chainring size is 54/40t (Shimano) or 56/43t (SRAM). 1x maximum chainring size is 46t.

The Spezia is designed around 700c x 28mm-32mm tires. It has clearance to fit road tires up to 35mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Ultimate Disc is a road racing bike designed for road racing, crits, and general high-performance road riding.

The Spezia and Ultimate Disc have very similar race-oriented geometry and handling, but the Ultimate frame is slightly more compliant and a bit heavier, making it slightly more comfortable. The Arenberg has more upright, endurance-oriented geometry. The Arenberg is heavier, but provides even more comfort and compliance.

The Ultimate Disc is built with Litespeed's Superform SL tubeset. Superform SL is a superlight titanium tubeset that sets the benchmark for advanced titanium bicycle tubes. Superform SL is an aerospace-grade 3AL/2.5V titanium tubeset that is custom-formed and hand-crafted in-house, allowing us to employ multi-dimensional shaping and variable wall-thickness to minimize weight and maximize performance.
