Name: Toscano Frame
Brand: Litespeed Bicycles
SKU: TOSCANO-FRAME
Price: 4295.0 USD
Availability: InStock

Toscano Frame

See the Toscano Frame overview

Component requests

Note any additional requests here

Your total:

YOUR BUILD HIGHLIGHTS

LIFETIME WARRANTY

Ride with peace of mind knowing that your Litespeed bike is covered for life by our rider-first warranty.

Learn more

EASY FINANCING

Turn your dream bike into reality with easy financing, quick approvals, and low monthly payments that fit your budget.

Learn more

EXPERT HELP

Have questions? Our team of experts is ready and waiting to help. Simply call, email, or chat with us and get the answers you seek.

Learn more

PROGRESSIVE GEOMETRY

The Toscano is a purebred racer, through and through. That means a progressively longer reach paired with a shorter stem across the size range for a contemporary performance gravel experience. With tire clearance of 48mm, there’s plenty of clearance for tire volumes allowing you to go fast and far with pure traction and total comfort.

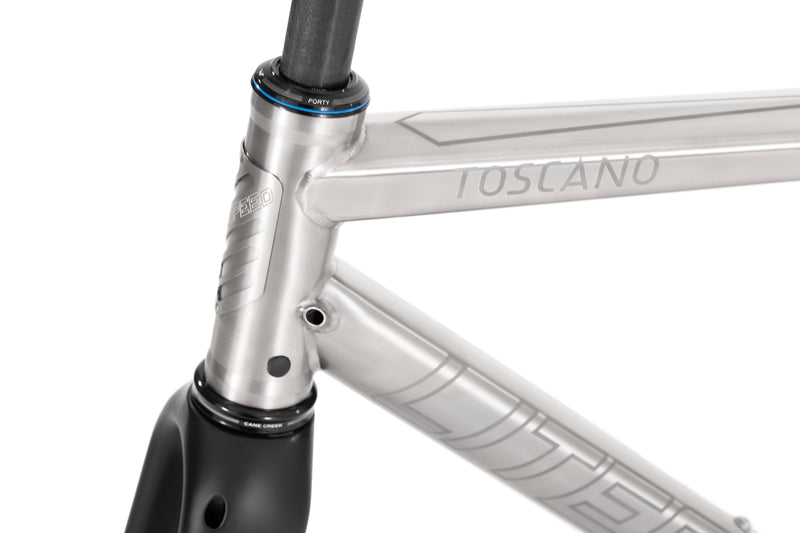

6AL/4V TITANIUM HANDCRAFTED TOPTUBE

With the DNA of our premium-tier Spezia road bike, we amalgamate all the performance aspects that are uniquely Litespeed into the Toscano, and our unique sheet-formed top tube is the star. A 6AL/4V flat titanium sheet is handcrafted into a tube, delivering greater tensile strength and lateral stiffness than a standard drawn tube, yet is much lighter.

SIZE TUNED TUBING

Every frame features tube diameters and wall thicknesses tuned to each specific frame size, as well as for the rigorous demands of gravel riding. Elegant elements you don’t see on other titanium bikes—an externally-butted headtube and bottom bracket, cosmetic elements like a badged headtube option, and a triaxially shaped downtube designed to deliver performance and aero advantages.

EXPLORE THE DETAILS

The Toscano is Litespeed’s flagship gravel race bike, with lower weight, more stiffness, and responsive handling that performs exceptionally at speed, plus plenty of tire clearance and clean internal cable routing options.

Frame weight: 1,360 grams (size medium)
Sheet-formed 6AL/4V titanium top tube
Superform SL 3AL/2.5V titanium tubeset
Aeroform design with a truncated airfoil-shaped downtube
Suspension-corrected geometry
PF30 bottom bracket - threaded T47 upgrade available
Universal Derailleur Hanger (UDH)
Maximum tire size: 50mm*
Shimano Di2 or SRAM eTap AXS-specific design
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, and wheel combination.

	XS	S	M	M/L	L	XL
Top Tube Length	51.7	53.2	55.5	56.8	59	61
Head Tube Length	9.2	9.2	9.7	12.4	14.9	18.6
Seat Tube Angle	74.5°	74.0°	73.5°	73.5°	73.0°	73.0°
Head Tube Angle	70.0°	71.0°	71.5°	71.5°	72.0°	72.0°
BB Drop	7.8	7.8	7.4	7.4	6.8	6.8
Chainstay Length	43.5	43.5	43.5	43.5	43.5	43.5
Wheelbase	101.9	101.9	103.4	104.7	106.2	108.3
Front Center	59.6	59.6	61	62.3	63.6	65.7
Fork rake	5	5	5	5	5	5
Seat Tube Length	43	44.5	47	49.5	52	55
Reach	36.4	37.3	39	39.5	40.5	41.5
Stack	53.5	53.5	56	58.5	61.5	64
Stem Length	90	90	100	100	110	110
Crank Length	170	170	172.5	172.5	175	175

Xs

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

Ml

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

Xl

188cm 74 - 198cm 76

All Litespeed gravel bikes come from the factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

Fork choice will depend on your riding preferences and terrain.

A gravel suspension fork will add comfort and confidence on rough terrain, but it will weigh more than a rigid carbon fork, and it may feel less efficient (due to flex, weight, or pedal bob) on smooth terrain.

A rigid fork is lighter, and it also provides a bit more tire clearance and mounting options for extra gear and bags, but it will transmit more shock from impacts and vibration from rough roads.

For more information on gravel suspension forks, read our detailed thoughts on gravel suspension here.

The Toscano is a gravel bike designed for gravel racing and high-speed gravel riding. It is ideal for gravel riders and racers who want the lightest and fastest titanium gravel bike possible.

The Ultimate G2 has similar geometry and handling, but its titanium tubeset is slightly more compliant for more all-around use. The Flint has a more relaxed, adventure-oriented geometry, more tire clearance, and a different tubeset, which makes it slightly heavier but provides more robustness and affordability.

1x maximum chainring size is 46t. 2x maximum chainring size is 48/31t.

The Toscano has clearance to fit gravel tires up to 700c x 50mm wide with a 1x drivetrain.

With a 2x drivetrain, tire clearance is reduced to 700c x 48mm due to the front derailleur.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Toscano is built with Litespeed's Superform SL 6/4 tubeset. Superform SL 6/4 is a superlight titanium tubeset that combines our 3AL/2.5V titanium Superform SL tubeset with a sheet-formed titanium top tube hand-crafted from a single ultra-thin sheet of 6AL/4V titanium. This is significantly lighter than a standard 3AL/2.5V top tube, while providing greater tensile strength and lateral stiffness for racing applications.
