LI2 ULTEGRA DI2 11 SPD | SIZE M

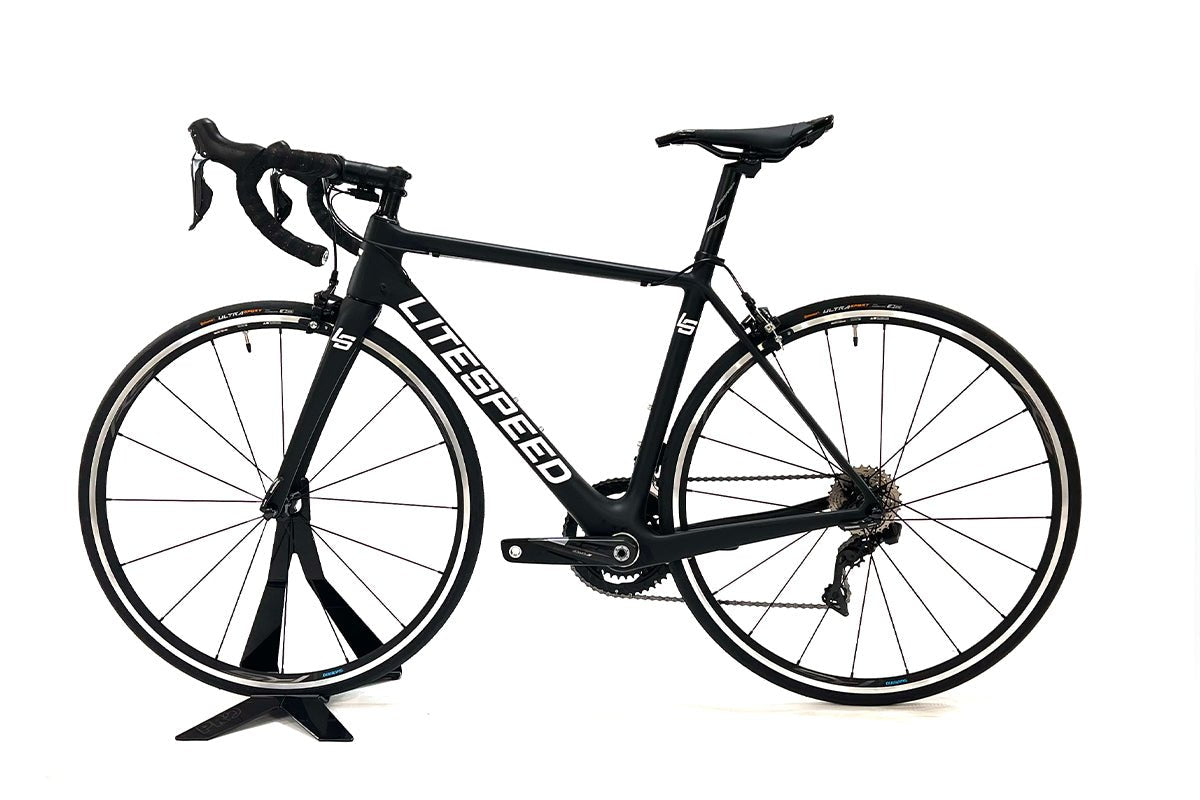

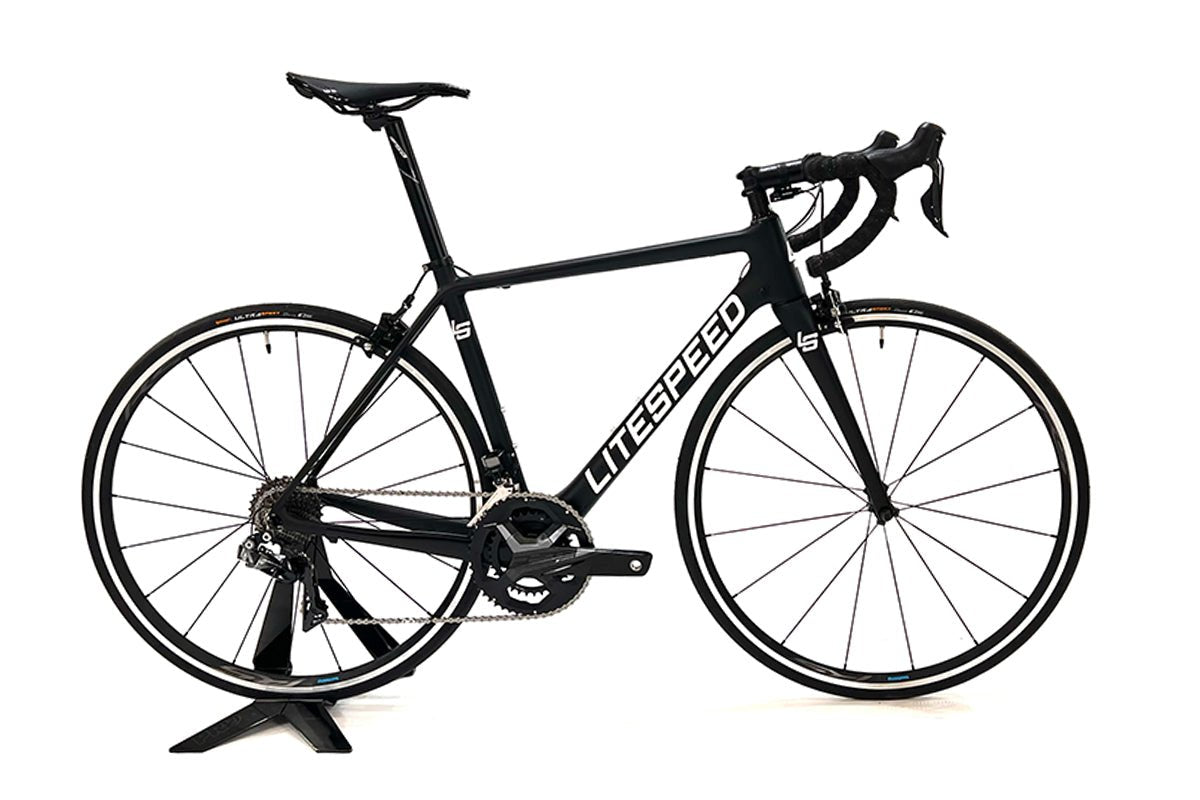

LS-185 | 2015 Li2 Ultegra Di2 11 spd with FSA SL-K Carbon crank, Shimano RS-300 wheels, custom matte black paint and matte white graphics, Size M
Li2 Carbon Road Bike
In theory, symmetry is beautiful. In practice, however, it doesn’t always yield the best possible bike. So the L-Series frames incorporate multiple asymmetric, shape-specific design features that enhance stability and performance.
At the front of the frame, Litespeed’s proprietary Quadrilateral System creates a box shape that resists braking forces and flex from both road and rider. The asymmetric down tube/seat tube junction provides efficiency through the drivetrain. And greater diameters throughout the chainstays, seat tube and down tube help eliminate bottom bracket flex — for maximum power to the pedals.
The Li2 is built from 30T carbon fiber. All of the L-Series bikes are formed with our own Reactive Pressure Molding (RPM) construction, BB386 EVO technology — a wide-bearing BB30 system — and a barely UCI -legal 1.125” x 1.5” tapered steerer fork.
Key Features
- 30T carbon fiber
- Size-specific tubing
- IBB386 bottom bracket
- 1.125”x1.5” tapered steerer fork.
- Includes a three-year factory-certified warranty
Geometry
| Size | M |
| Top Tube Length | 54cm |
| Head Tube Angle | 73˚ |
| Seat Tube Angle | 73.5˚ |
| Seat Tube Length | 49.5cm |
| Chainstay Length | 40.5cm |
| BB Drop | 6.9cm |
| Wheelbase | 96.8cm |
| Front Center | 57.3>cm |
| Fork Rake | 4.3cm |
| Standover Height | 75.4cm |
| Head Tube Length | 13cm |
| Stack | 53.6cm |
| Reach | 38.1cm |
