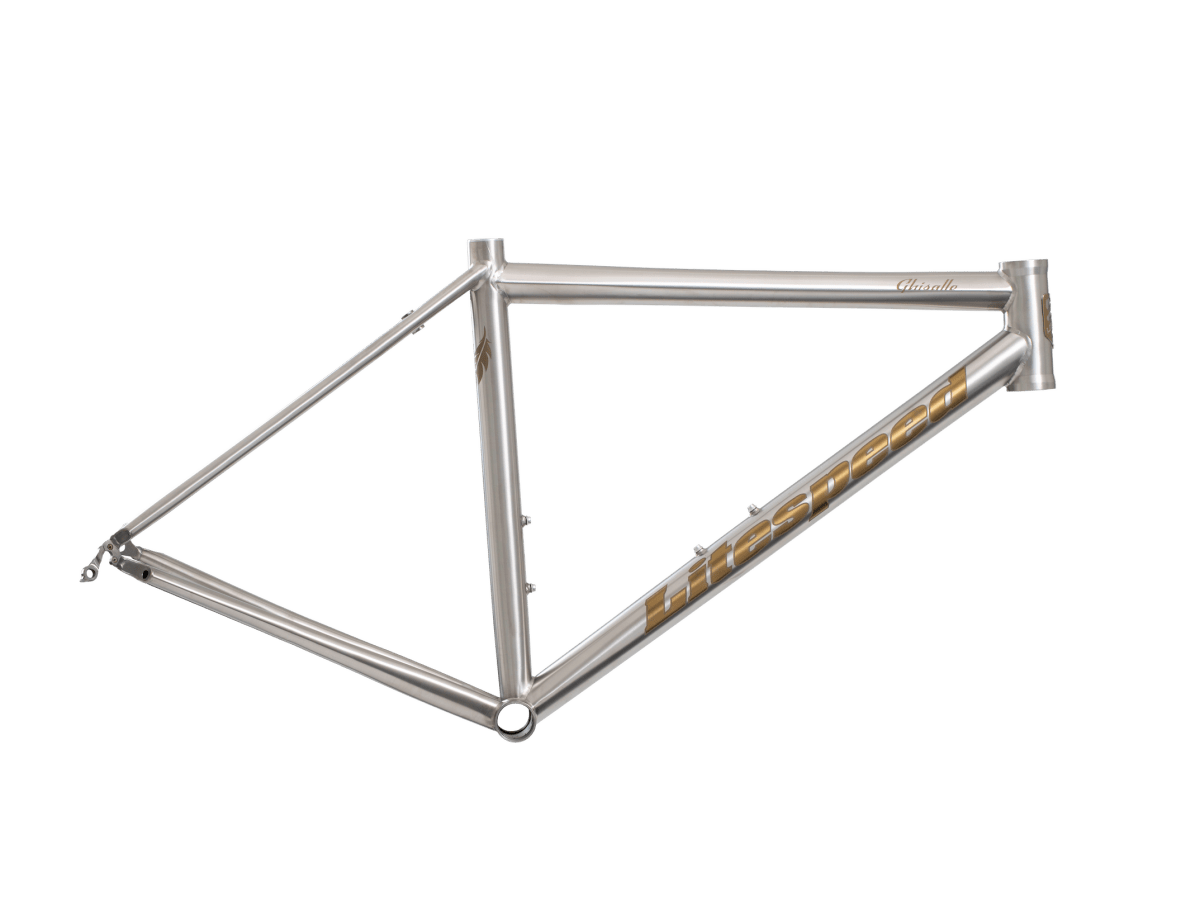

Name: Ghisallo Frame
Brand: Litespeed Bicycles
SKU: GHISALLO-FRAME
Price: 6999.0 USD
Availability: InStock

Ghisallo Frame

See the Ghisallo Frame overview

Component requests

Note any additional requests here

Your total:

YOUR BUILD HIGHLIGHTS

LIFETIME WARRANTY

Ride with peace of mind knowing that your Litespeed bike is covered for life by our rider-first warranty.

Learn more

EASY FINANCING

Turn your dream bike into reality with easy financing, quick approvals, and low monthly payments that fit your budget.

Learn more

EXPERT HELP

Have questions? Our team of experts is ready and waiting to help. Simply call, email, or chat with us and get the answers you seek.

Learn more

EXPLORE THE DETAILS

An alpine symphony—the Ghisallo is built specifically for lightweight climbers who live to conquer the highest mountains. It maintains the spirit of the original with classic rim brakes and the original Ghisallo's 3-piece titanium bottom bracket.

Limited edition frames stamped 1 through 20
Includes a certificate of authenticity with actual measured frame weight
Frame weight: 871 grams (size medium)
6.5 kg / 14 lb 6 oz complete bike weight (size medium)
Recommended 85 kg / 187 lb rider weight limit
Superform FW 3AL/2.5V titanium tubing
Original Ghisallo 3-Piece Welded threaded BSA bottom bracket
Maximum tire size: 28mm*
Shimano Di2 or SRAM eTap AXS-specific design
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, wheel, and fork combination.

	XS	S	M	M/L	L	XL
Top tube length (cm)	51.4	52.9	54.5	55.6	57	59
Head tube length (cm)	8.8	10.5	12.4	14.5	17.6	21
Seat tube length (cm)	40	43	46	49.5	53	57
Head tube angle	71	72	73	73	73	73
Bb drop (cm)	7.4	7.4	7.1	7.1	7.1	6.8
Chainstay length (cm)	41	41	41	41	41	41
Wheelbase (cm)	97.8	98.1	98.7	98.8	100.2	101.8
Front center (cm)	57.9	58.2	57.8	58.9	60.3	61.8
Standover height (cm)	67.6	70.3	73.1	76.1	79.5	83.4
Fork offset (cm)	5	5	4.3	4.3	4.3	4.3
Reach	37.5	38	38.5	39	39.5	40
Stack	50	52	54	56	59	62

Xs

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

Ml

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

Xl

188cm 74 - 198cm 76

2x maximum chainring size is 54/40t (Shimano) or 56/43t (SRAM). 1x maximum chainring size is 50t.

The Ghisallo is designed around 700c x 25mm-28mm tires. It has clearance to fit road tires up to 28mm wide.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The Ghisallo features extensive titanium tube manipulation to achieve its incredibly low weight. The titanium wall thicknesses are precisely controlled along the full length of each tube to bring down weight. For optimal performance and handling, these tubes must be designed around riders of a certain weight.

Riders heavier than the 85kg/187lb weight limit may experience excessive frame flex, which will lead to a suboptimal riding experience. If you're over the Ghisallo's weight limit, we suggest trying our Spezia, which is nearly as light, significantly stiffer, and has no rider weight limit.

The Ghisallo is built with Litespeed's Superform FW tubeset. Superform FW is a premier featherweight titanium tubeset used exclusively on the world’s lightest titanium bikes: the Coll dels Reis and the Ghisallo. Superform FW is an aerospace-grade 3AL/2.5V titanium tubeset featuring extreme multi-dimensional shaping and wall-thickness reduction to maximize both ride quality and weight reduction.
