FLINT FRAME (DI2/AXS SPECIFIC)| SIZE S

Name: Flint Frame (Di2/AXS Specific)| Size S
Brand: Litespeed Bicycles
Price: 2250.0 USD
Availability: InStock

$2,250.00 USD $2,250.00 MSRP $3,844.00

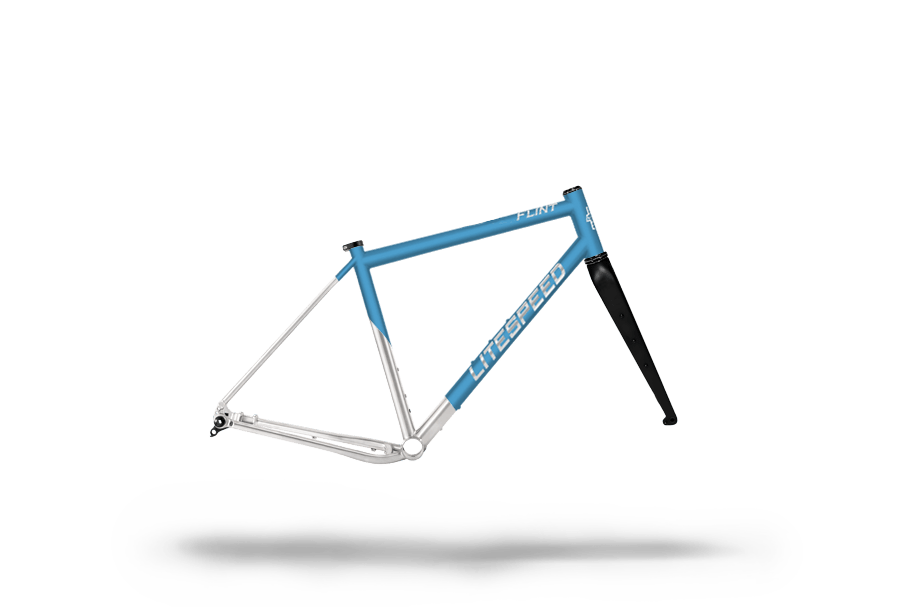

Flint 1x specific frame, Cane Creek Headset & Litespeed fork with accessory mounts ano blast audrey blue graphics, Di2/AXS Specific - size small

Note: Demo Bikes do not come with Bottle Cages or Pedals

In stock Out of stock

EXPLORE THE DETAILS

Frame & Fork Specs

Frame

Frame Material	Superform SL 3AL/2.5V Titanium Tubeset
Frame Weight	1,410g (Size M)
BB Standard	PF30 (T47 Optional Upgrade)
Seatpost Diameter	31.6mm
Derailleur Hanger	UDH
Front Derailleur Mount	34.9mm Clamp-on
Cable Routing	Semi-Integrated

Axle Specs

Front Spacing	12x100mm
Front Axle Spec	M12 x 1.5, 120-125mm
Rear Spacing	12x142mm
Rear Axle Spec	M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (1x)	42t
Max Chainring Size (2x)	48/31t

Brakes

Rotor Max Size (Front)	180mm*
Rotor Max Size (Rear)	160mm

Fork

Fork Offset	50mm
Rigid Fork Length	420mm

Tire Clearance

1x	54mm*
2x	50mm*

Mounts

Downtube Water Bottle Bolts	2
Seattube Water Bottle Bolts	2
Toptube Bag Mount	Optional Upgrade
Downtube Accessory Mount	Yes
Rack Mount	Optional Upgrade

* Spec may vary with choice of front suspension.

** Spec may vary based on choice of front derailleur.


Size	XS	S	M	M/L	L	XL
A - Stack	54.9cm	55cm	57.5cm	60cm	62.5cm	65cm
B - Reach	35.5cm	37cm	38cm	39cm	39.5cm	40cm
C - Standover Height	71.4cm	73cm	75.8cm	78.4cm	81.2cm	83.8cm
D - Top Tube Length (Virtual Horizontal)	50.3cm	52.3cm	54.5cm	56.8cm	58cm	60cm
E - Seat Tube Angle	75.0°	74.5°	74.0°	73.5°	73.5°	73.0°
F - Seat Tube Length	43cm	44.5cm	47cm	49.5cm	52cm	55cm
G - Head Tube Angle	69.0°	69.5°	70.0°	70.5°	71.0°	71.5°
H - Head Tube Length	9.2cm	9.2cm	11.7cm	14.2cm	16.8cm	19.2cm
I - BB Drop	7.8cm	7.8cm	7.6cm	7.6cm	7.4cm	7.4cm
J - Front Center	59.4cm	60.5cm	62cm	63.3cm	64.2cm	64.9cm
K - Chainstay Length	43.7cm	43.7cm	43.7cm	43.7cm	43.7cm	43.7cm
L - Wheelbase	101.9cm	103cm	104.5cm	105.9cm	106.8cm	107.5cm
M - Fork Offset	5cm	5cm	5cm	5cm	5cm	5cm
N - Trail (w/ 45mm tire)	8.5cm	8.1cm	7.8cm	7.4cm	7.1cm	6.8cm

147cm 58 - 157cm 62

157cm 62 - 165cm 66

165cm 66 - 175cm 69

173cm 68 - 180cm 71

178cm 71 - 188cm 74

188cm 74 - 198cm 76

All Litespeed gravel bikes come from the factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

Fork choice will depend on your riding preferences and terrain.

A gravel suspension fork will add comfort and confidence on rough terrain, but it will weigh more than a rigid carbon fork, and it may feel less efficient (due to flex, weight, or pedal bob) on smooth terrain.

A rigid fork is lighter, and it also provides a bit more tire clearance and mounting options for extra gear and bags, but it will transmit more shock from impacts and vibration from rough roads.

For more information on gravel suspension forks, read our detailed thoughts on gravel suspension here.

The Flint is our most adventure-oriented gravel bike, with relaxed geometry, more tire clearance, and our most robust and affordable tubeset. It's ideal for gravel riders who want a do-it-all gravel bike for everything from bikepacking to racing.

The Toscano and Ultimate G2 have slightly more race-oriented construction, geometry, and handling, and they are built with a lighter and stiffer titanium tubeset, which increases cost.

The Flint has clearance to fit gravel tires up to 700c x 54mm wide with a 1x drivetrain.

With a 2x drivetrain, tire clearance is reduced to 700c x 50mm due to the front derailleur.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The Flint is built with Litespeed's Pure LW tubeset. Pure LW is a lightweight titanium tubeset made from aerospace-grade 3AL/2.5V titanium. It is formed, butted, and bent in-house just like our Superform tubes, but omits the multi-dimensional shaping and variable wall-thickness to reduce cost. Pure LW is the ideal choice for bikes that prioritize comfort and durability, while remaining competitively lightweight.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

1x maximum chainring size is 42t. 2x maximum chainring size is 48/31t.
