Pinhoti III Frame

Name: Pinhoti III Frame
Brand: Litespeed Bicycles
Price: 2449.0 USD
Availability: InStock
Rating: 5.00 (6 reviews)

Big miles. Big Adventure. Big smiles. From marathon racing to weekend shredding, the Pinhoti III is a trail hardtail poised to work hard and play hard.

Component requests

Note any additional requests here

Your total:

USD

YOUR BUILD HIGHLIGHTS

MORE CONFIDENCE, MORE AGILITY, MORE COMFORT, MORE FUN

We’ve updated the geometry from the original Pinhoti to deliver confidence that allows you to go with open, reckless abandon. Tubeset shaping enhances comfort for the long ride. As trail riding has evolved, our engineers got more creative, and did a complete makeover, modernizing our signature trail model.

DESIGNED AND BUILT FOR THE NEXT TRAIL

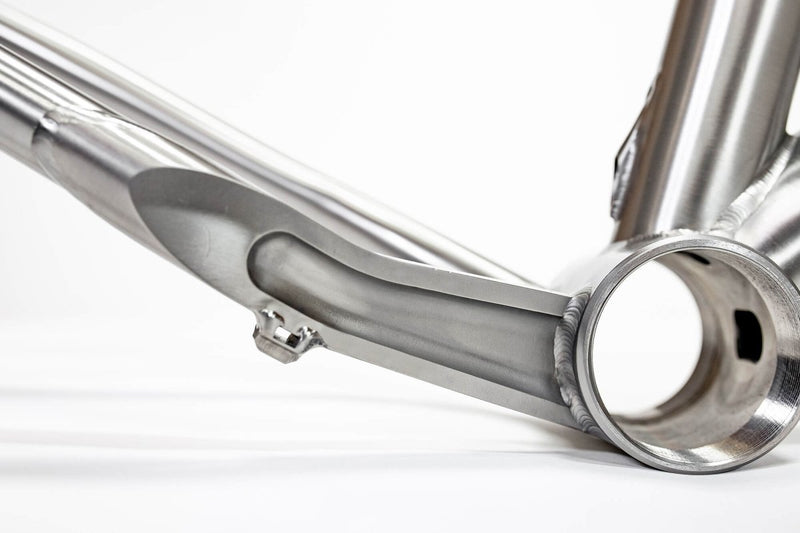

To accommodate for a wide range of tire and chainring clearance, the Pinhoti III employs an asymmetric dropped chainstay receiving a striking new CNC-machined titanium chainstay yoke.

TUBE SHAPING DESIGNED FOR TRAIL SMASHING

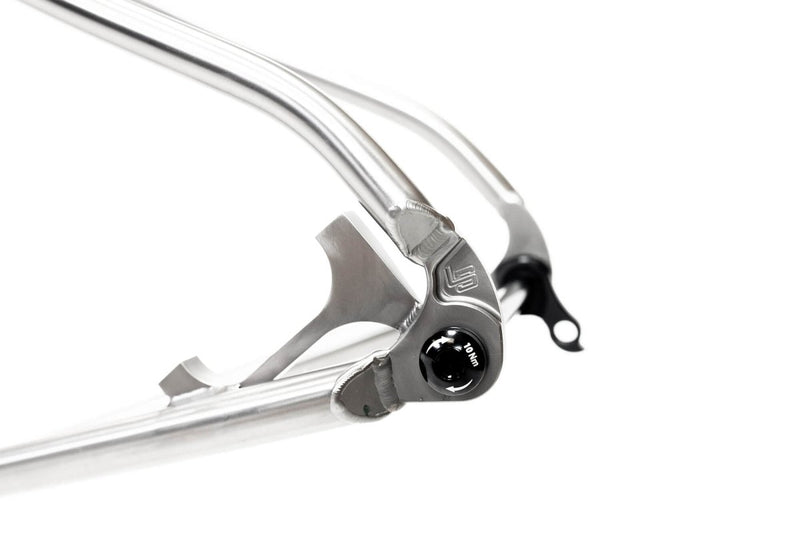

The Pinhoti III gains a whole new range of tube shaping. From curves of the downtube and seattube, to the subtle shaping along the stays, all tubesets have been updated in the interest of performance gains, namely greater vibration damping capacity.

Titanium Pinhoti III Frame - Litespeed Bicycles

LIFETIME WARRANTY

Ride with peace of mind knowing that your Litespeed bike is covered for life by our rider-first warranty.

Learn more

EASY FINANCING

Turn your dream bike into reality with easy financing, quick approvals, and low monthly payments that fit your budget.

Learn more

EXPERT HELP

Have questions? Our team of experts is ready and waiting to help. Simply call, email, or chat with us and get the answers you seek.

Learn more

THE LITESPEED ADVANTAGE

AS LOW AS 0% APR OVER 12 MONTHS*

Turn your cycling dreams into reality with easy financing and low monthly payments. Get approved quickly with no effect on your credit.

Learn More

EXPLORE THE DETAILS

The Pinhoti is the trail hardtail in its ideal form, built with low weight and capable geometry so you can crush climbs and shred descents, all with the unmatched durability and ride quality of Litespeed titanium.

Frame weight: 1,649 grams (size medium)
Pure LW 3AL/2.5V titanium tubeset
Optimized for 120mm to 140mm fork travel
PF30 bottom bracket - threaded T47 upgrade available
Boost 12 x 148mm rear thru axle
Sizes L and XL include seatube bottle mounts
Maximum tire size: 29 x 2.5" / 27.5 x 3.0"
Proudly handcrafted in Chattanooga, TN, using globally sourced premium materials

*Varies based on tire brand, tread, wheel, and fork combination.

	XS	S	M	L	XL
A - top tube length	56.6	58.7	62	64.8	68.1
B - head tube angle	67.0°	67.0°	67.5°	67.5°	67.5°
C - seat tube angle	74.5°	74.5°	74.0°	74.0°	73.5°
D - seat tube length	35.6	35.6	40.6	45.7	50.8
E - chainstay length	42.9	42.9	42.9	42.9	42.9
F - bb drop	5.71	5.71	5.71	5.71	5.71
G - wheelbase	110	113	115	118	121
H - front center	68.1	70.6	72.6	75.4	78.5
I - fork rake	4.4	4.4	4.4	4.4	4.4
J - standover height	69.9	71.4	75.7	80	84.1
K - head tube length	10.1	10.4	10.7	11.9	13
L - stack	60	63.5	64	65	66
M - reach	40	41	43.5	46	48.5
Stem length (mm)	70	70	70	70	70
Crank length (mm)	170	170	170	175	175

Xs

152cm 60 - 165cm 64

S

162cm 63 - 174cm 67

M

174cm 67 - 180cm 71

L

180cm 71 - 192cm 75

Xl

189cm 74 - 198cm 77

The Pinhoti III has clearance to fit mountain bike tires up to 29" x 2.5” or 27.5" x 3.0” wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Pinhoti III is built with Litespeed's Pure LW tubeset. Pure LW is a lightweight titanium tubeset made from aerospace-grade 3AL/2.5V titanium. It is formed, butted, and bent in-house just like our Superform tubes, but omits the multi-dimensional shaping and variable wall-thickness to reduce cost. Pure LW is the ideal choice for bikes that prioritize comfort and durability, while remaining competitively lightweight.
