Fully-Integrated Premium Performance Road

Spezia FI Frame

Read Reviews

The finest-performing titanium road bike just got tidier—and more aero. The Spezia FI represents our pinnacle performance experience—with full integration. Wires and housing are routed through the bars, stem, and frame and protected from the wind and anything that might snag them.

LIMITED TIME: GET 25% OFF!

AS LOW AS $4,087.50!

Lightest Weight Performance Road Design
Elite-Tier Shaped 6AL/4V Multiform Top Tube
Cable-Free Cockpit Design
T47i BB - Internal Routed System
Overview Features Geometry Gallery Reviews

The Technology


The Spezia brings aerospace-grade titanium road bike construction to its absolute performance zenith. Our lightest disc brake road model—over 200 grams lighter than any other titanium disc brake road bike made today. All Spezia tubesets have wall thicknesses adjusted in-house to meet exacting size-specific parameters and precise weight standards.

Advantage of Modern Performance


Every advantage that the Spezia represents is on full display; from the externally butted headtube to shaping. It’s all there for you to behold. The Spezia is finished with true modern performance geometry, a tire clearance of 35mm, and lowered chainstays.

Fully Integrated


The Spezia FI represents our pinnacle performance experience—with full integration. Wires and housing are routed through the bars, stem, and frame and protected from the wind.

Second slide

Amplified—and Aero

Spezia FI Frame

$5,450.00 USD
Size Guide

Spezia FI Frame

Features

All the details on frame geometry, wheelsets, components, & more.

  • 6AL/4V top tube and 3AL/2.5V titanium frame with size-specific tubesets, each with targeted wall thickness controlled, drawn and tuned per size to attain accurate weight savings and ensure consistent performance

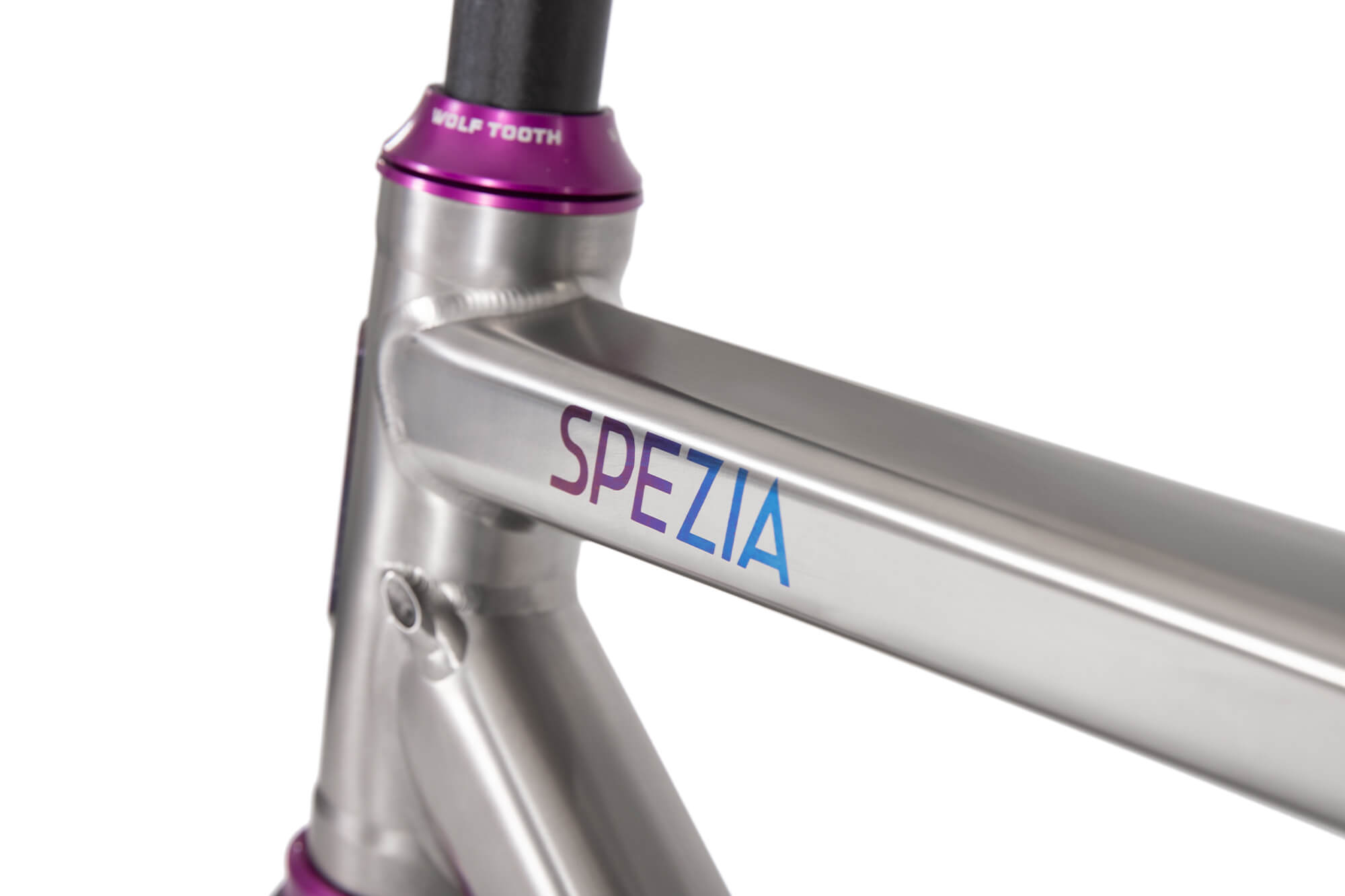

  • Multiform top tube: a high-tensile 6AL/4V sheet-formed tube, delivering unmatched stiffness and unparalleled handling advantage
  • Triaxially ovalized downtube shaped to deliver performance benefit, along with drag reduction advantage
  • Butted headtube and bottom bracket for weight savings
  • Functionally ovalized shaped seatstays
  • Titanium dropouts, shelled two-piece disc brake mount, headtube and bottom bracket designed and CNC machined in-house to deliver optimal strength-to-weight performance
  • Optimized for 25mm to 35mm tires
  • Bright Brushed frame finish provided standard
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Average weight for size medium frame: 1,090 grams
  • Threaded T47i bottom bracket standard keeps cables hidden within the bottom bracket shell

Geometry

CM IN

The Spezia FI is finished in a true modern performance geometry with tire clearance to 35mm, lowered chainstays, a minimally elevated stack for proper ride height, and a snug rear triangle for sweet-spot balance, whether climbing or descending.

  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 20.2 72.0° 74.5° 16.9 16.3 2.8 38.3 22.4 1.7 27.4 4.2 20.5 14.6 90 -
S 20.8 72.5° 74.0° 17.7 16.3 2.8 38.5 22.6 1.8 28.1 4.7 21.1 14.8 90 -
M 21.4 73.0° 73.5° 18.9 16.3 2.8 38.7 22.8 1.8 29.5 5.5 21.9 15.0 100 -
ML 22.1 73.0° 73.5° 20.1 16.3 2.8 39.4 23.5 1.8 30.3 6.5 22.8 15.4 100 -
L 22.8 73.0° 73.25° 21.3 16.3 2.8 40.0 24.1 1.8 31.5 7.7 24.0 15.6 110 -
XL 23.5 73.0° 73.0° 22.4 16.3 2.7 40.6 24.5 1.8 32.9 9.1 25.2 15.7 110 -
  A - Top Tube Length B - Head Tube Angle C - Seat Tube Angle D - Seat Tube Length E - Chainstay Length F - BB Drop G - Wheelbase H - Front Center I - Fork Rake J - Standover Height K - Head Tube Length L - Stack M - Reach Stem Length (mm) Crank Length (mm)
XS 51.4 72.0° 74.5° 43.0 41.5 7.1 97.2 56.8 4.4 69.6 10.6 52.0 37.0 90 -
S 52.8 72.5° 74.0° 45.0 41.5 7.1 97.7 57.3 4.5 71.5 11.9 53.5 37.5 90 -
M 54.4 73.0° 73.5° 48.0 41.5 7.1 98.4 57.9 4.5 75.0 13.9 55.5 38.0 100 -
ML 56.2 73.0° 73.5° 51.0 41.5 7.1 100.2 59.7 4.5 77.0 16.5 58.0 39.0 100 -
L 57.9 73.0° 73.25° 54.0 41.5 7.1 101.6 61.1 4.5 80.0 19.6 61.0 39.5 110 -
XL 59.6 73.0° 73.0° 57.0 41.5 6.8 103.1 62.2 4.5 83.5 23.1 64.0 40.0 110 -

Delivery & Support

Fully build and customize your Litespeed bike from the ground up. Build to your ride and specifications, where we then construct your ride in our shop, and ship direct to you!

×
