Cherohala Frame

Name: Cherohala Frame
Brand: Litespeed Bicycles
Price: 2599.0 USD
Availability: InStock
Rating: 5.00 (7 reviews)

5.00 ( 7 )

The do-it-all master of broken asphalt and unpaved roads, designed for riders who need one bike that is ready for anything.

Component requests

Note any additional requests here

Your total:

USD

YOUR BUILD HIGHLIGHTS

TRULY MADE YOURS

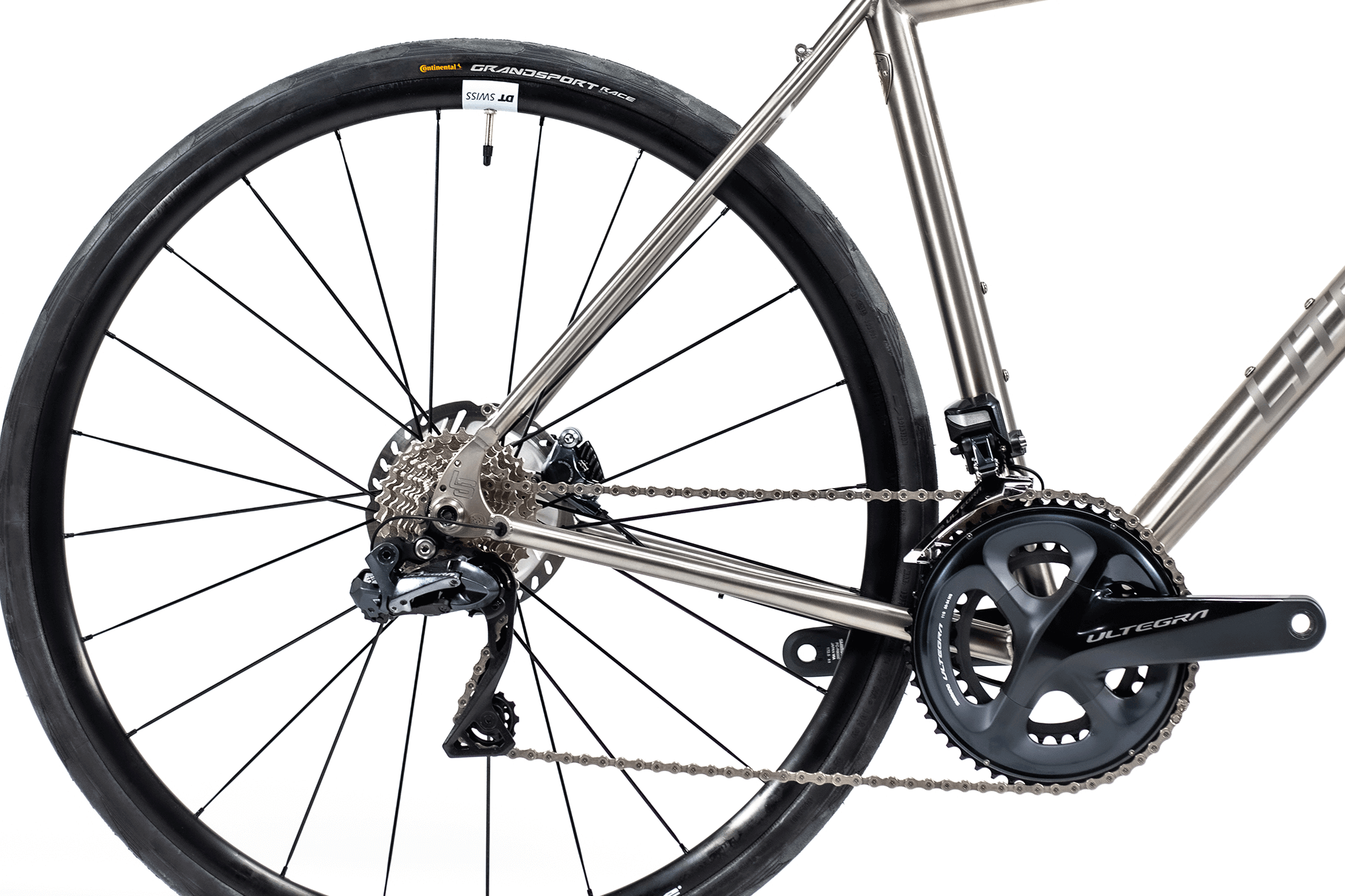

From our etched finish upgrade to bottle boss and fuel storage placement. Prefer a 1x configuration, or a custom paint treatment to set your Cherohala apart? How about option for bigger tires or different gearing? Our team of craftsmen in Tennessee are ready to make your bike truly yours, with fully customizable options available.

ALL ROAD CAPABILITY

Whether it’s loading up for a weekend of bikepacking or a big multi-state traverse, getting lost is what the Cherohala was made for (but we recommend bringing your GPS just in case). In the same breath, it’s very much a road-ready ride that climbs and accelerates well, and handles fast, sweeping descents with aplomb.

TUBESET WALL THICKNESS

With a slightly more relaxed geometry, yet a lively titanium ride that’s poised to play, we’ve achieved day-long ride nirvana in our all-road Cherohala. Sourcing our top-shelf 3Al/2.5V titanium tubing, our team adjusted the tubeset wall thickness, strategically allowing for thin walls wherever possible.

EXPLORE THE DETAILS

The Cherohala is an all-road bike built for long, adventurous rides. It blends the efficiency and comfort of an endurance bike with the tire clearance of a gravel bike to handle the widest mix of terrain.

Frame & Fork Specs

Frame

Frame Material	Pure LW 3AL/2.5V Titanium Tubeset
Frame Weight	1,467g (Size M)
BB Standard	PF30 (T47 Optional Upgrade)
Seatpost Diameter	31.6mm
Derailleur Hanger	UDH
Front Derailleur Mount	34.9mm Clamp-on
Cable Routing	Semi-Integrated

Axle Specs

Front Spacing	12x100mm
Front Axle Spec	M12 x 1.5, 120-125mm
Rear Spacing	12x142mm
Rear Axle Spec	M12 x 1.0, 164-167mm

Drivetrain

Max Chainring Size (2x)	50/34t
Max Chainring Size (1x)	50t

Brakes

Rotor Max Size (Front)	160mm
Rotor Max Size (Rear)	160mm

Fork

Fork Offset	47mm
Rigid Fork Length	381mm

Tire Clearance

Max Tire Size	700 x 38mm

Mounts

Downtube Water Bottle Bolts	2
Seattube Water Bottle Bolts	2
Toptube Bag Mount	Optional Upgrade
Rack Mount	Optional Upgrade


SIZE	S	M	M/L	L	XL
A - STACK	55	57.5	60	62.5	65
B - REACH	37	37.5	38	38.5	39
C - STANDOVER HEIGHT (CM)	73.4	76.9	79.7	82.5	85.8
D - TOP TUBE LENGTH (CM) VIRTUAL HORIZONTAL	52.3	53.4	55.2	57	58.9
E - SEAT TUBE ANGLE	74.5°	74.5°	74.0°	73.5°	73.0°
F - SEAT TUBE LENGTH (CM)	46	49	52	55	58
G - HEAD TUBE ANGLE	71.0°	71.0°	71.5°	72.0°	72.0°
H - HEAD TUBE LENGTH (CM)	10.6	13.2	16.2	18.6	21.7
I - BB DROP (CM)	7.6	7.1	7.1	7.1	6.6
J - FRONT CENTER (CM)	59.1	60.4	61.4	62.2	63.6
K - CHAINSTAY LENGTH (CM)	43	43	43	43	43
L - WHEELBASE (CM)	100.9	102.4	103.4	104.2	105.7
M - FORK OFFSET (CM)	5	5	5	5	5

XS

147cm 58 - 157cm 62

S

157cm 62 - 165cm 66

M

165cm 66 - 175cm 69

ML

173cm 68 - 180cm 71

L

178cm 71 - 188cm 74

XL

188cm 74 - 198cm 76

When you select tubeless-ready wheels and tires, the bike will come from the Litespeed factory with tires set up tubeless with Stan's NoTubes sealant.

If you would like innertubes, you can make a note in the "component request field" on your order, and we will be happy to accommodate.

If you want confirmation whether your specific wheel/tire selection will come tubeless, feel free to contact us via email or chat.

2x maximum chainring size is 50/34t. 1x maximum chainring size is 50t.

The Cherohala is designed around 700c x 35mm-38mm tires. It has clearance to fit road and gravel tires up to 38mm wide.

Every Litespeed titanium frame is hand-built in the USA, in our factory in Chattanooga, Tennessee, by master framebuilders using premium, globally sourced materials.

The average lead time is 3-4 weeks. This is because every Litespeed titanium frame and complete bike is built to order. You will receive email updates informing you when we begin building and assembling your bike, and when it is shipped from our factory.

The Arenberg is an endurance bike designed for long-distance riding, riding on rough roads, and general all-around road riding.

The Cherohala is an all-road bike designed for long-distance riding and riding a mix of paved and unpaved surfaces.

The Arenberg and Cherohala titanium frames are very similar in terms of weight, construction, and compliance. The main difference is that the Arenberg's geometry and handling are designed around 28-35mm road tires, while the Cherohala's geometry and handling are designed around 35-38mm road and gravel tires. The ideal frame will depend on your preferred tire size and riding terrain.

The Cherohala is built with Litespeed's Pure LW tubeset. Pure LW is a lightweight titanium tubeset made from aerospace-grade 3AL/2.5V titanium. It is formed, butted, and bent in-house just like our Superform tubes, but omits the multi-dimensional shaping and variable wall-thickness to reduce cost. Pure LW is the ideal choice for bikes that prioritize comfort and durability, while remaining competitively lightweight.
