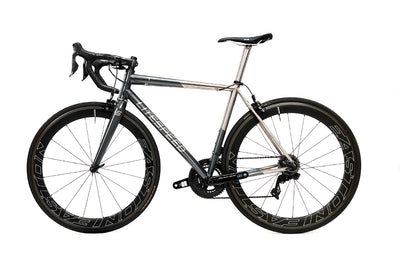

LS-115 | T1sl Rim, Dura-Ace Di2 11 Spd, Easton EC90 Bar/Stem/Wheels, Titanium Seatpost upgrade, Stages Dual Sided PM upgrade, and custom grey paint, Size ML

T1sl High-Performance Road

The lightest production titanium frame featuring highest stiffness-to-weight ratio of any titanium road-bike on the market.

Light makes right.

So say the climbers. The Billy goats. The grimpeurs. Where the air is thin, KOMs are your holy grail. If there’s one thing better than a buoyant ascent up a long climb, it’s being the first to attack the descent…solo.

There’s but one bike to take you to the top: the T1sl.

While the T1SL is Litespeed’s signature lightweight machine, it’s no one-trick pony. Adept at carving corners and holding speed on the flats, T1sl is a no-holds-barred race bike that happens to defy the scales, thanks to decades of our titanium expertise. And for the discerning cyclist, titanium still reigns supreme as the king of lightweight race bike capability. At 995 grams in size small, the T1sl remains the lightest production handmade titanium frame available on the market.

How we make a performance race bike this strong, this stiff, this comfortable and this light is what sets the T1sl apart from all others. It starts with an innovative top tube, handcrafted from a single sheet of aerospace-grade 6AL/4V titanium, shaped into a multi-faceted tapered tube that slashes weight while increasing torsional stiffness.

The bike stays race-day stiff with a pair of oversized, triple-butted asymmetric chainstays designed for unyielding power transfer. The downtube completes the package, oversized and bi-axially ovalized to provide optimal performance and stiffness. At the front, a beautifully engraved 44mm headtube delivers precision handling. With a PF30 bottom bracket, the S1ls compatible with nearly every crankset available. The T1sl accepts caliper brakes only.

To ensure every T1sl is built to precision tolerances that ensure the perfect ride in every size, each frame has size-specific tubesets, guaranteeing consistent performance, regardless if you’re a size XS or XL. We also use the highest-quality titanium available, with our cold-working making it even better. While our competition settles for softer, more easily-processed grades of titanium, we go above and beyond to deliver the most premium cycling-specific tubesets. That NASA comes to us for our materials choice advice is no mistake. And the result speaks for itself.

The finest lightweight race bike available is also fully customizable as well. Choose our standard decal presentation, our complimentary etched finish, even a custom paint upgrade. If you’re looking for a SRAM build, rack or fender mounts, or anything in between, we can accommodate nearly any request, whch may require additional costs and lead times. The options are endless; just call us to make the T1sl a true custom ride.

Curious how we stack up against other brands?

See Comparison Chart


Key Features

  • Check out the features video here
  • High-performance road
  • 6Al/4V titanium brake sheet formed and variably-tapered top tube
  • Aerospace grade titanium top tube, and 3AL/2.5V seat tube, downtube and stays
  • Optimized for clearance up to 25mm tires (most tire/rim combinations)
  • Disc brake version available
  • Triple-butted chainstays
  • Cold-worked shaping for maximum stiffness
  • Replaceable derailleur hanger
  • Bright Brushed Litespeed Finish option and decal option provided standard
  • Full range of custom paint upgrade options available
  • Custom component options available upon request
  • PF30 bottom bracket shell, with T47 bottom bracket upgrade available
  • Frame sizes: XS, S, M, ML, L, XL and custom
  • Average weight for size small frame: 995 grams
  • Handmade in the USA, using globally sourced premium materials, with a three-year factory-certified warranty
  • Delivery options including fully built right to your door with Home.Delivery.Right

  • The T1sl frame features semi-aggressive road geometry designed for riders who prefer a responsive race bike that also allows for an aerodynamic road position.

    Geometry Chart
    Size XS S M M/L L XL
    A Top Tube Length 51.5 52.5 54.0 56.0 57.5 59.0
    B Head Tube Angle 72.0˚ 72.5˚ 73.0˚ 73.0˚ 73.0˚ 73.0˚
    C Seat Tube Angle 74.5˚ 74.0˚ 73.5˚ 73.0˚ 73.0˚ 73.0˚
    D Seat Tube Length 45.5 47.5 49.5 51.5 53.5 55.5
    E Chainstay Length 40.6 40.6 40.6 40.6 40.6 40.6
    F BB Drop 7.1 7.1 7.1 7.1 7.1 6.8
    G Wheelbase 96.1 96.6 97.0 98.6 99.8 101.6
    H Front Center 56.6 57.0 57.4 58.9 60.3 61.6
    I Fork Rake 4.5 4.5 4.5 4.5 4.5 4.5
    J Standover Height 72.2 73.7 75.2 77.2 79.5 81.7
    K Head Tube Length 10.1 11.5 12.9 15.0 17.6 20.7
    L Stack 51.5 53.0 54.5 56.5 59.0 62.0
    M Reach 37.0 37.5 38.0 39.0 39.5 40.0



Litespeed Sizing Chart


Road, Gravel, Cherohala, & City

Frame Size
Rider Height (in)
Rider Height (cm)
4'10” – 5’2”
147 - 157
5’2" – 5’6”
157 - 165
5’6"– 5’9”
165 - 175
5’8” – 5’11”
173 - 180
5'-10” – 6’2”
178 - 188
6’2" – 6'4"
188 - 198

Pinhoti III

Frame Size
Rider Height (in)
Rider Height (cm)
5'0" - 5'4"
152 - 165
5'3" - 5'7"
162 - 174
5'7" - 5'11"
174 - 180
5'11" - 6'3"
180 - 192
6'2"- 6'5"
189 - 198
